24.Install rear fenders and fender flairs.
25.Fill coolant reservoir. Bleed system as required. See
and Cooling System Bleeding, page 2.38.
26.Check and fill engine oil as required. See Engine Oil
Level, page 2.28.
27.Connect the battery. Torque fasteners to
specification.
TORQUE
Battery Fasteners:
60 in-lbs (7 Nm)

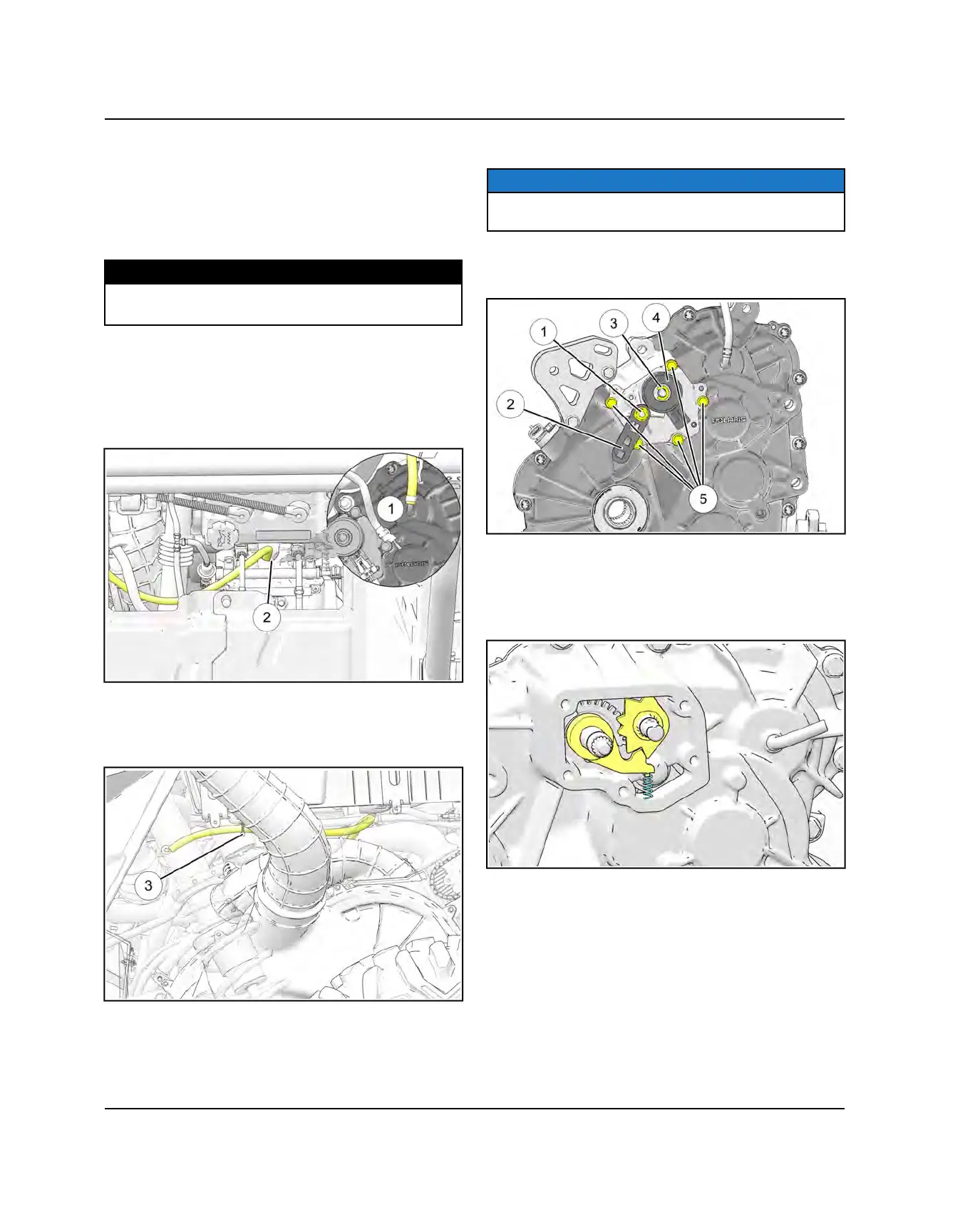

TRANSMISSION VENT LINE ROUTING
The transmission vent line connects to a nipple
q
on the
side of the transmission near the transmission switch.
The vent line routes up through the gap
w
between the
MAG and PTO intake runners.
The line runs parallel with the fuel supply and return lines
and is retained by a zip tie
e
attached to the cargo box
front bracket. The line terminates to open air (does not
terminate to a fitting or hole in the frame).
TRANSMISSION DISASSEMBLY
NOTE
Refer to the exploded view at the end of this chapter as
a reference.
1. Place transmission in high gear.
2. Drain and properly dispose of transmission fluid.
3. Remove bell crank nut
q
and bell crank
w
.
4. Remove E-clip
e
retaining the spring washer, washer
and gear selector switch
r
.
5. Remove sector cover bolts
t
and remove the cover.
6. Remove detent spring , detent pawl and detent star.
Note the master spline on the detent star and the shift
shaft.
