9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
10.21
DOORS
DOOR PANEL / LATCH REPLACEMENT

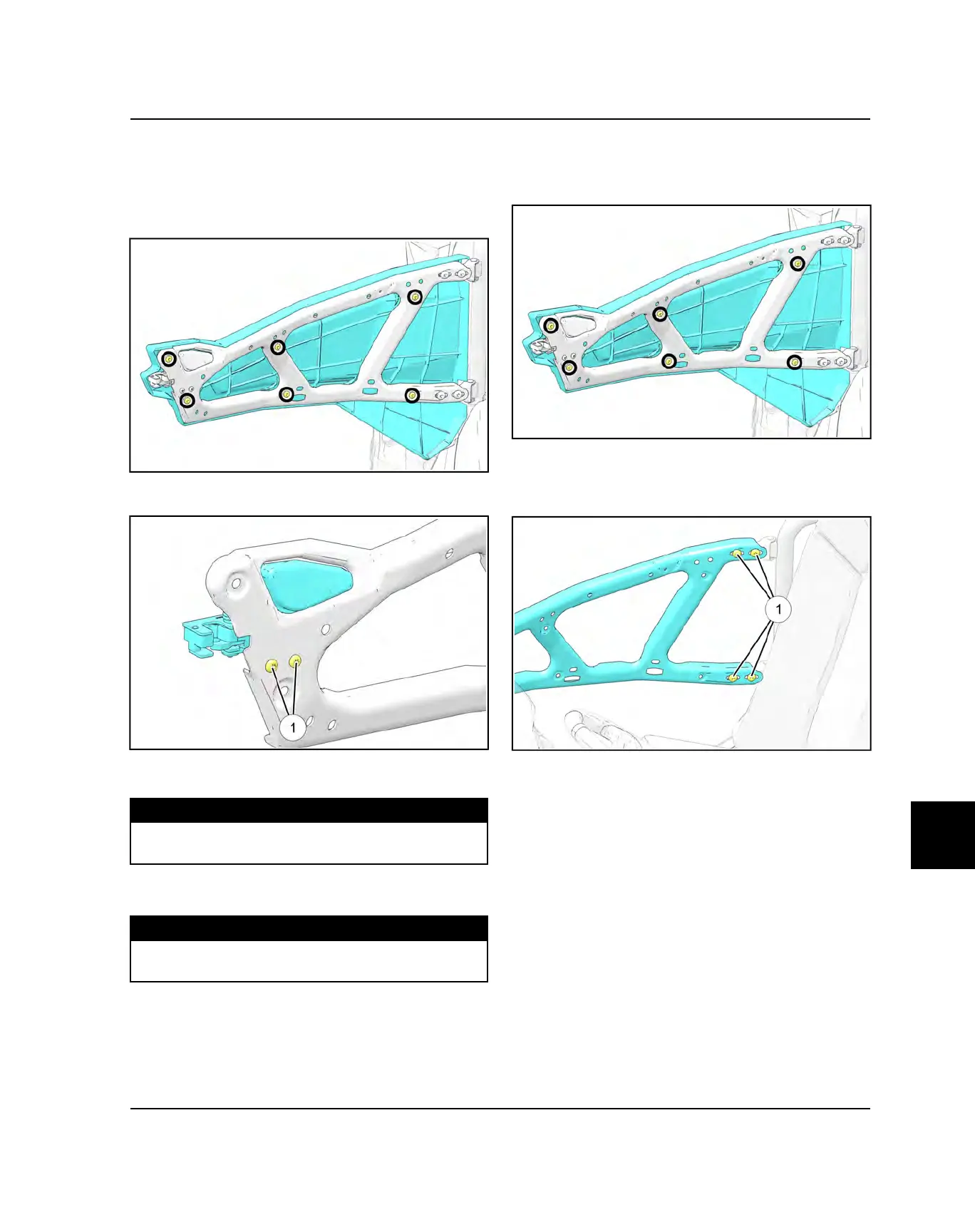

1. Remove the T-25 fasteners retaining the door panel
to the door frame. Remove the door panel.
2. Remove the two fasteners
q
retaining the door latch
to the door frame.
3. Install new latch onto the door frame. Torque
mounting fasteners to specification.
TORQUE
Door Latch Fasteners:
8 ft-lb (11 Nm)
4. Install the door panel onto the door frame. Torque
fasteners to specification.
TORQUE
Door Panel Fasteners:
22 in-lb (2 Nm)
5. Adjust the door so it properly opens and latches.
Refer to Door Adjustment, page 10.21.
DOOR ADJUSTMENT
1. Remove the T-25 fasteners retaining the door panel
to the door frame. Remove the door panel.
2. Close the door and keep it closed during entire
adjustment for proper functional fit.
3. Loosen the M8 bolts
q
holding the door assembly to
the hinge brackets using a T-40 Torx driver.
