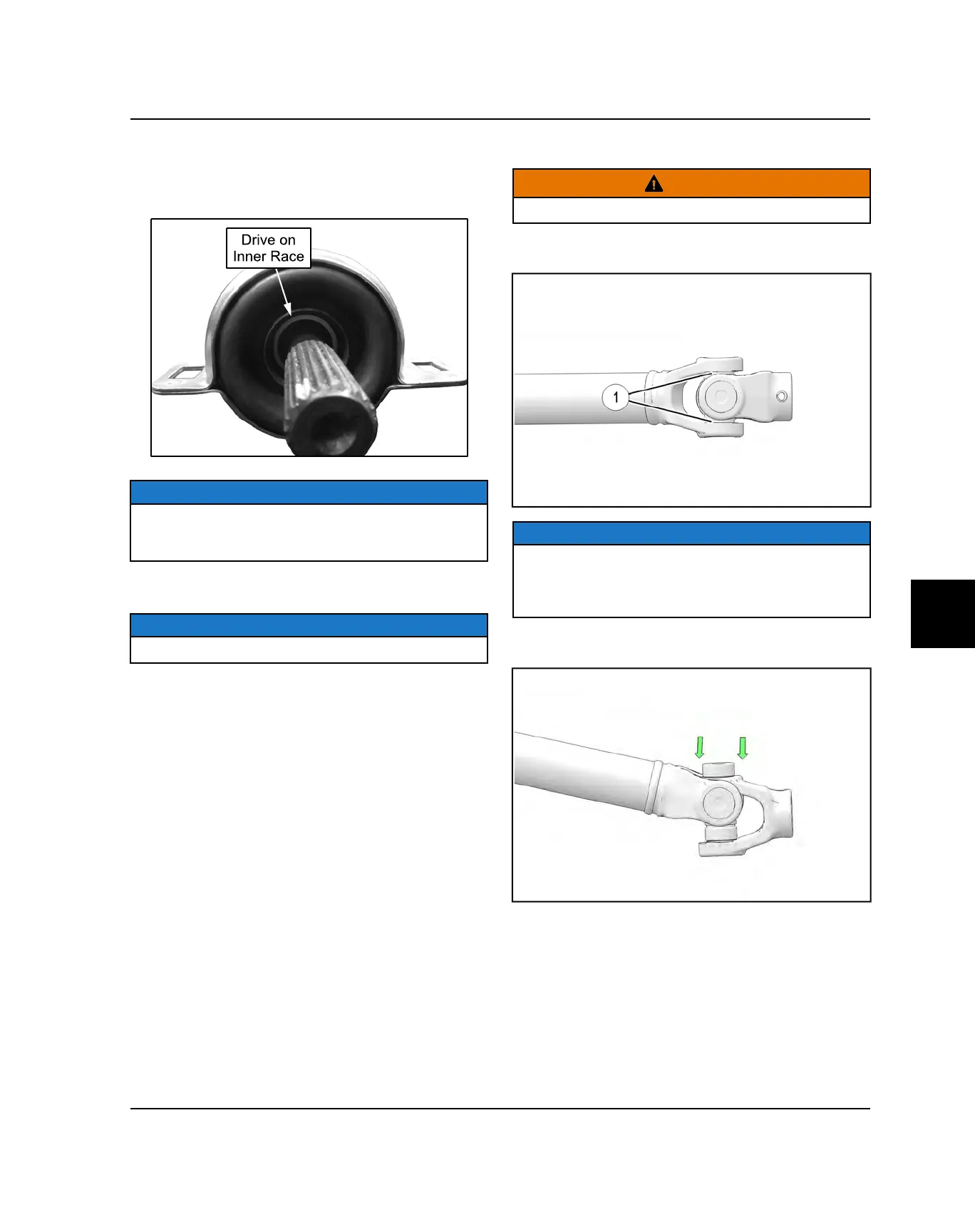

9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual

7.25

6. Using an appropriate bearing/bushing installation

sleeve, drive the support bearing assembly onto the

prop shaft until it seats against the shoulder on the

shaft.

NOTE

Only drive on the inner race of the bearing. Driving on

the bearing in any other location will damage the

bearing.

7. Wipe the bearing and shaft clean of any excess

retaining compound.

NOTE

Do not allow any Loctite

to get in the bearing.

8. Install the rear prop shaft into the vehicle (see

Chapter 7 – Rear Prop Shaft Installation, page ).

U-JOINT DISASSEMBLY

CAUTION

Always wear eye protection.

1. Remove internal snap ring

from all four bearing

caps.

NOTE

If yoke or bearing is removed, cross bearing must be

replaced. Note orientation of grease fitting (if equipped)

and mark inner and outer yoke for correct re-positioning

during installation.

2. Support inner yoke as shown and drive outer yoke

down (bearing cap out) with a suitable press.

FINAL DRIVE

Polaris RZR XP Turbo User Manual
