9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
GENERAL SERVICE INFORMATION
Recommended Service Intervals
Walker Evans™ Racing Shocks will perform the best if
serviced at regular intervals:
• Every ride - Wash and dry the vehicle and suspension
• Every 100 hours - Visually inspect shock seals
• Every 1500 miles or Annually - Change shock oil and
replace seals
NOTE
If leakage from a remote shock reservoir hose fitting is
evident, check for a loose fitting and seal threads with
Three Bond 1215 (PN 2871557)
SPRING ADJUSTMENT (WALKER EVANS)
The front and rear shocks have a ride height adjustment.
Suspension springs may be adjusted to suit different
riding conditions or vehicle payloads.
WARNING
Uneven adjustment may cause poor handling of the
vehicle, which could result in serious injury or death.
Always adjust both the left and right spring equally.
The factory setting is appropriate for nearly all riding
conditions. If desired, the spring setting may be adjusted
to maintain vehicle clearance height when carrying
loads.

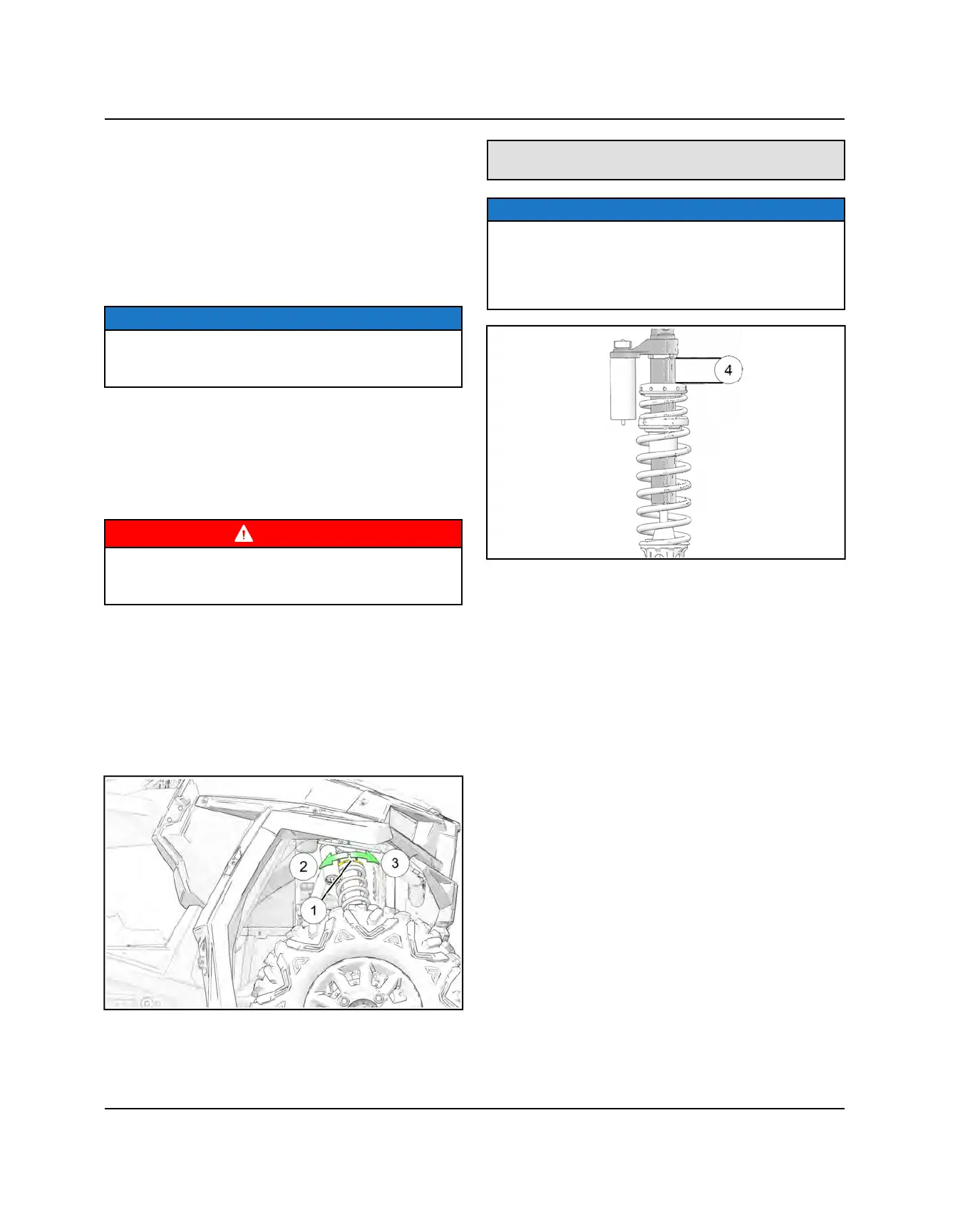

1. Raise and safely support front or rear of the vehicle
off the ground to allow the suspension to fully extend.
2. Using the shock spanner/spreader tool included in
the vehicle’s tool kit, turn the adjustment collar
q
to
increase
w
or decrease
e
ride height.
Shock Spanner / Clutch Spreader Tool:
2878925
NOTE
Polaris does not recommend increasing the spring
adjustment by more than one inch (25.4 mm) over the
factory setting
r
as it may negatively impact vehicle
stability. Always return the spring preload to the factory
setting after the load is removed from the vehicle.
