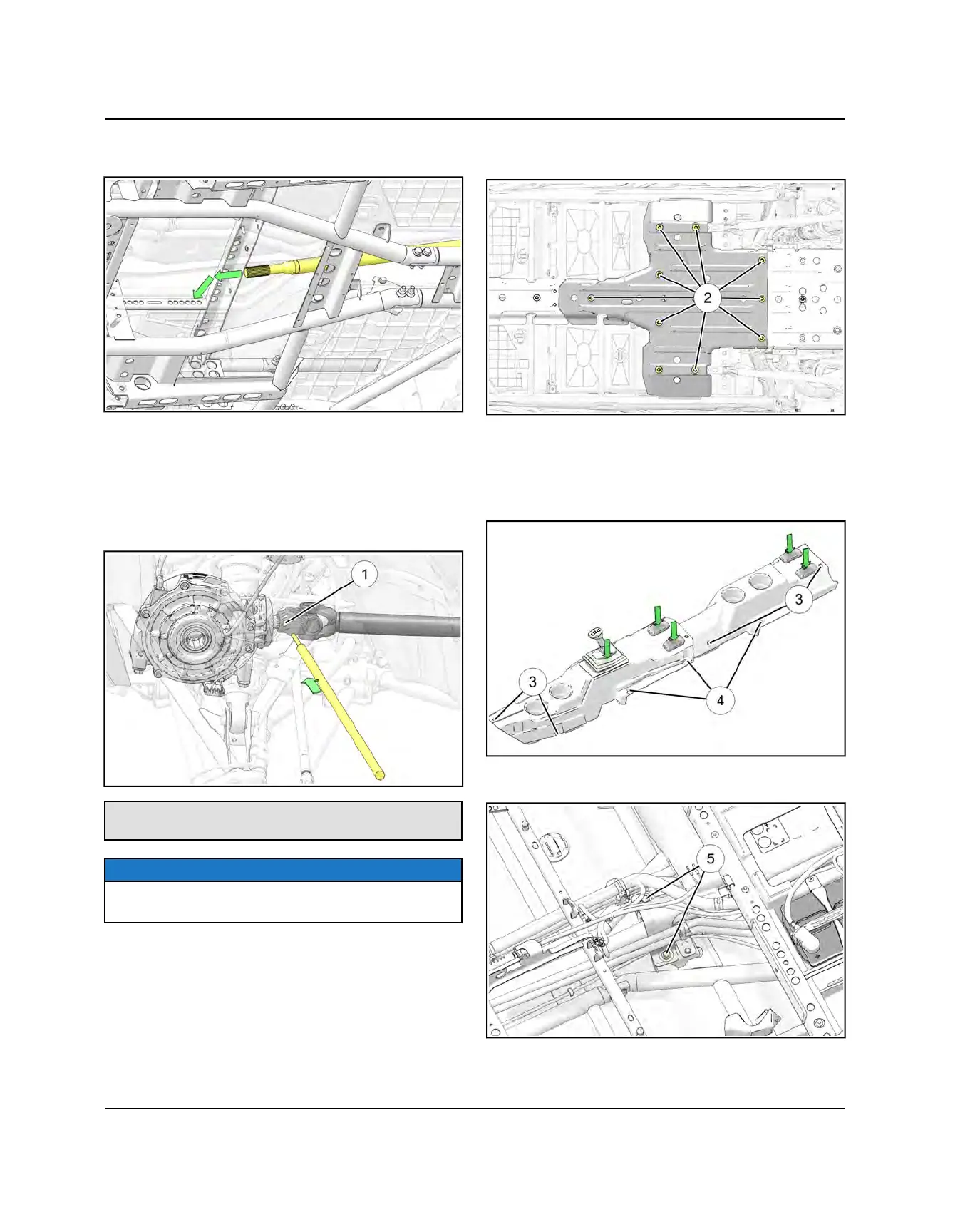

10.Remove the front prop shaft out the bottom of the
vehicle.
PROP SHAFT REMOVAL (XP4)
1. If removing the front prop shaft, Locate the prop
shaft roll pin
q
and use the Roll Pin Removal Tool to
remove the roll pin. Discard roll pin. Push the front
prop shaft rearward to remove it from the front
gearcase input shaft.
Roll Pin Removal Tool:
2872608
NOTE
Right front wheel can be removed to gain better access
to the prop shaft roll pin.
2. Remove the fasteners
w
retaining the front skid
plate.
3. Remove the seats.
4. Remove push rivets
e
and the torx screws
r
retaining the front and rear center consoles. Push the
rubber boots around the seat belt buckles and the
shifter through the center console to remove the
console.
5. Remove the two fasteners
t
retaining the prop shaft
bearing isolator.
