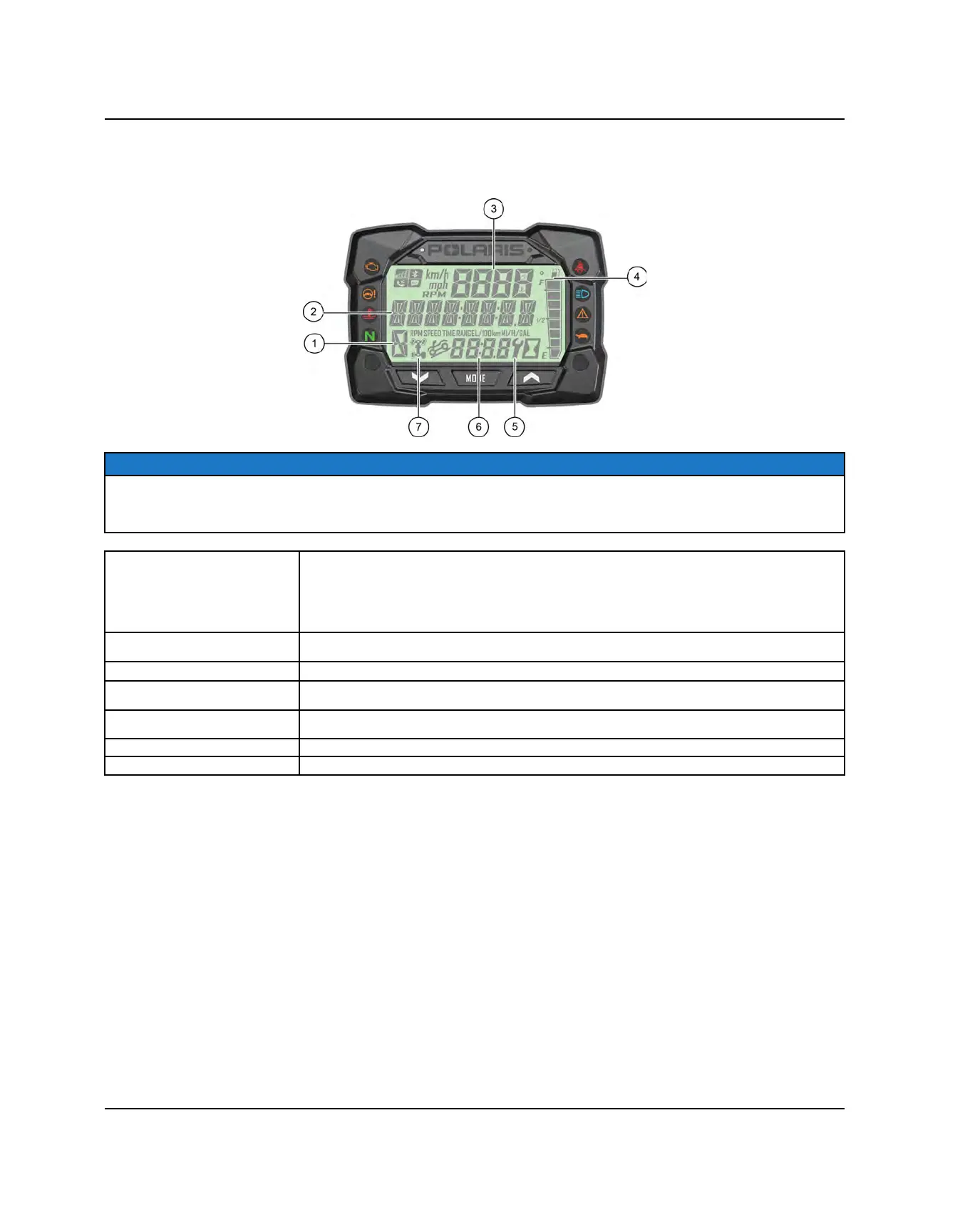

INSTRUMENT CLUSTER
OVERVIEW
NOTE
The use of a high pressure washer may damage the instrument cluster. Wash the vehicle by hand or with a garden
hose using mild soap. Do not use alcohol to clean the instrument cluster. Do not allow insect sprays to contact the
lens. Immediately clean off any gasoline that splashes on the instrument cluster.
q
Gear Indicator
H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
P = Park
– = Gear Signal Error (or shifter between gears)
w
Display Area 2
This area displays odometer, trip meter, trip meter 2, voltage, engine temperature, engine hour meter, programmable
service hour interval, ground speed, or engine RPM.
e
Display Area 1
This area displays engine RPM, ground speed, or coolant temperature.
r
Fuel Gauge
The segments of the fuel gauge show the level of fuel in the fuel tank. When the last segment clears, a low fuel warning is
activated. All segments including the fuel icon will flash. Refuel immediately.
t
Service Indicator
A flashing wrench symbol alerts the operator that the preset service interval has been reached. Your POLARIS dealer can
provide scheduled maintenance. See Service Hours, page 11.22 for more information.
y
Clock
The clock displays time in a 12-hour or 24-hour format. See Clock, page 11.19 for more information.
u
AWD Indicator
Segments of the indicator illuminate based on drive mode engaged.
