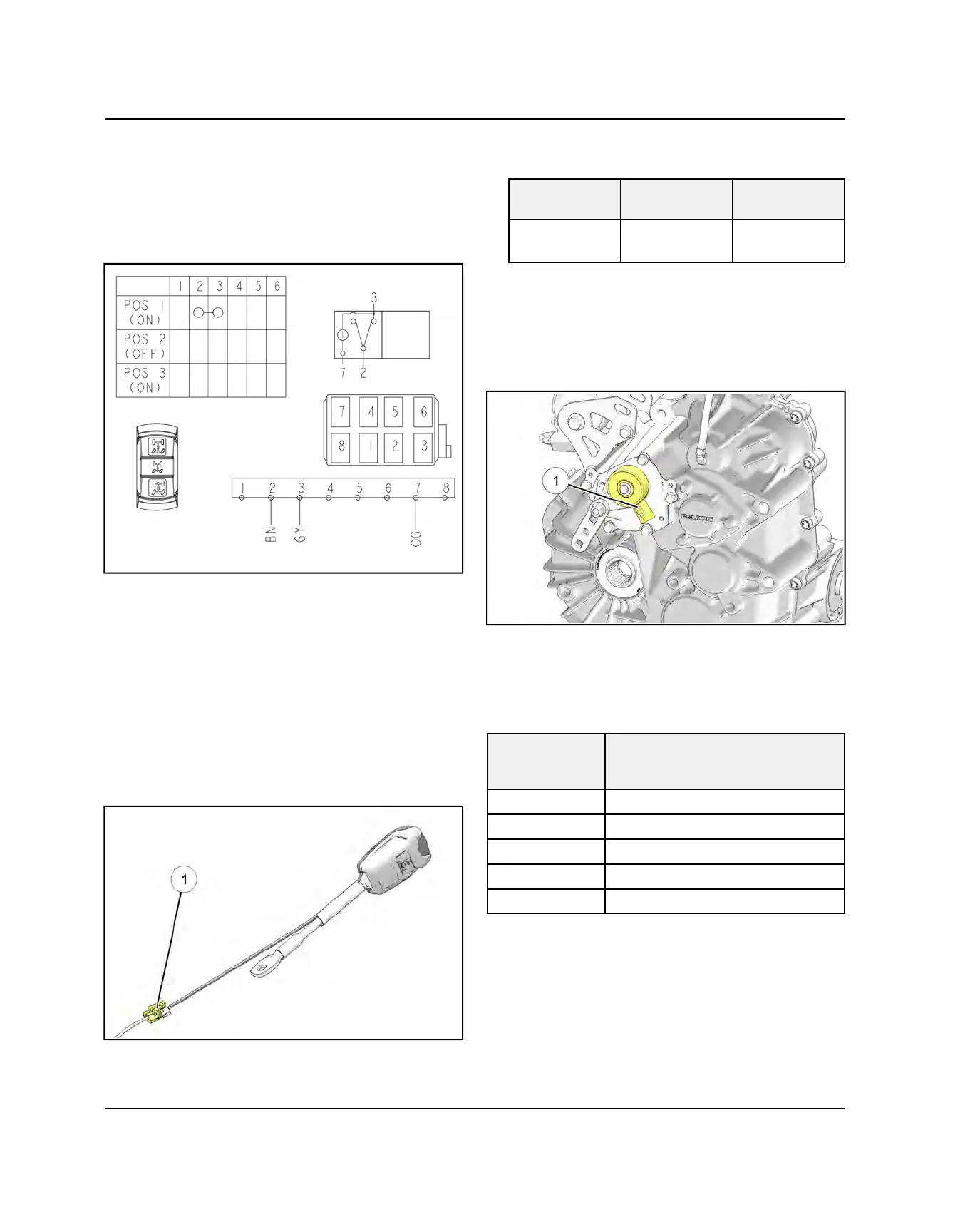

2. Test between the 2 sets of outputs (AWD / 2WD). If
any of the tests fail, replace the switch assembly.
• Move the switch to AWD (ON). There should be
continuity between switch pins 2 and 3 as well as 3
and 7.
• Move the switch to 2WD (NONE / OFF). There should
ONLY be continuity between pins 3 and 7.
SEAT BELT SWITCH
Location
Found on the driver’s seat belt latch
Functionality
If the circuit is open (buckle undone) vehicle speed will
be limited to 15mph. If the circuit is closed (buckle
inserted), the vehicle will function normally.
Testing:
1. Disconnect the harness
q
running to the seat belt.
2. Using a multi-meter, measure between both pins on
switch.
SEAT BELT
DISENGAGED
SEAT BELT
ENGAGED
Between both
pins on switch
∞ (OL)
< 1 Ω
TRANSMISSION / GEAR POSITION SWITCH
TESTING
1. The transmission (gear position) switch
q
is located
on the RH side of the transmission and can be
accessed through the rear RH wheel well area.
2. Disconnect the transmission switch harness by lifting
the connector lock and pulling on the connector. Do
not pull on the wiring.
3. Test the transmission switch continuity readings for
each gear position and compare to the specification
table below.
GEAR
POSITION
RESISTANCE VALUE
WHEN MEASURED AT SWITCH
TERMINALS A AND B
HIGH 620 Ω
LOW 300 Ω
NEU
160 Ω
REV 75 Ω
PARK 24 Ω
ELECTRICAL
