SWITCHES / CONTROLS

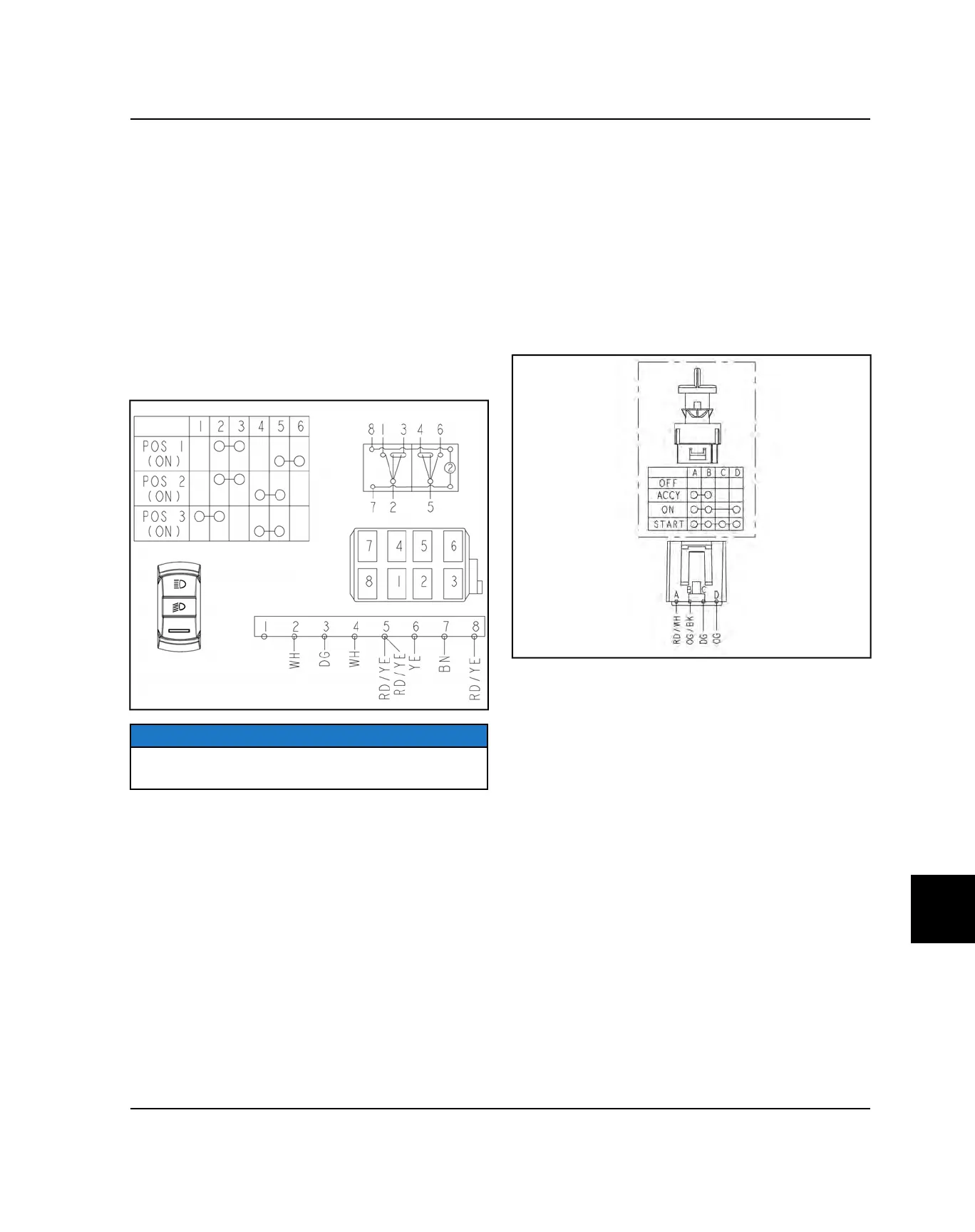

HEADLAMP SWITCH

1. Disconnect the headlamp switch harness by

depressing the connector locks and pulling on the

connector. Do not pull on the wiring.

2. Test between the 3 sets of outputs (OFF / LOW /

HIGH). If any of the tests fail, replace headlamp

switch assembly.

• Move the switch to HIGH. There should be continuity

between switch pins 2 and 3; 5 and 6; 7 and 8.

• Move the switch to LOW. There should be continuity

between switch pins 2 and 3; 4 and 5; 7 and 8..

• Move the switch to OFF. There should be continuity

between switch pins 1 and 2; 4 and 5; 7 and 8.

NOTE

Pins 7 and 8 provide power and ground to light the

switch lamp.

IGNITION / KEY SWITCH

1. Disconnect the key switch harness by depressing the

connector lock and pulling on the connector. Do not

pull on the wiring.

2. Test between the 4 sets of outputs (OFF / ACCY / ON

/ START). If any of the tests fail, replace ignition

switch assembly.

• In the OFF position, there should be no continuity

between any of the pins.

• Turn the key to ACCY position. There should be

contunity between switch pins A and B.

• Turn the key to ON position. There should be

continuity between switch pins A, B and D.

• Turn the key to START position. There should be

continuity between all the pins on the switch.

AWD / 2WD SWITCH (NO TURF MODE)

1. Disconnect the AWD / 2WD switch harness by

depressing the connector locks and pulling on the

connector. Do not pull on the wiring.
