9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

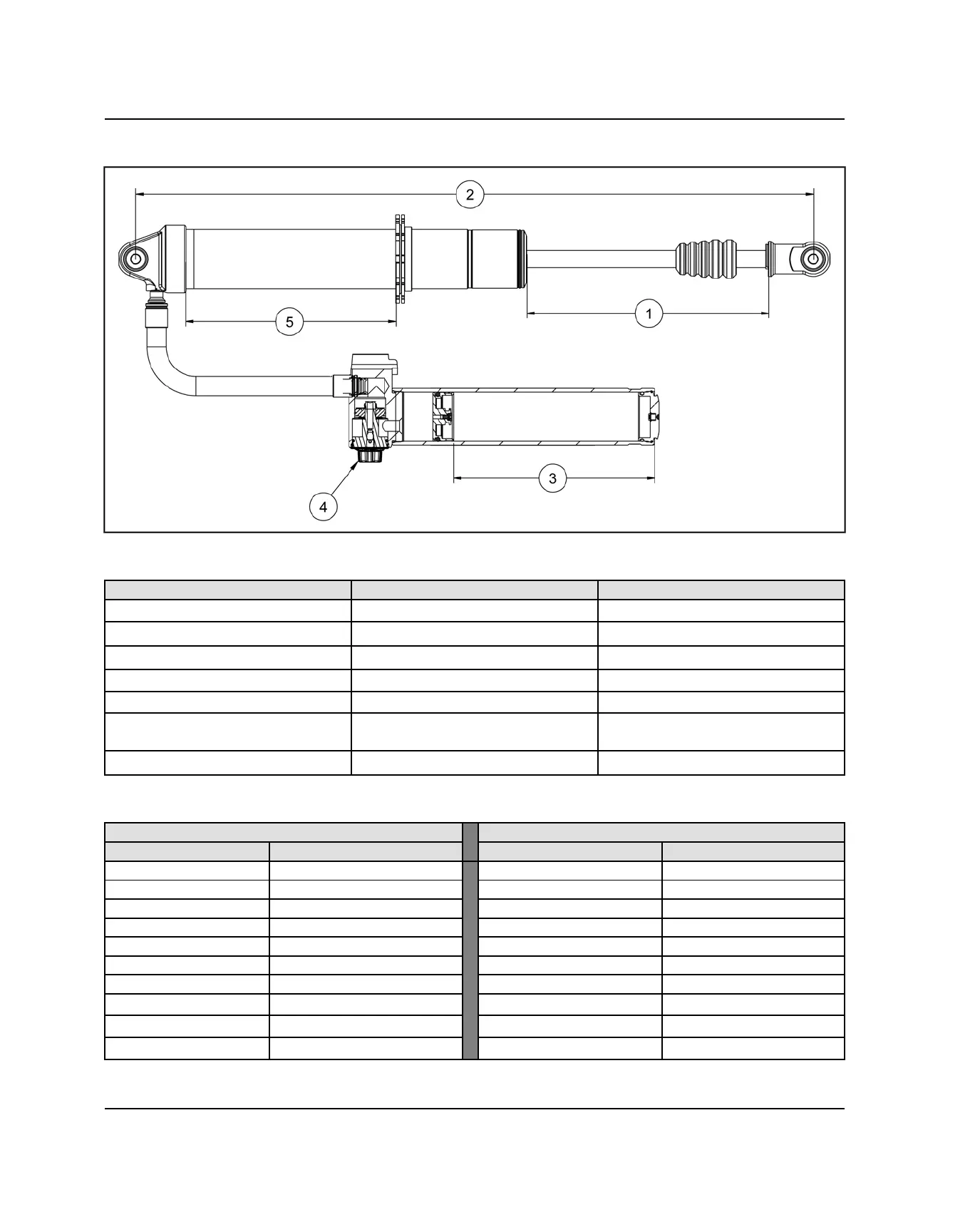

FOX 3.0″ REAR SHOCK INFORMATION
Rear Shock Specifications
RZR XP TURBO RZR XP 4 TURBO
Shock Travel
q
12.14″ (30.82 cm) 12.14″ (30.82 cm)
Extended Length
w
34.34″ (87.2 cm) 34.34″ (87.2 cm)
IFP Depth
e
7.00″ (17.78 cm) 7.00″ (17.78 cm)
Nitrogen Pressure 100 psi (690 kPa) +/- 5% 100 PSI (690 kPa) +/- 5%
Gas Shock Oil
2874124 (qt.) 2874124 (qt.)
Compression Adjustment (factory)
r
12 clicks CCW from full firm setting/
full clockwise
12 clicks CCW from full firm setting/
full clockwise
Spring Adjustment Setting
t
8.31″ (21.09 cm) 7.10″ (18.03 cm)
Rear Shock Valving
RZR XP TURBO RZR XP 4 TURBO
COMPRESSION REBOUND COMPRESSION REBOUND
1.800 x 0.006 SB 1.600 x 0.015 1.800 x 0.006 SB 1.600 x 0.012
1.800 x 0.015 1.425 x 0.015 1.800 x 0.015 1.425 x 0.012
1.600 x 0.015 1.350 x 0.015 1.600 x 0.015 1.350 x 0.012
1.425 x 0.015 1.250 x 0.015 1.425 x 0.015 1.250 x 0.012
1.350 x 0.015 1.100 x 0.015 1.350 x 0.015 1.100 x 0.012
1.250 x 0.015 0.950 x 0.015 1.250 x 0.015 0.950 x 0.012
1.100 x 0.015 0.800 x 0.015 1.100 x 0.015 0.800 x 0.012
0.950 x 0.015 0.800 x 0.020 0.950 x 0.015
0.875 x 0.100 (Back Up)
0.800 x 0.015 0.800 x 0.020 0.800 x 0.015
0.875 x 0.100 (Back Up)
1.570 x 0.128 (Top Out) 0.875 x 0.100 (Back Up) 1.570 x 0.128 (TO)
STEERING / SUSPENSION
