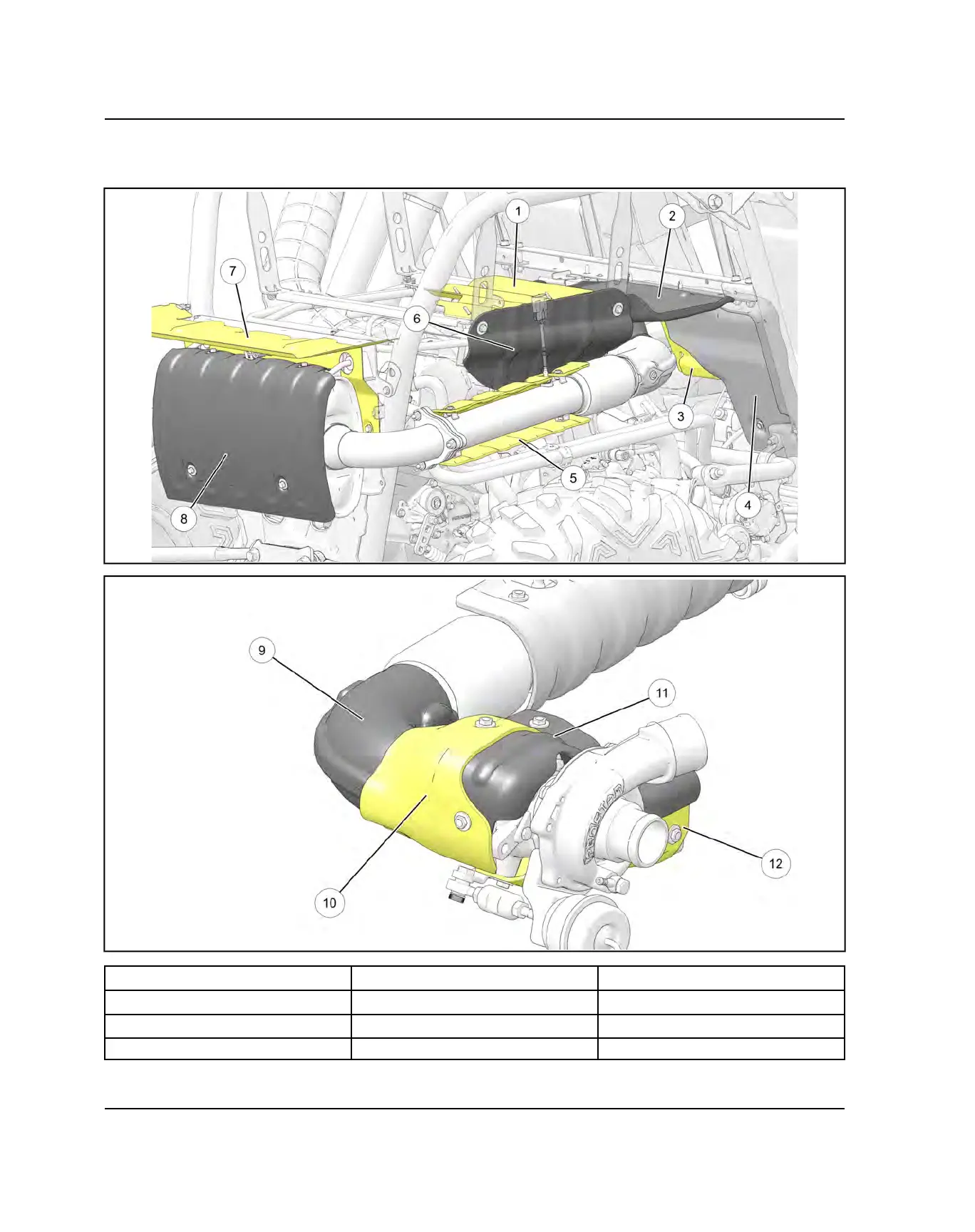

HEAT SHIELD INSPECTION
Verify all shields are properly installed and not damaged. If a shield is damaged or missing, it MUST be replaced.
q
Box Access Panel Heat Shield
t
Headpipe Inner Heat Shield
o
Headpipe Front Heat Shield
w
Front Box Heat Shield
y
Engine Heat Shield
a
Turbo Outlet Heat Shield
e
Front Access Panel Heat Shield
u
Rear Heat Shield
s
Turbo Upper Heat Shield
r
Rear Close-off Heat Shield
i
Silencer Heat Shield
d
Turbo Lower Heat Shield
