Polaris RZR XP Turbo User Manual

8.16
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
REAR SUSPENSION

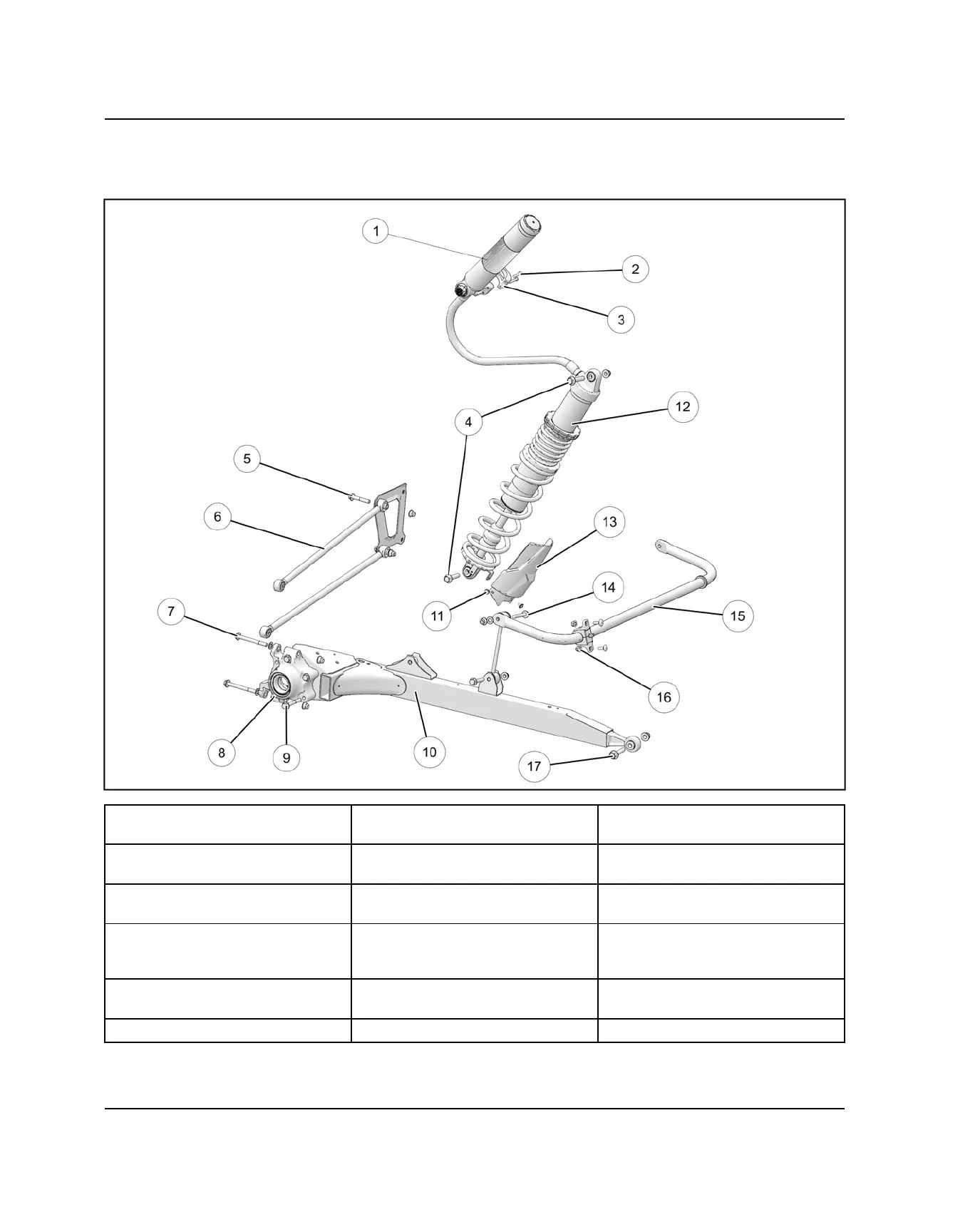

REAR SUSPENSION ASSEMBLY VIEW (REMOTE RESERVOIR)
q
Shock Reservoir
u
Radius Rod Fasteners
50 ft-lb (68 Nm) + 45°
f
Shock Guard
w
Clamp Screws
i
Rear Bearing Carrier
g
Stabilizer Bar Link Fasteners
42 ft-lbs (57 Nm)
e
Reservoir Mounting Clamp
o
Bearing Carrier Bolts
42 ft-lb (57 Nm)
h
Rear Stabilizer Bar
r
Shock Bolts
70 ft-lbs (95 Nm)
a
Trailing Arm
j
Stabilizer Bar Mounting Clamp
Fasteners
30 ft-lb (42 Nm)
t
Radius Rod Fasteners
50 ft-lb (68 Nm) + 45°
s
Shock Guard Screws
14 in-lbs (2 Nm)
k
Trailing Arm Mounting Bolts
70 ft-lb (95 Nm)
y
Radius Rod d
Rear Shock Assembly
STEERING / SUSPENSION
