Polaris RZR XP Turbo User Manual

11.6
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

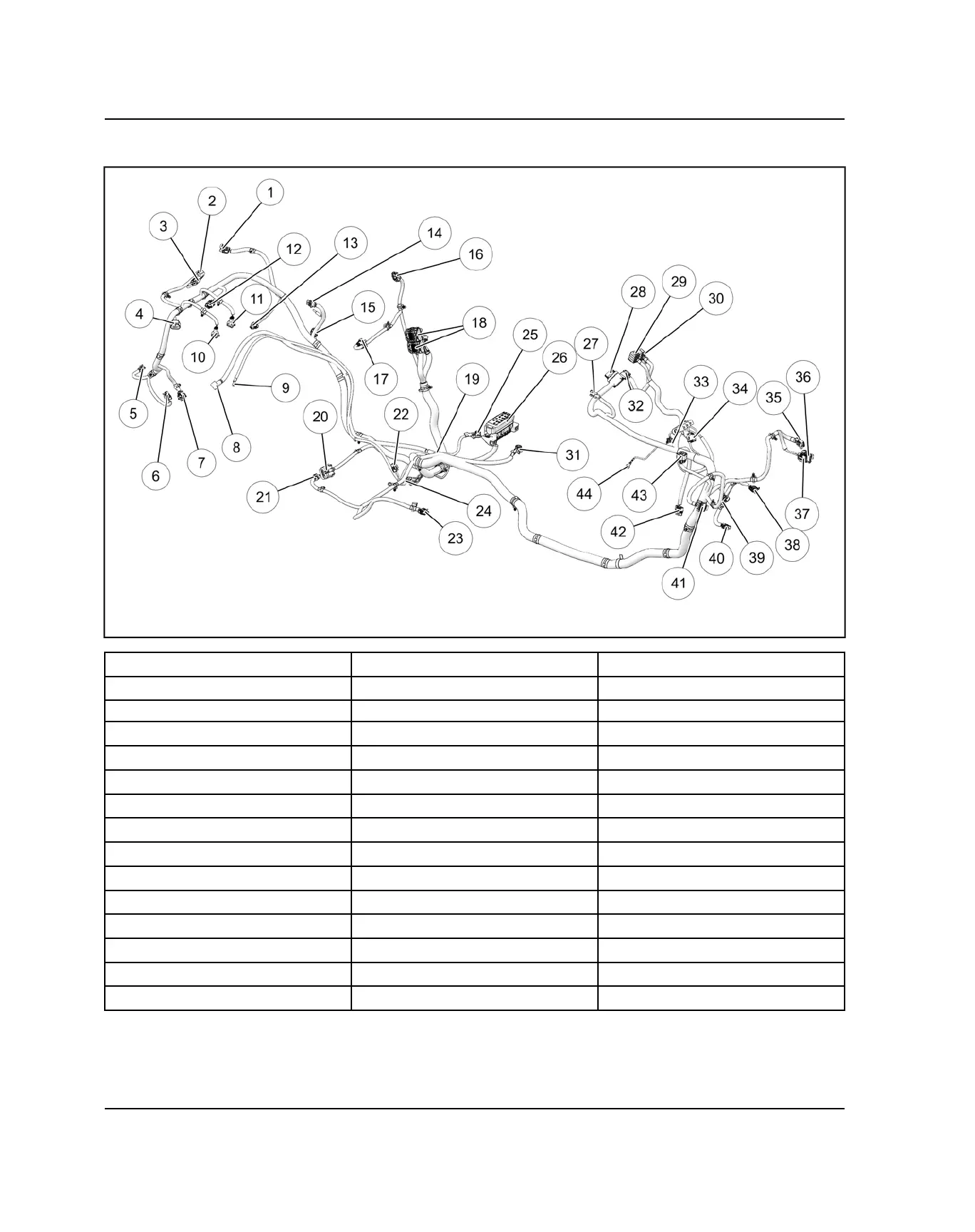

ELECTRICAL COMPONENT LOCATIONS
q
Taillight Harness
j
BAP Sensor
3!
Battery (+)
w
ETC Throttle Body
k
Waste Gate Control
3@
Key Switch
e
Boost Pressure Sensor
l
ECU
3#
EPS Power
r
Oxygen Sensor
1(
Starter Solenoid
3$
EPS Signal
t
Vehicle Speed Sensor
2)
Stator
3%
Left Headlight
y
Transmission Switch
2!
Water Pump
3^
Voltage Regulator
u
Crank Position Sensor
2@
Seat Belt Switch
3&
Voltage Regulator
i
Starter (+)
2#
Fuel Pump / Sender
3*
Fan
o
Engine Ground
2$
Chassis Ground
3(
AWD Coil
a
MAG Injector
2%
Battery (-)
4)
Brake Pressure Switch
s
PTO Injector
2^
Fuse Box
4!
Right Headlight
d
TMAP Sensor
2&
12V Receptacle
4@
Pedal Position Sensor
f
Coolant Temp Sensor
2*
Instrument Cluster
4#
Diagnostic Plug
g
Ignition Coil
2(
AWD Switch
4$
LED Dash Light
h
Ignition Coil Ground
3)
ELECTRICAL
