9. Rotate bearing by hand and check for smooth
rotation. Visually inspect bearing for moisture, dirt, or
corrosion. Replace bearing if moisture, dirt, corrosion,
or roughness is evident.

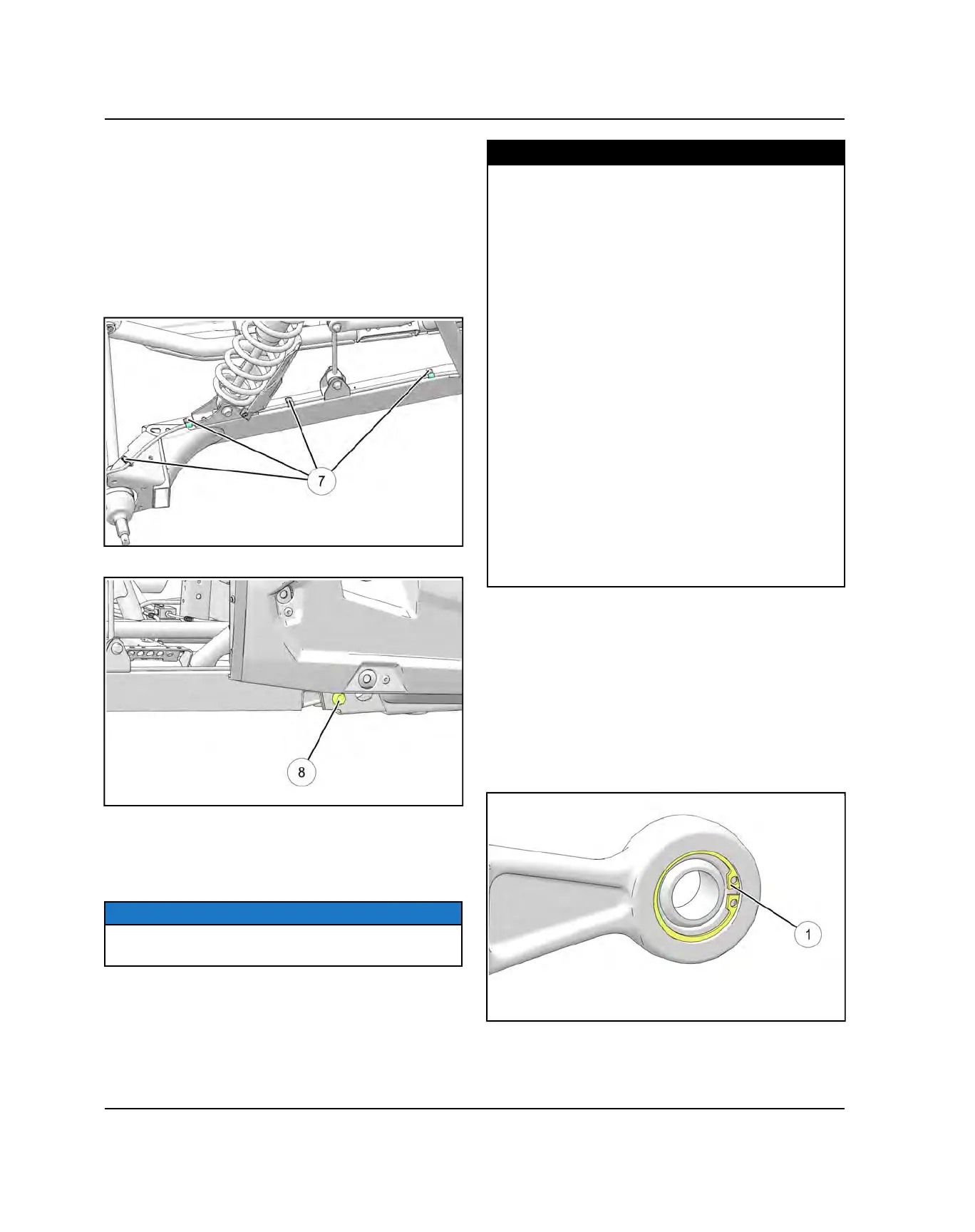

10.Remove the four fasteners
u
that secure the brake
line retainers to the trailing arm.
11. Remove the lower stabilizer bar linkage fastener.
Discard the nut.
12.Support trailing arm with suitable jack stand or
support.
13.Remove the lower shock bolt. Discard the nut.
14.Remove the front trailing arm bolt
i
. Discard the nut.
15.Remove trailing arm from vehicle. Visually inspect
trailing arm, bushings, o-rings and spherical bearing
for wear.
16.Replace trailing arm if physically damaged.
17.Reverse this procedure to reinstall rear trailing arm.
NOTE
Use new fastener nuts upon installation of the rear
trailing arm and bearing carrier.
18.Torque all fasteners to specification.
TORQUE
Trailing Arm to Main Frame:
70 ft-lb (95 Nm)
Rear Shock Mounting Bolts:
70 ft-lbs (95 Nm)
Rear Stabilizer Bar Linkage:
42 ft-lbs (57 Nm)
Inner Radius Rod Mounting Bolts:
50 ft-lb (68 Nm) + 45°
Outer Radius Rod Mounting Bolts:
50 ft-lbs (68 Nm) + 90°
Bearing Carrier to Trailing Arm Bolts:
42 ft-lb (57 Nm)
Rear Brake Caliper Mounting Bolts:
46 ft-lbs (62 Nm)
Rear Wheel Hub Castle Nut:
180 ft-lbs (244 Nm)
Wheel Nuts:
120 ft-lbs (163 Nm)
19.After rear trailing arm installation, test vehicle at low
speeds before putting into service.
TRAILING ARM SPHERICAL BEARING
REPLACEMENT
1. Remove trailing arm (see Chapter 8 – Trailing Arm
Removal / Installation, page ).
2. Remove bushings and O-rings.
3. Remove snap ring
q
that retains the spherical
bearing.
4. Properly support the trailing arm and press the
spherical bearing out of trailing arm casting.
STEERING / SUSPENSION
