STEERING SYSTEM

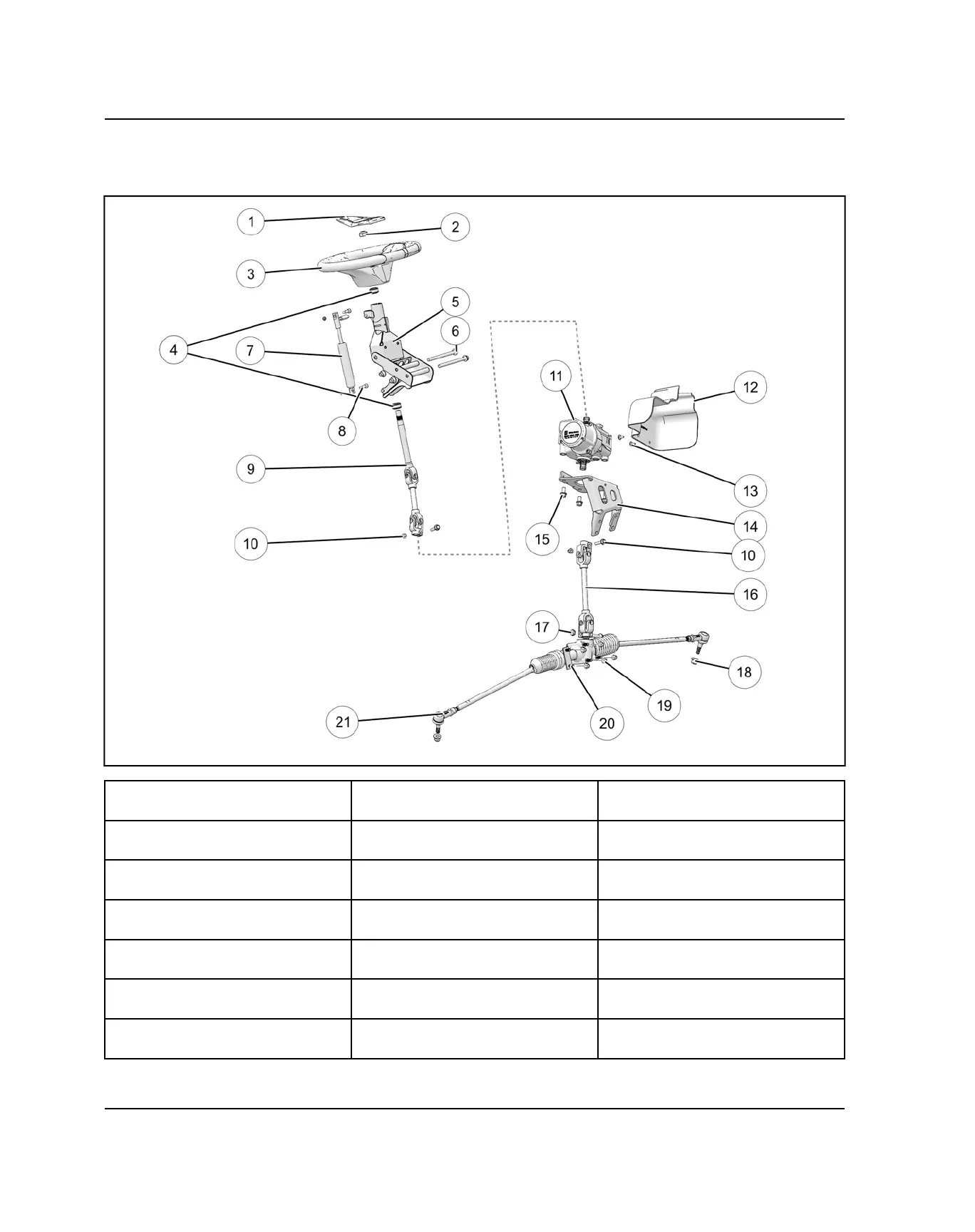

STEERING SYSTEM ASSEMBLY VIEW
q
Wheel Cap
i
Steering Shock Fasteners
7 ft-lb (10 Nm)
h
EPS to Bracket Fasteners
30 ft-lb (41 Nm)
w
Steering Wheel Nut
65 ft-lbs (88 Nm)
o
Upper Steering Shaft
j
Lower Steering Shaft
e
Steering Wheel
a
Steering Shaft to EPS Fasteners
25 ft-lb (34 Nm)
k
Steering Shaft to Rack Fasteners
50 ft-lb (68 Nm)
r
Steering Shaft Bushings
s
EPS Unit
l
Tie Rod End Nut (Do not reuse)
30 ft-lbs (41 Nm) + 90°
t
Steering Column
d
EPS Cover
1(
Steering Rack Mounting Nuts
16 ft-lbs (22 Nm)
y
Steering Column Fasteners
40 ft-lb (54 Nm)
f
Cover Screws
15 ft-lb (20 Nm)
2)
Steering Rack
u
Tilt Steering Shock
g
EPS Mounting Bracket
2!
Tie Rod End
14 ft-lbs (19 Nm)
