9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual

4.21

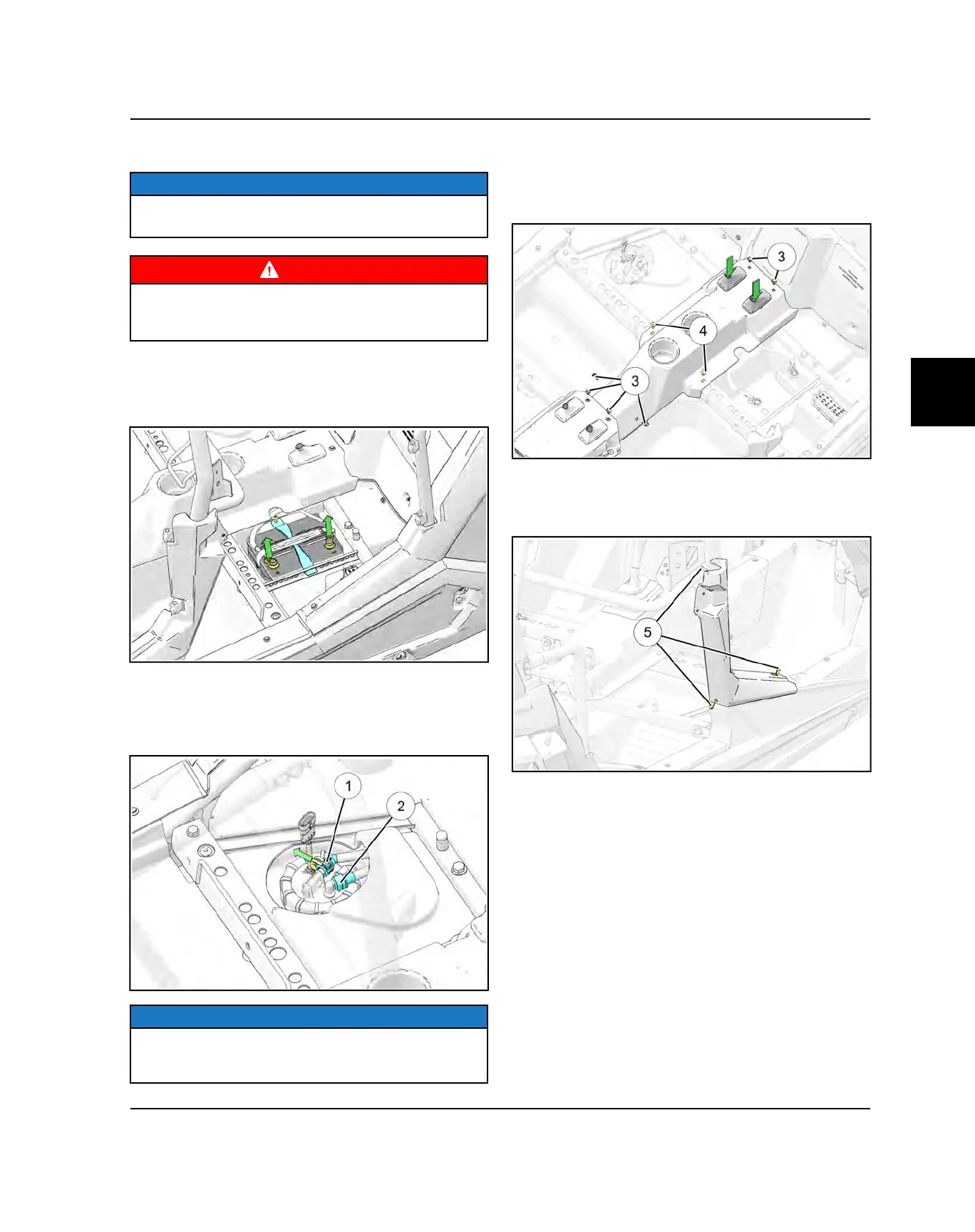

FUEL TANK REMOVAL (XP4)

NOTE

Syphon as much fuel from the tank as possible before

attempting to remove it from the vehicle.

WARNING

Always wear safety goggles when working with high

pressure or flammable fluids. Failure to do so could

result in serious injury or complications.

1. Remove the driver and passenger seats.

2. Loosen the clamp fasteners and remove the negative

and positive battery cables from the battery, located

under the left rear passenger’s seat.

3. Remove the battery bracket fastener and remove the

battery from the vehicle.

4. While holding a shop towel over the fuel line

connectors, disconnect the fuel supply line

and

return line

from the pump.

NOTE

A small amount of fuel may come out of the fuel lines or

pump fitting. Properly drain fuel into a suitable

container.

5. Disconnect the fuel pump electrical harness.

6. Remove the plastic rivets

and Torx screws

retaining the rear center console. Disconnect the 12v

powerpoint going to the rear center console and

remove the console from the vehicle.

7. Remove the push rivets and Torx screws retaining the

rear fender flair and rear fender. Remove those

panels from the vehicle.

8. Remove the fasteners

retaining the B-Pillar cover.

EFI / FUEL SYSTEM
