8
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
8.37
FOX SHOCK ASSEMBLY
A training video is available on University of Polaris
(https://lms. latitudelearning. com/home/main. aspx) for
assembly of Podium Internal Bypass shocks. Search for
“Podium Internal Bypass Shock”.

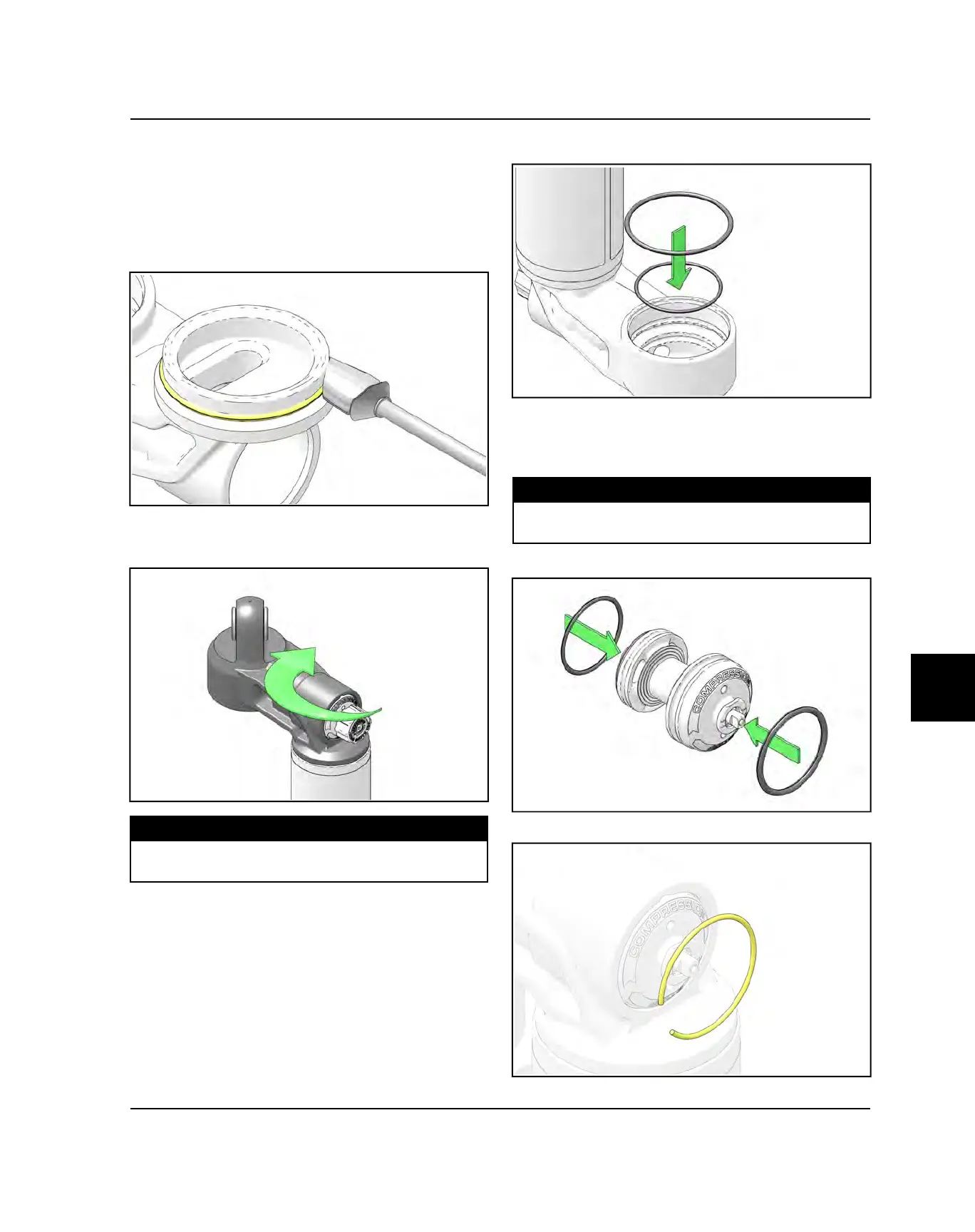

1. Install reservoir o-ring and apply a thin layer of slick
honey on o-ring.
2. Using clamp blocks to secure reservoir in vise, torque
body cap to specification using the offset formula.
See Offset Torque Formula, page 8.29.
TORQUE
Body Cap (step 1):
30 ft-lb (42 Nm)
3. With body prepared with Loctite primer add a layer of
Loctite 638 2 threads up, 2 threads wide 360°.
4. Apply a thin layer of Slick Honey to body cap o-rings.
5. Install both o-rings in body cap. Ensuring no Slick
Honey is on threads.
6. Torque body cap to final specified torque with body
cap socket.
TORQUE
Body Cap (step 2):
100 ft-lb (135 Nm)
7. Apply Slick honey to LSC o-ring and install.
8. Install LSC and retaining ring.
STEERING / SUSPENSION
