9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

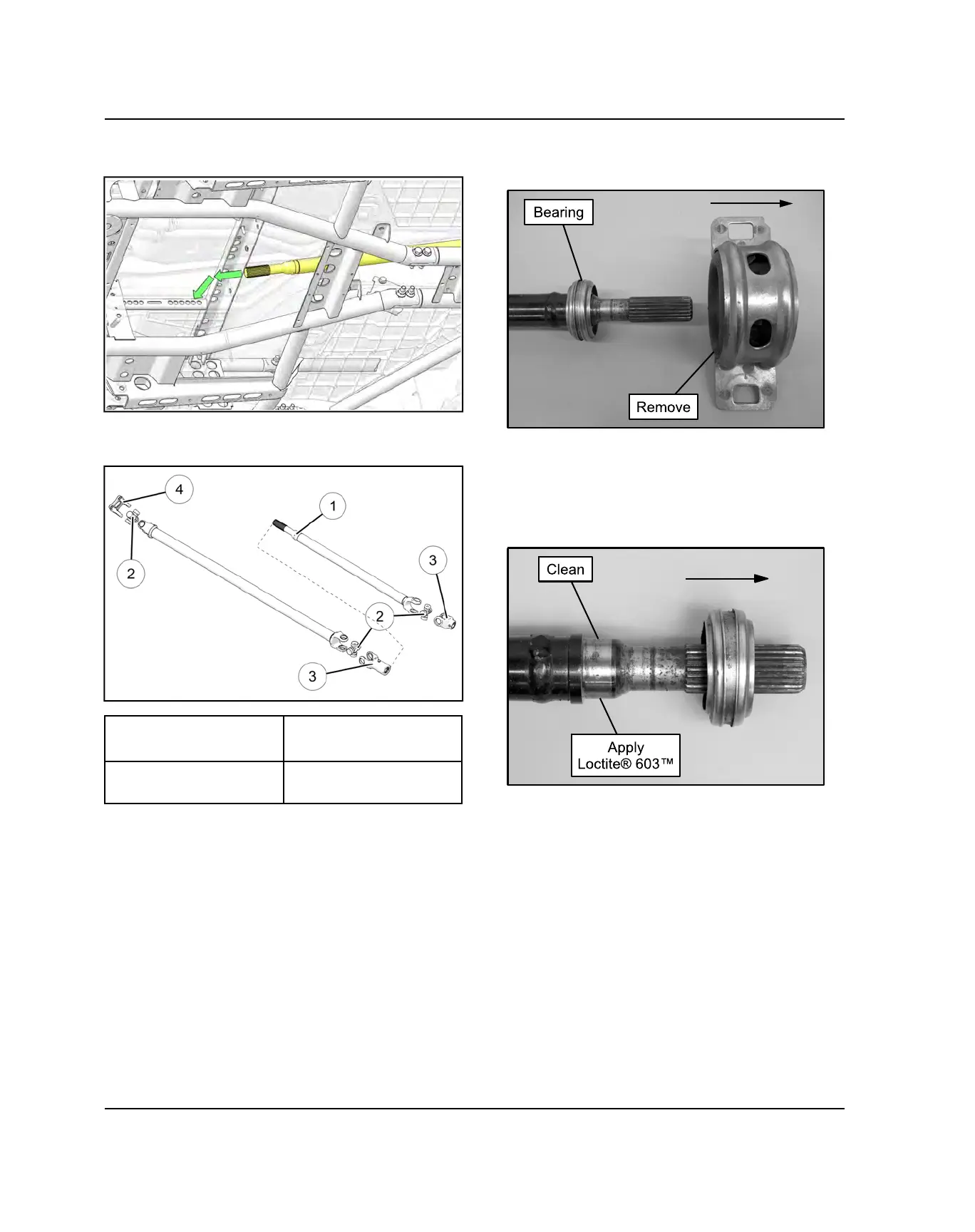

10.Remove the front prop shaft out the bottom of the
vehicle.
PROP SHAFT ASSEMBLY VIEW
q
Support Bearing (not
replaceable)
e
Slip Yoke
w
Cross & Bearing
r
Transmission Coupler
Yoke
SUPPORT BEARING REPLACEMENT
1. Remove the rear prop shaft from the vehicle (see
Chapter 7 – Rear Prop Shaft Removal, page ).
2. Using a rubber mallet, remove the rubber isolated
bearing support from the shaft to expose the bearing.
3. Using a commercially available 2-jaw puller, remove
the bearing from the end of the prop shaft.
4. Clean the bearing mounting surface on the shaft and
apply Loctite
®
603
™
retaining compound to the
clean surface.
5. Install the new support bearing assembly onto the
end of the prop shaft.
FINAL DRIVE
