9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
3.39
ENGINE SERVICE
FRONT ENGINE MOUNT ISOLATOR
REPLACEMENT

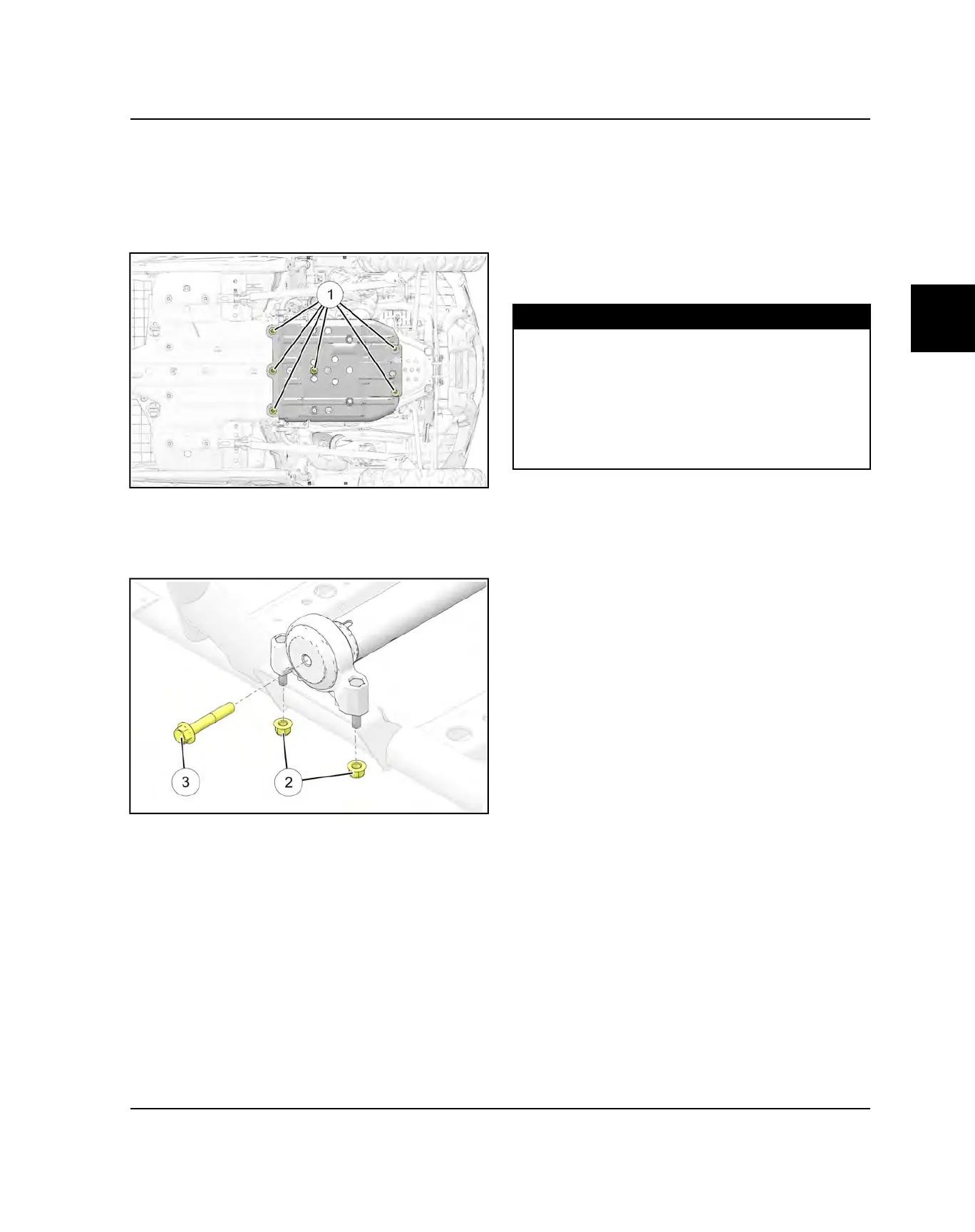

1. Remove the rear skid plate fasteners
q
and remove
the skid plate from the vehicle.
2. Using a commercially available transmission lift or
pump jack, lift the front engine mount to take the
weight off the isolators.
3. Remove the fasteners
q
retaining the isolator
mounts to the frame.
4. Remove the isolator bolt
w
and remove the isolator.
5. Install new isolator and bolt. Torque fastener to
specification.
6. Lower the lift or jack and align the isolator tang with
the holes in the frame. Install isolator to frame
fasteners. Torque fasteners to specification.
7. Install rear skid pan. Torque fasteners to
specification.
TORQUE
Engine Mount Isolator Bolts:
40 ft-lbs (54 Nm)
Engine Mount Nuts:
22 ft-lb (30 Nm)
Skid Pan Fasteners:
8 ft-lbs (11 Nm)
