11.62
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
WIRING HARNESS REPLACEMENT
1. Remove the seat and disconnect the battery.
2. Remove the front bumper. Refer to Front Bumper,
page 10.16.
3. Remove the rear bumper. Refer to Rear Bumper,
page 10.17.

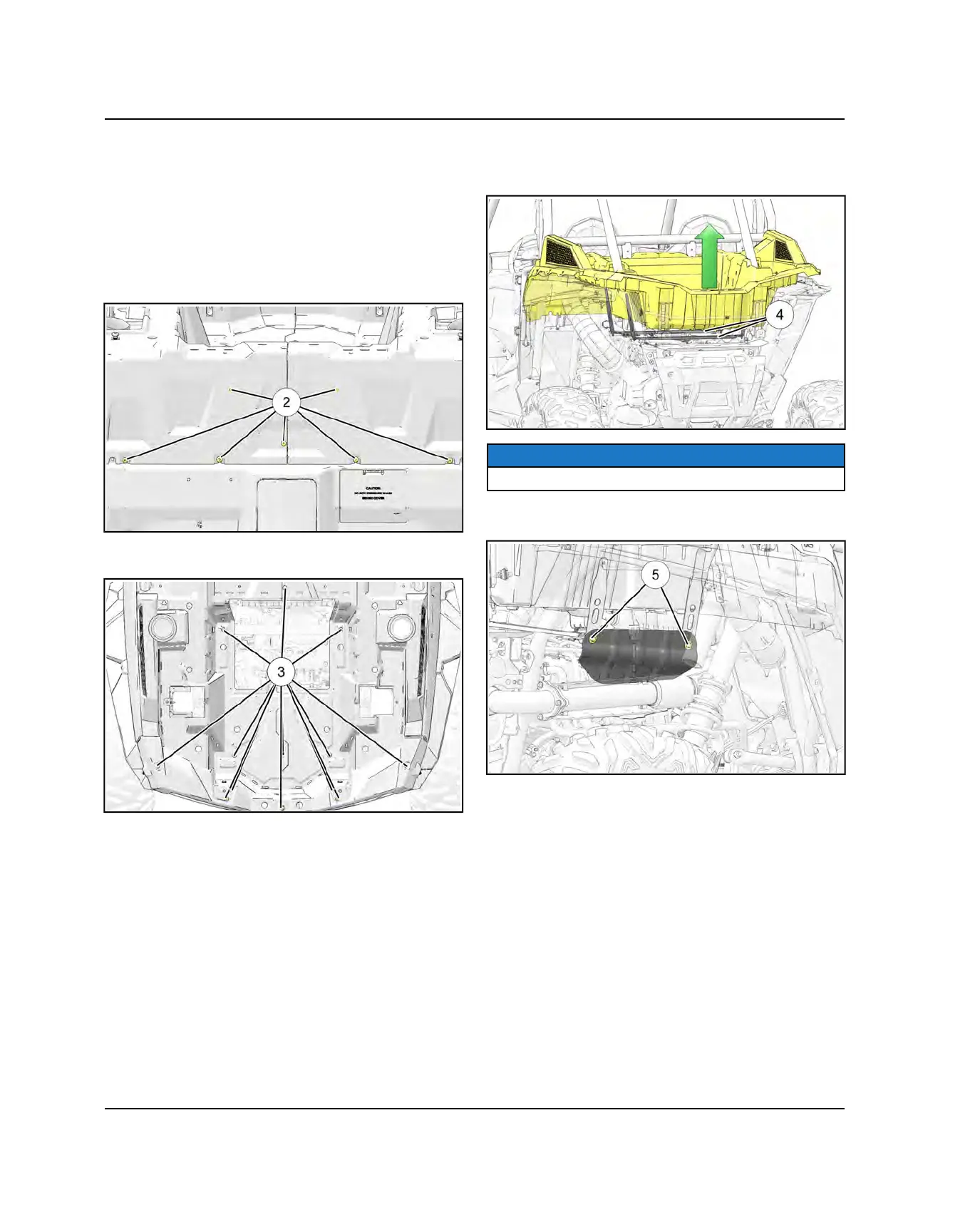

4. Remove the fasteners retaining the rear cargo box.
a. Remove the seven T-40 Torx screws
w
on the
cab side of cargo box.
b. Remove the 15 Torx fasteners
e
and 2 plastic
rivets in the bed of the cargo box.
5. Elevate the cargo box and place a 4x4″ block of wood
between the cargo box and the two support brackets
r
.
NOTE
ROPS does NOT need to be removed or loosened.
6. Remove the fasteners retaining the engine heat
shield on the right rear side. Remove the shield.
7. Remove the upper and lower dash. Refer to Hood
and Front Body Work, page 10.17. For Dynamix
equipped models, remove the the Ride Command
display and the SCM.
8. Remove driver seat belt base.
9. Remove the throttle pedal and brake pedal assembly.
10.Remove the center console and floor. Refer to Rocker
Panels, Console and Floor XP, page 10.20.
11. Remove the seats and seat frame.
12.Remove the ECU cover and disconnect the harness
from the ECU.
ELECTRICAL
