9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
8.7

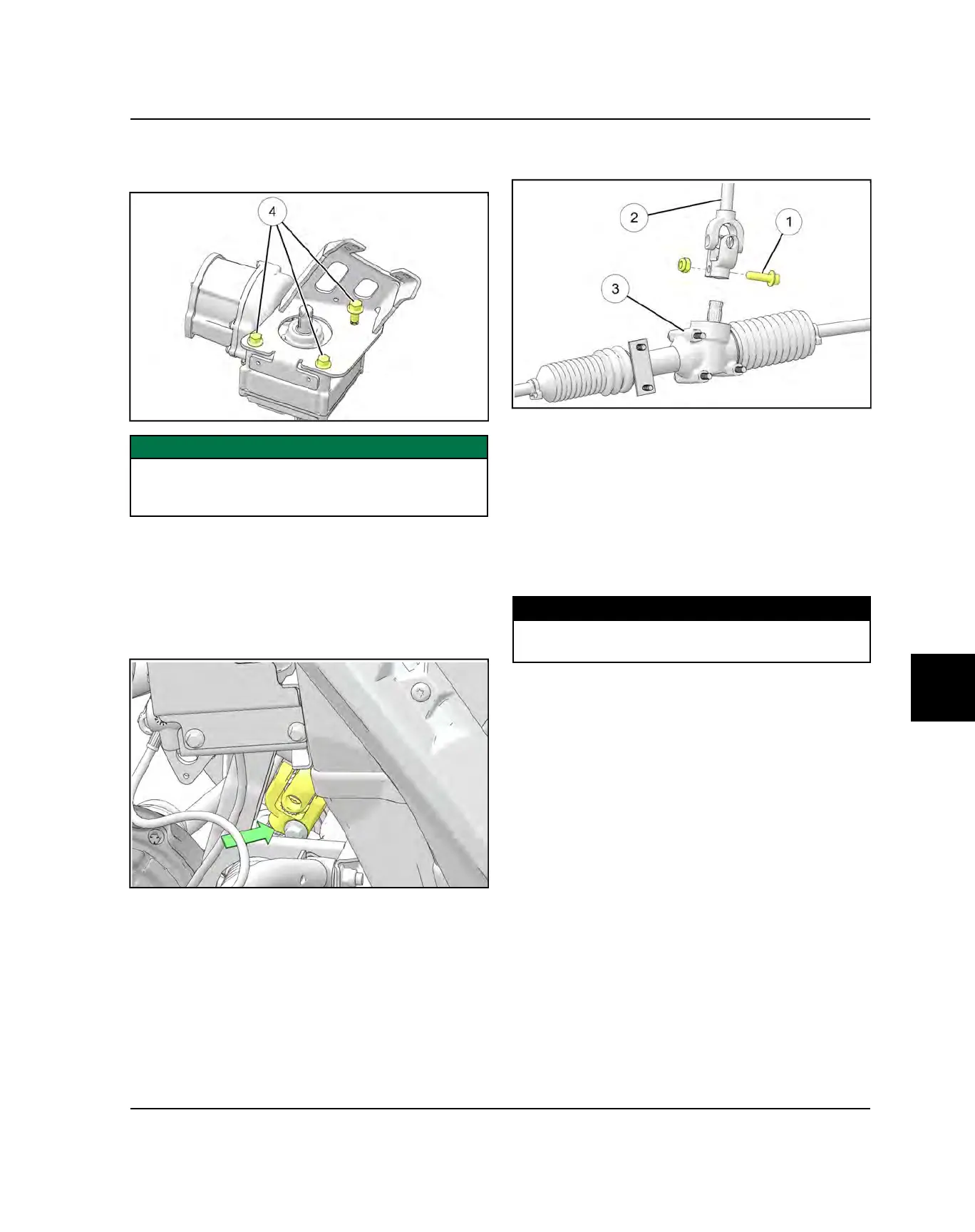

6. If replacing the power steering unit, remove the three
bolts
r
that retain the power steering unit to the
mount bracket.
IMPORTANT
Electronic Power Steering (EPS) units are programmed
to be vehicle specific and are not interchangeable
between product lines.
LOWER STEERING SHAFT REMOVAL
1. Use the steering wheel to position the front wheels so
they point straight ahead.
2. Locate the lower steering shaft through the left front
wheel well. Mark the lower steering shaft, gear box
stub shaft and gear box to aid installation.
3. Remove the power steering unit (see Power Steering
Unit Removal, page 8.6).
4. Remove the pinch bolt
q
retaining the lower steering
shaft
w
to the steering gear box assembly
e
.
5. Lift up on the shaft and remove it through the floor
panel.
LOWER STEERING SHAFT INSTALLATION
1. Install the lower steering shaft onto the gear box and
align the marks made during step 2 of the “Lower
Steering Shaft Removal (EPS Models)” procedure.
2. Install the pinch bolt that retains the lower steering
shaft to the steering rack assembly and torque to
specification.
TORQUE
Lower Steering Shaft Pinch Bolt:
50 ft-lb (68 Nm)
3. Install the power steering unit and reassemble the
vehicle (see Power Steering Unit Installation, page
8.8).
4. Vehicles equipped with Dynamix suspension having a
steering shaft, EPS unit, steering rack, or tie rod
removed/adjusted/disconnected MUST have Steering
Angle Sensor Centering procedure performed once
everything is reinstalled. Refer to Steering Angle
Sensor Centering (Dynamix), page 11.31.
STEERING / SUSPENSION
