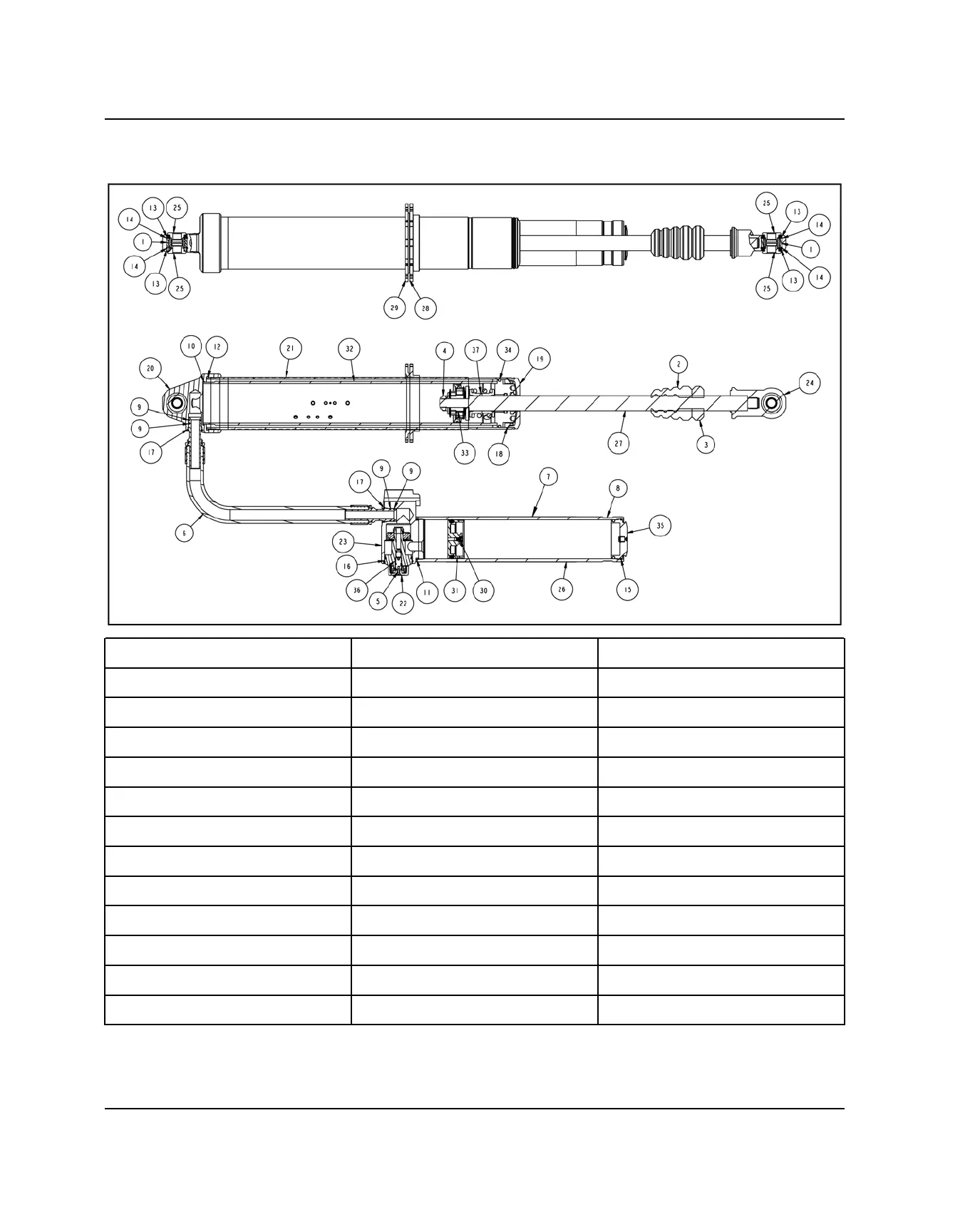

FOX 3.0″ O.E. PODIUM BYPASS
q
Spherical Bearing
g
Retaining Ring
2&
Shaft
w
Upper Bumper
h
Retaining Ring
2*
Spring Adjuster Ring
e
Lower Bumper
j
Retaining Ring
2(
Spring Adjuster Ring Backup
r
Lock Nut
k
Retaining Ring
3)
Screw Assembly
t
Screw
l
Retaining Ring
3!
Piston Assembly
y
Hose
1(
Bearing Cap
3@
Internal Bypass Body Assembly
u
Reservoir Decal
2)
Body Cap
3#
Valving Assembly
i
Band Decal
2!
Outer Body
3$
Bearing Assembly
o
O-ring
2@
Low Speed Adjuster Knob
3%
Reservoir End Cap Assembly
a
O-ring
2#
Remote Reservoir Adjust Port
3^
Damping Adjust Assembly
s
O-ring
2$
Eyelet
3&
Spring Hardware Assembly
d
O-ring
2%
Reducer
f
O-ring
2^
Reservoir
