9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual

TORQUE

Camshaft Carrier Bolts:

7 ft-lb (10 Nm)

13.Measure and confirm that valve clearance is now

within specification for each valve.

14.If valve clearance is not within specification, repeat

this procedure.

15.If all valve clearance measurements are now within

specification, remove the camshaft carriers and

proceed to Camshaft Installation / Timing, page

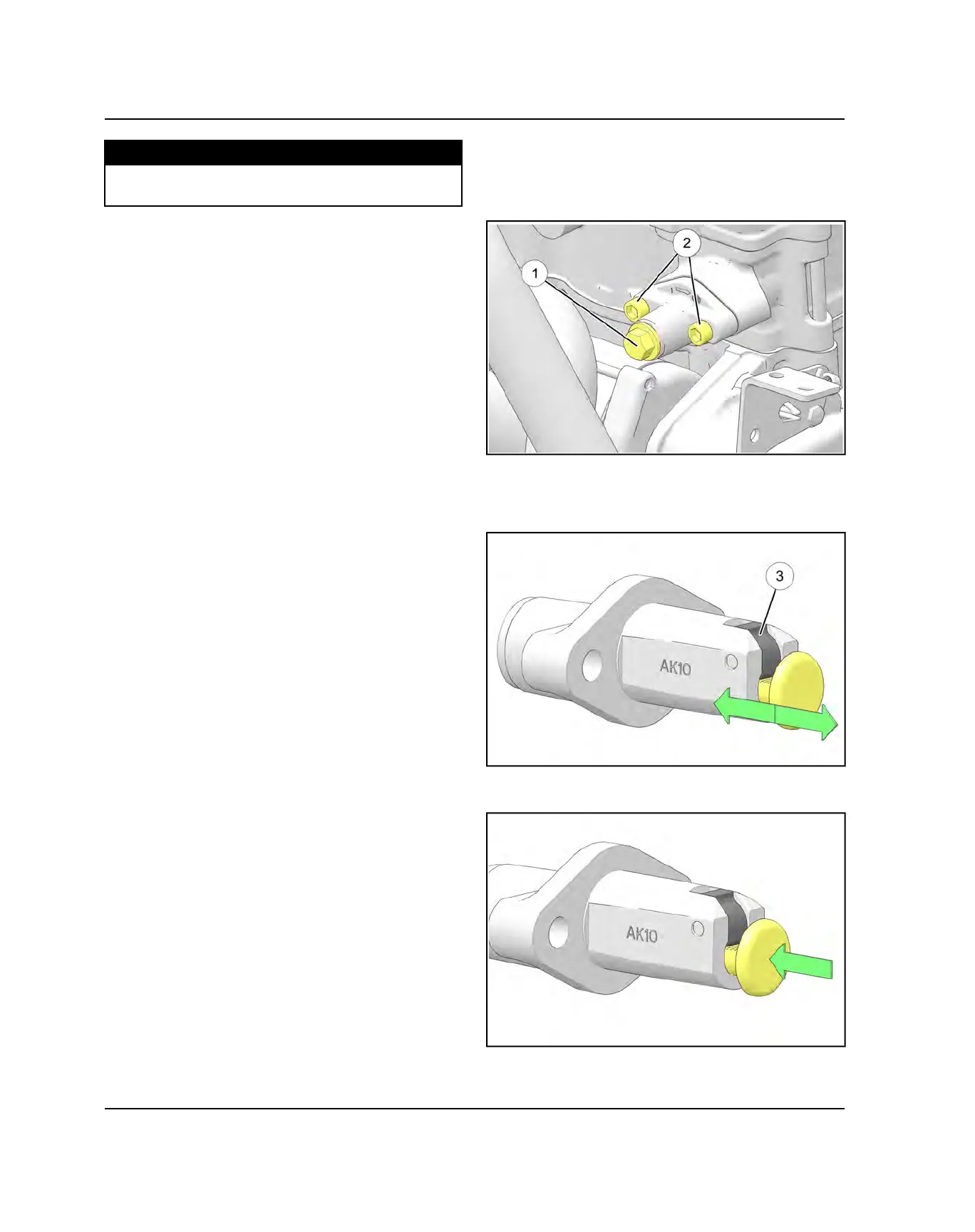

CAM CHAIN TENSIONER INSPECTION

1. Locate the cam chain tensioner on the MAG side of

the engine near the starter.

2. Remove the plunger bolt

and the spring.

3. Remove the two tensioner mounting bolts

4. Push on the tensioner lock

and manually move the

plunger in and out. It should move freely. If it does not

move freely, replace the tensioner assembly.

5. Retract the plunger all the way in and install into the

cylinder.

6. Install the two mounting bolts. Torque fasteners to

specification.
