9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

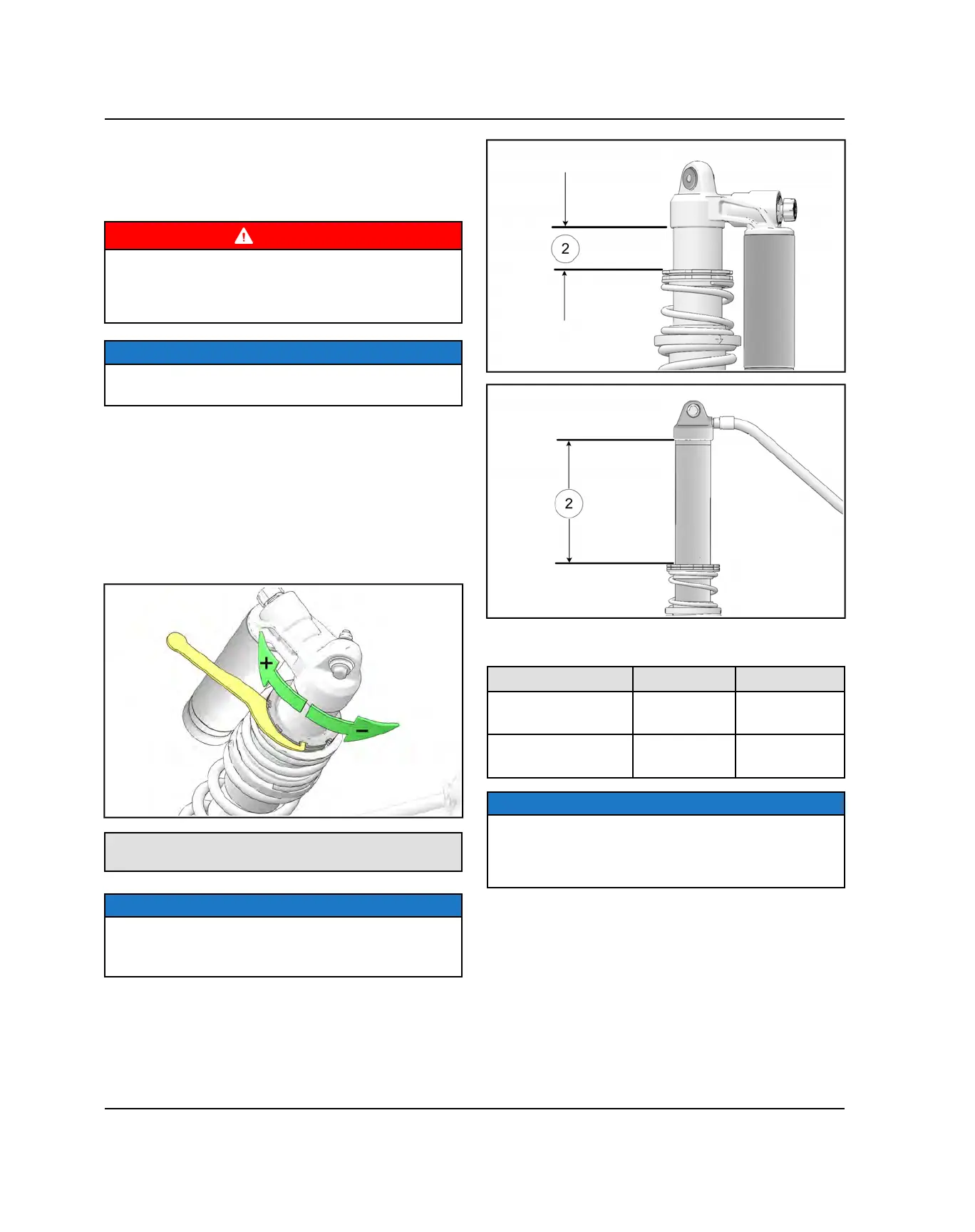

SPRING ADJUSTMENT
The front and rear shocks have a ride height adjustment.
Suspension springs may be adjusted to suit different
riding conditions or vehicle payloads.
WARNING
Uneven adjustment may cause poor handling of the
vehicle, which could result in an accident and serious
injury or death. Always adjust both the left and right
spring equally.
NOTE
Refer to the shock illustrations within this procedure for
spring measurement location.
The factory setting is appropriate for nearly all riding
conditions.
If desired, the spring setting may be adjusted to maintain
vehicle clearance height when carrying loads.
1. Raise and safely support front or rear of the vehicle
off the ground to allow the suspension to fully extend.
2. Using the shock spanner/spreader tool included in
the vehicle’s tool kit, turn the adjustment collar to
increase or decrease ride height.
Shock Spanner / Clutch Spreader Tool:
2878925
NOTE
DO NOT increase the spring adjustment
w
by more
than one inch (25.4 mm) over the factory setting without
verifying loaded ride height.
Spring Adjustment - Factory Setting
FRONT REAR
RZR XP Turbo
1.90″ (4.83
cm)
8.31″ (21.11
cm)
RZR XP 4 Turbo
1.70″ (4.32
cm)
7.10″ (18.02
cm)
NOTE
Always return the spring adjuster to the factory setting
after the load is removed from the vehicle. The
increased suspension height will negatively impact
vehicle stability when operating without a load.
STEERING / SUSPENSION
