10.10
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

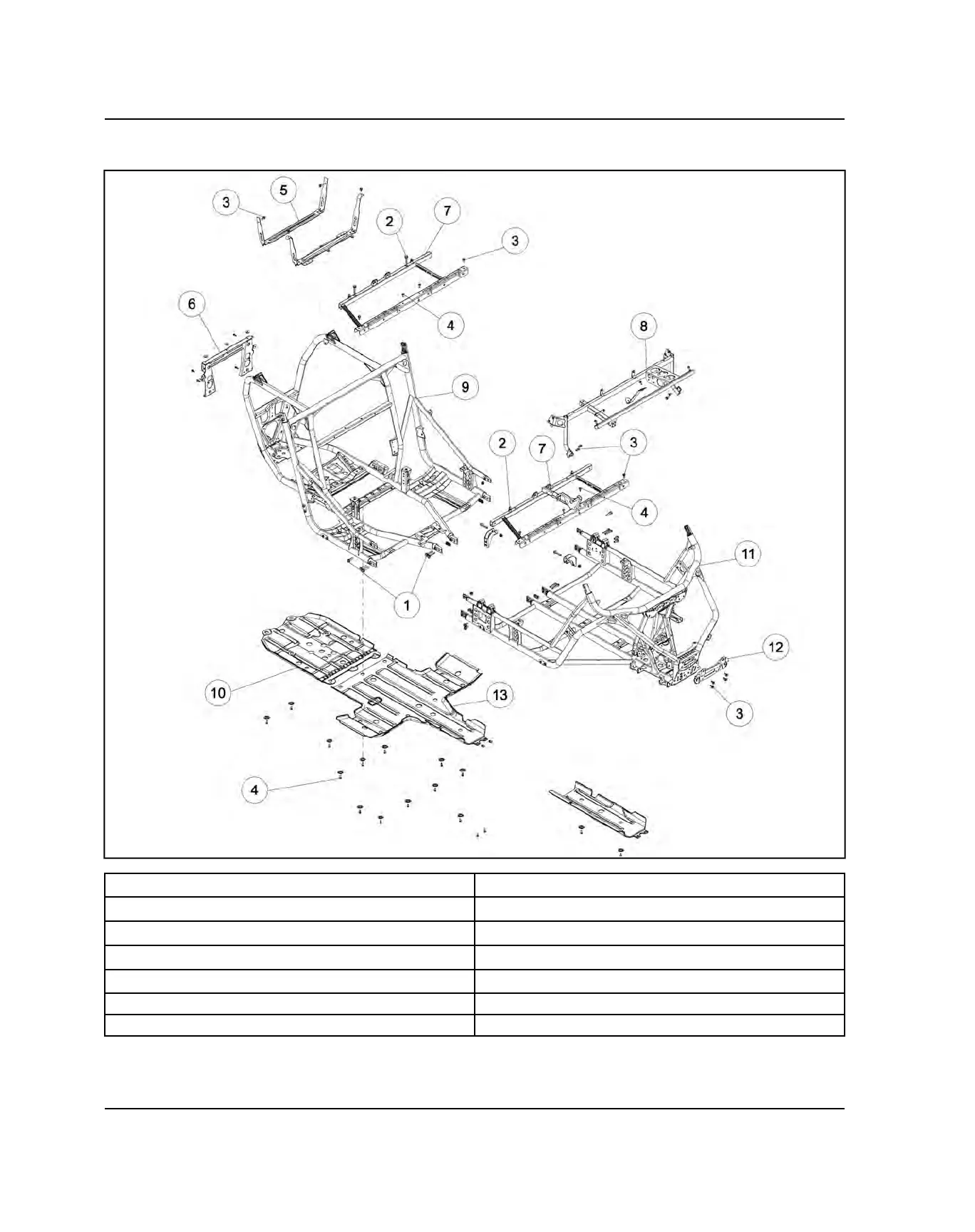

CHASSIS / MAIN FRAME (XP4)
q
Frame Fasteners 40 ft-lb (54 Nm)
i
Dash Support
w
Seat Frame Fasteners (rear) 30 ft-lb (41 Nm)
o
Rear Frame
e
Fasteners 14 ft-lb (19 Nm)
a
Rear Skid Pan
r
Fasteners 8 ft-lbs (11 Nm)
s
Front Frame
t
Cargo Box Support
d
Bumper Bracket
y
Muffler Mount Bracket
f
Front Skid Pan
u
Seat Frame
BODY / FRAME
