9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual

7.31

FRONT GEARCASE REMOVAL

1. Raise and support vehicle

2. Place gear selector in neutral.

3. Refer to FRONT DRIVE SHAFT, page and

remove both front drive shafts from the front

gearcase.

4. Remove the front section of the prop shaft (see

Chapter 7 – FRONT PROPSHAFT SERVICE,

page ).

5. Disconnect the wire harness for the front gearcase

and remove the harness from the retaining dart.

6. Remove the vent line from the front gearcase and

plug vent line fitting.

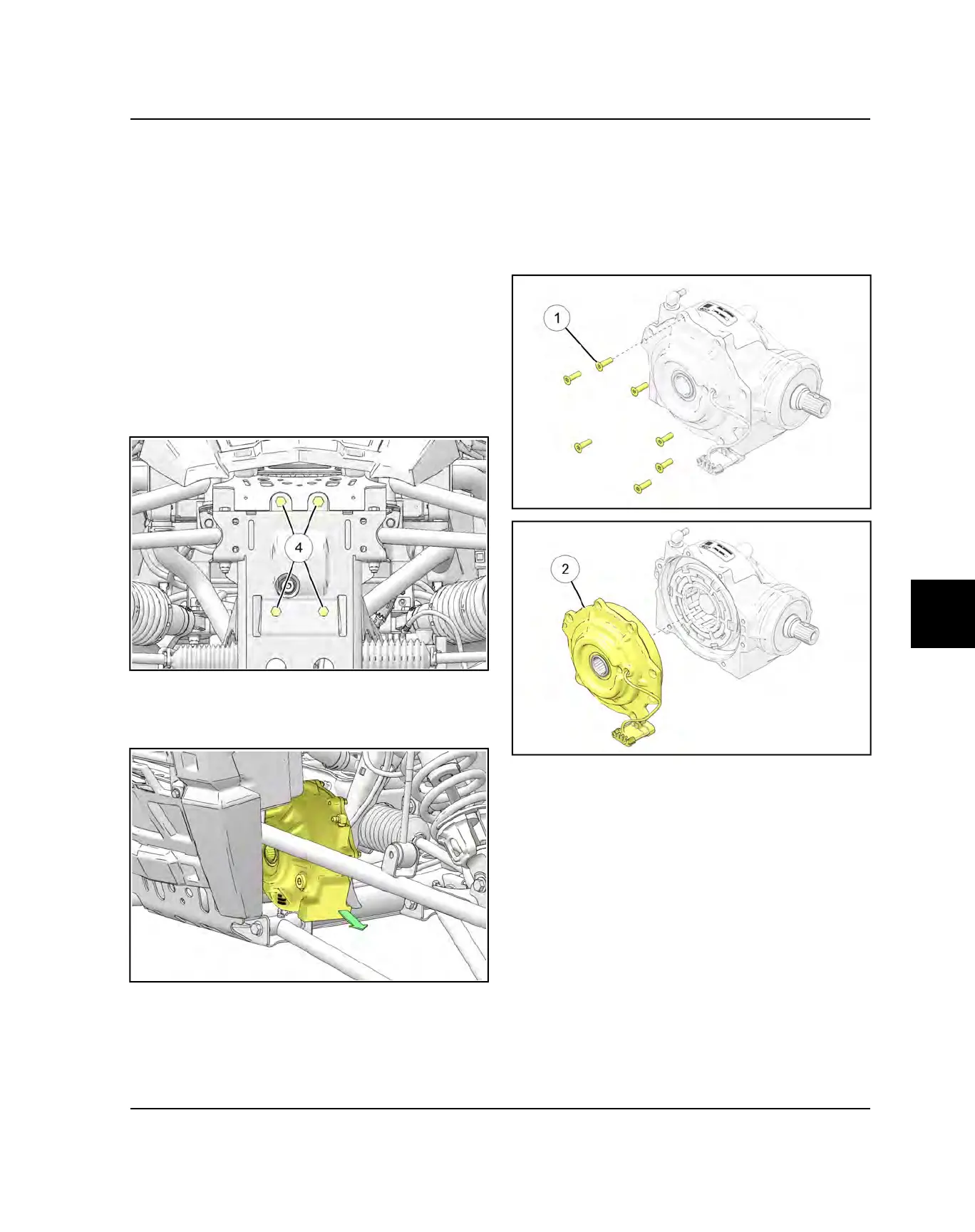

7. Remove the four bolts

securing the front gearcase

to the frame.

8. Rotate front of gearcase up so the input shaft is

facing down. Lift and remove the gearcase from the

front LH wheel well area and slide it out of the vehicle

above the upper A-arm.

FRONT GEARCASE DISASSEMBLY /

INSPECTION

1. Drain and properly dispose of gearcase fluid.

Remove any metal particles from the drain plug

magnet.

2. Remove the seven cover screws

and remove the

cover plate

assembly.

FINAL DRIVE
