9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual

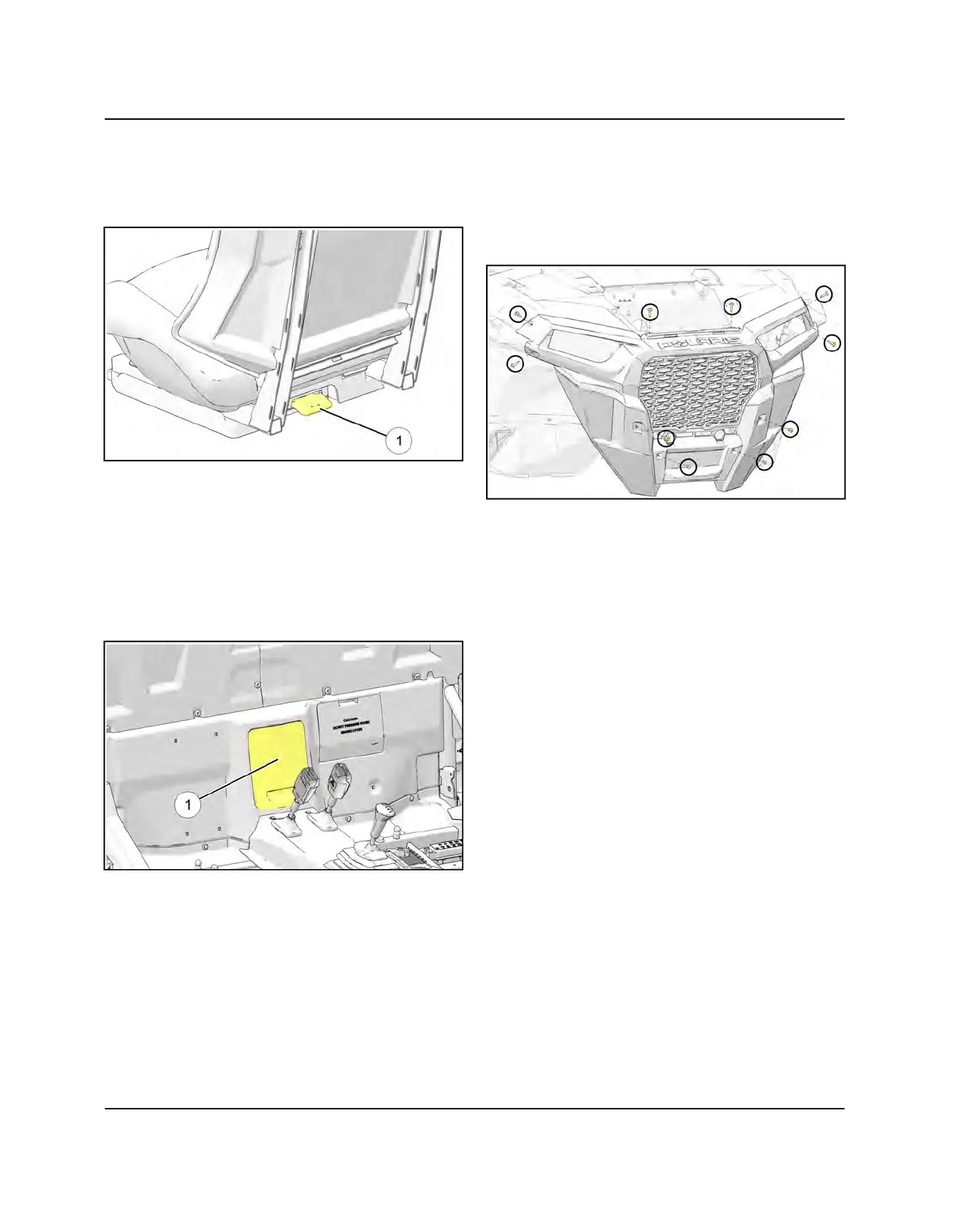

BODY COMPONENT REMOVAL

SEATS

1. To remove any of the seats, lift upward on the latch

lever

located behind the seat bottom.

2. Lift upward and forward on the seat while lifting up

on the latch lever and remove the seat from the

vehicle.

ENGINE SERVICE PANEL

1. Remove the seats:

• Remove the driver and passenger seats

2. Lift the panel upward and towards the front of the

vehicle to remove the panel

FRONT BUMPER

1. Remove the hood access panel.

2. Disconnect the front headlight connectors.

3. Remove the ten Torx screws retaining the upper,

middle and lower portion of the bumper.

4. Pull out on the front bumper to remove the bumper,

headlights and radiator deflector as an assembly.

5. If replacing the front bumper, remove both headlights

and the radiator deflector.

BODY / FRAME

Polaris RZR XP Turbo User Manual
