CPS REPLACEMENT
1. If not done already; disconnect the CPS harness
connector (see Chapter 4 – CPS Test, page 4.32).

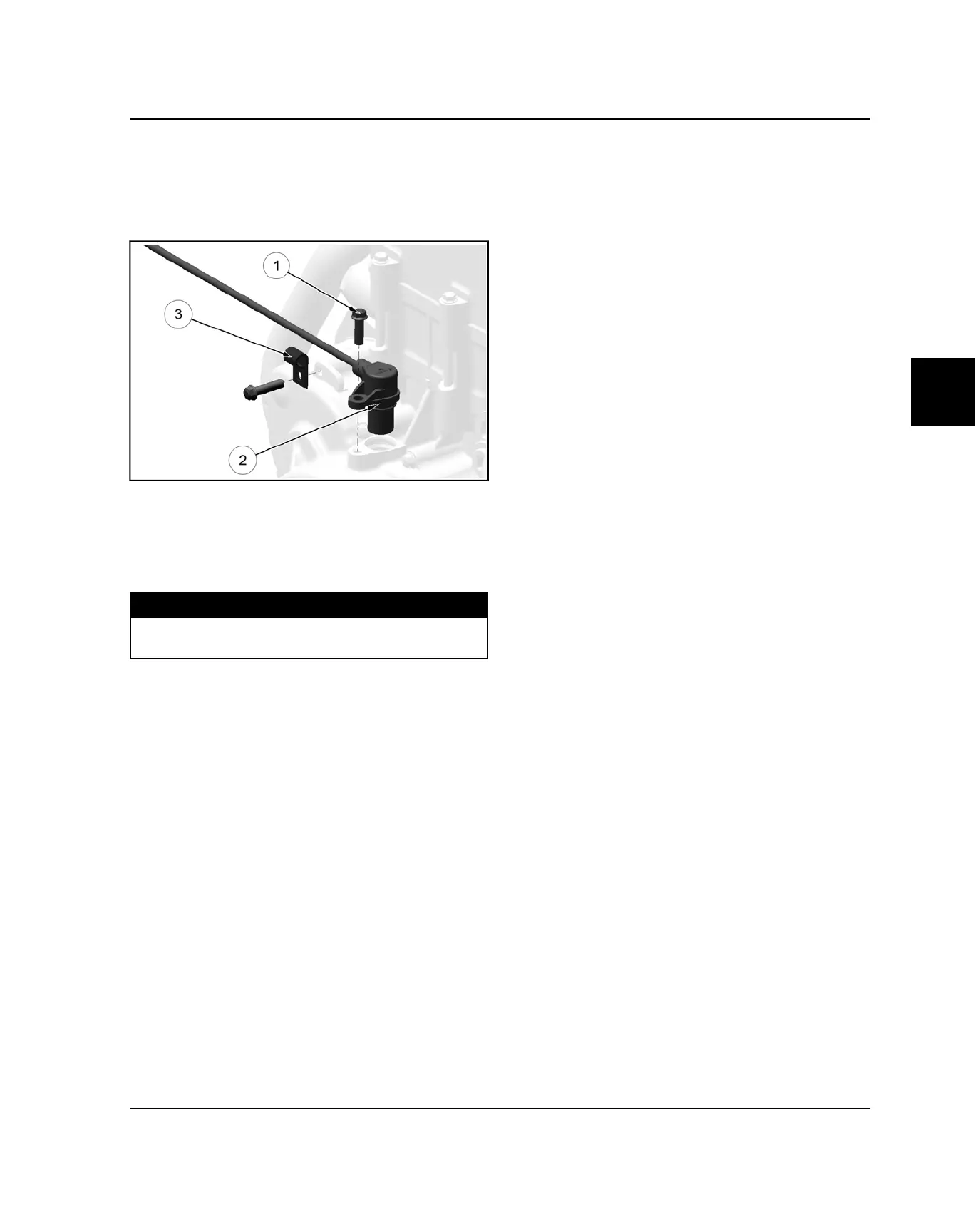

2. Using an 8mm socket, remove the CPS retaining bolt
q
and remove the sensor
w
from the stator cover.
3. Unclip the wire harness retainer
e
and remove the
CPS harness from the retainer to allow replacement.
4. Install new sensor using a light coating of oil on the
O-ring to aid installation.
5. Torque the CPS retaining bolt to specification.
TORQUE
CPS Retaining Bolt:
9 ft-lb (12 Nm)
