9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

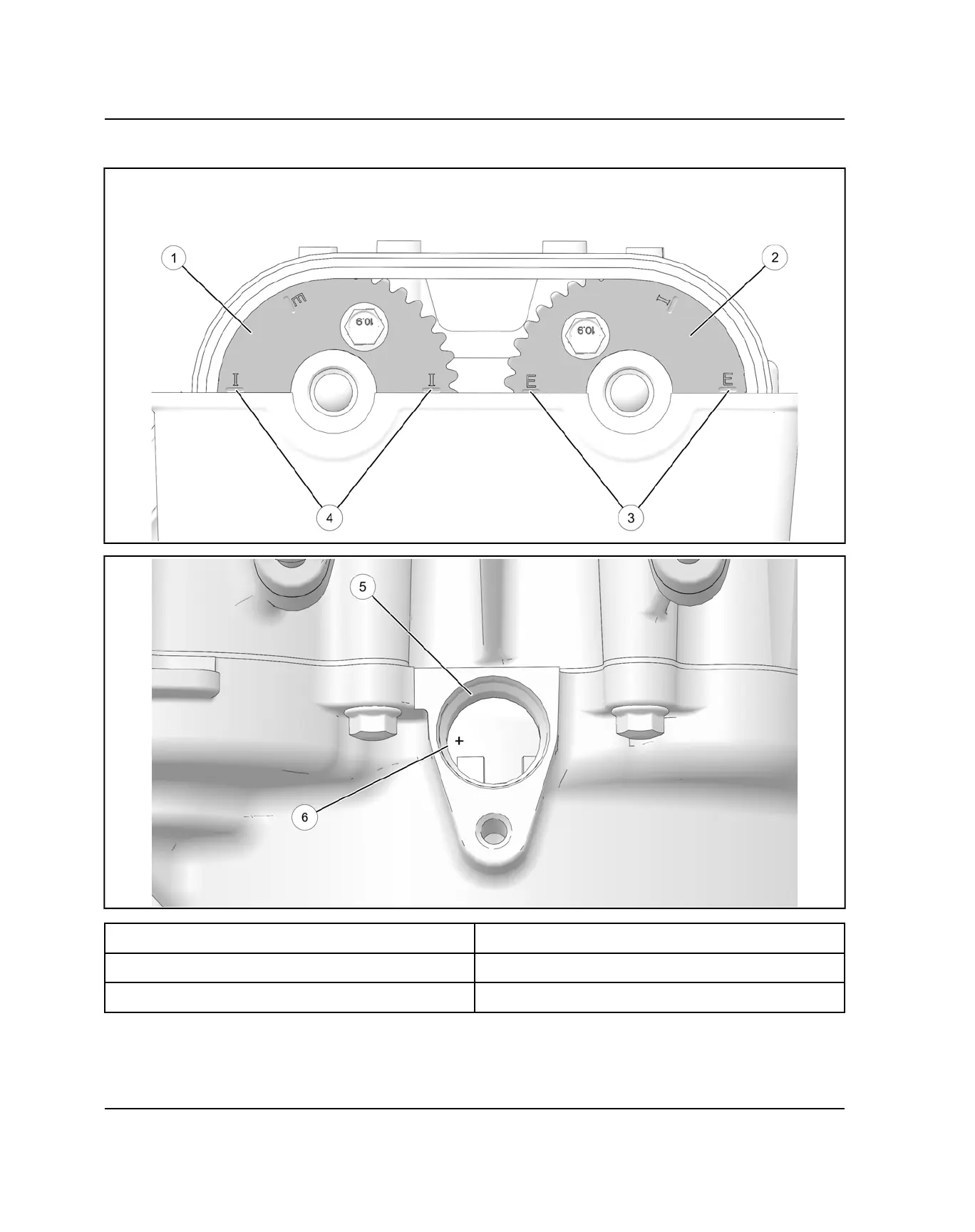

CAMSHAFT TIMING QUICK REFERENCE
q
Intake Cam
r
Align Exhaust Marks with Top of Head
w
Exhaust Cam
t
CPS Mounting Hole
e
Align Intake Marks with Top of Head
y
Align Flywheel Mark (+) to edge of Mounting Hole
