9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual

8.5

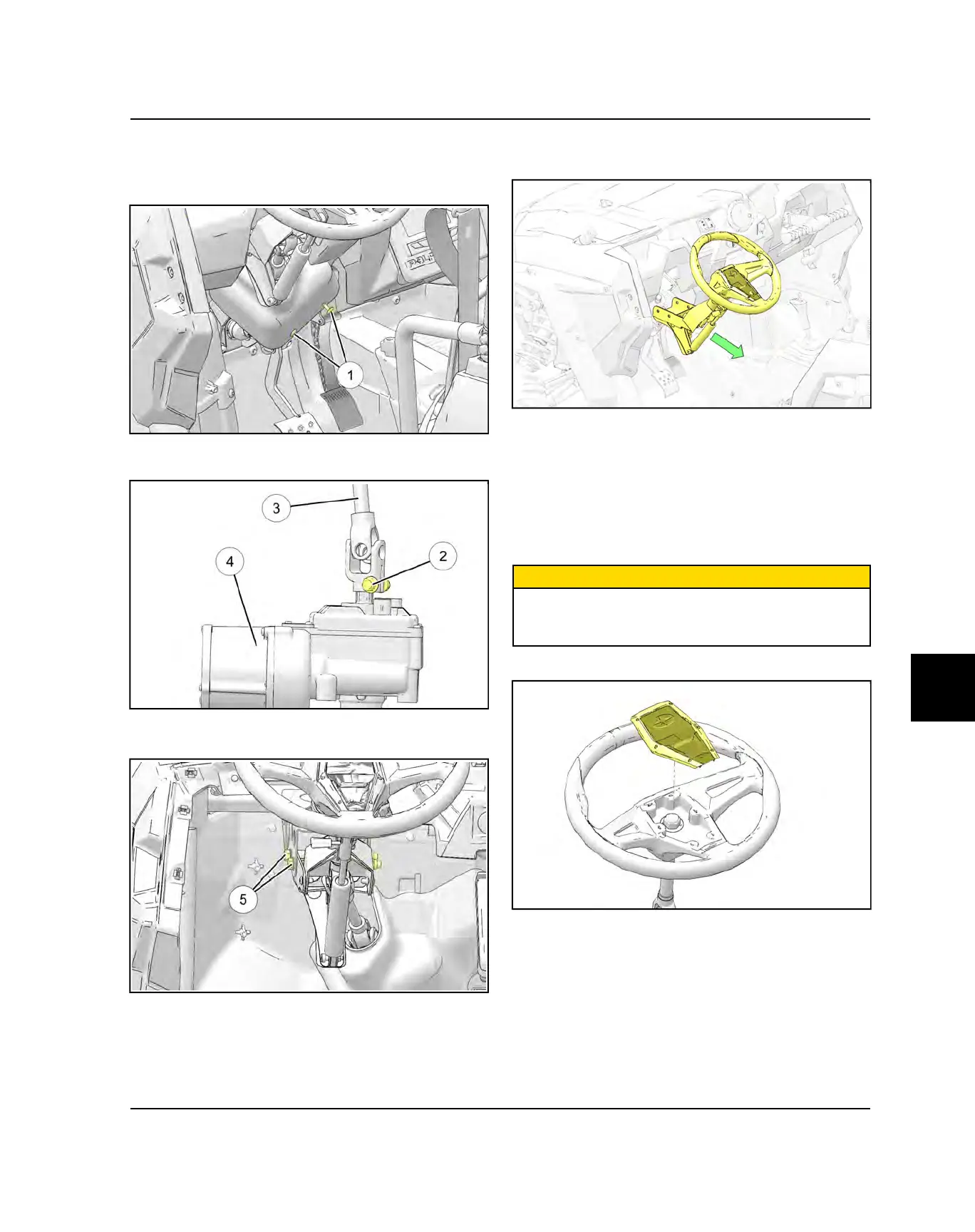

UPPER STEERING SHAFT REMOVAL

1. Remove the two Torx fasteners

retaining the black

plastic cover and remove the cover from the vehicle.

2. Remove the pinch bolt retaining the upper steering

shaft to the power steering unit.

3. Lift the steering wheel up and remove the fasteners

that retain the steering column.

4. Remove the steering shaft, steering column and

steering wheel from the vehicle as an assembly.

5. If replacing the upper steering shaft or steering wheel,

refer to Steering Wheel Removal, page 8.5.

STEERING WHEEL REMOVAL

1. Remove the upper steering shaft, pivot tube and

steering wheel as an assembly before attempting to

remove the steering wheel. Refer to Upper Steering

Shaft Removal, page 8.5.

CAUTION

Striking the steering wheel or steering shaft while

installed in the vehicle can permanently damage the

EPS unit and cause a Power Steering Fault.

2. Remove the steering wheel cap.

3. Loosen the nut and back it half way off the steering

shaft.

4. Place the assembly in a vise.
