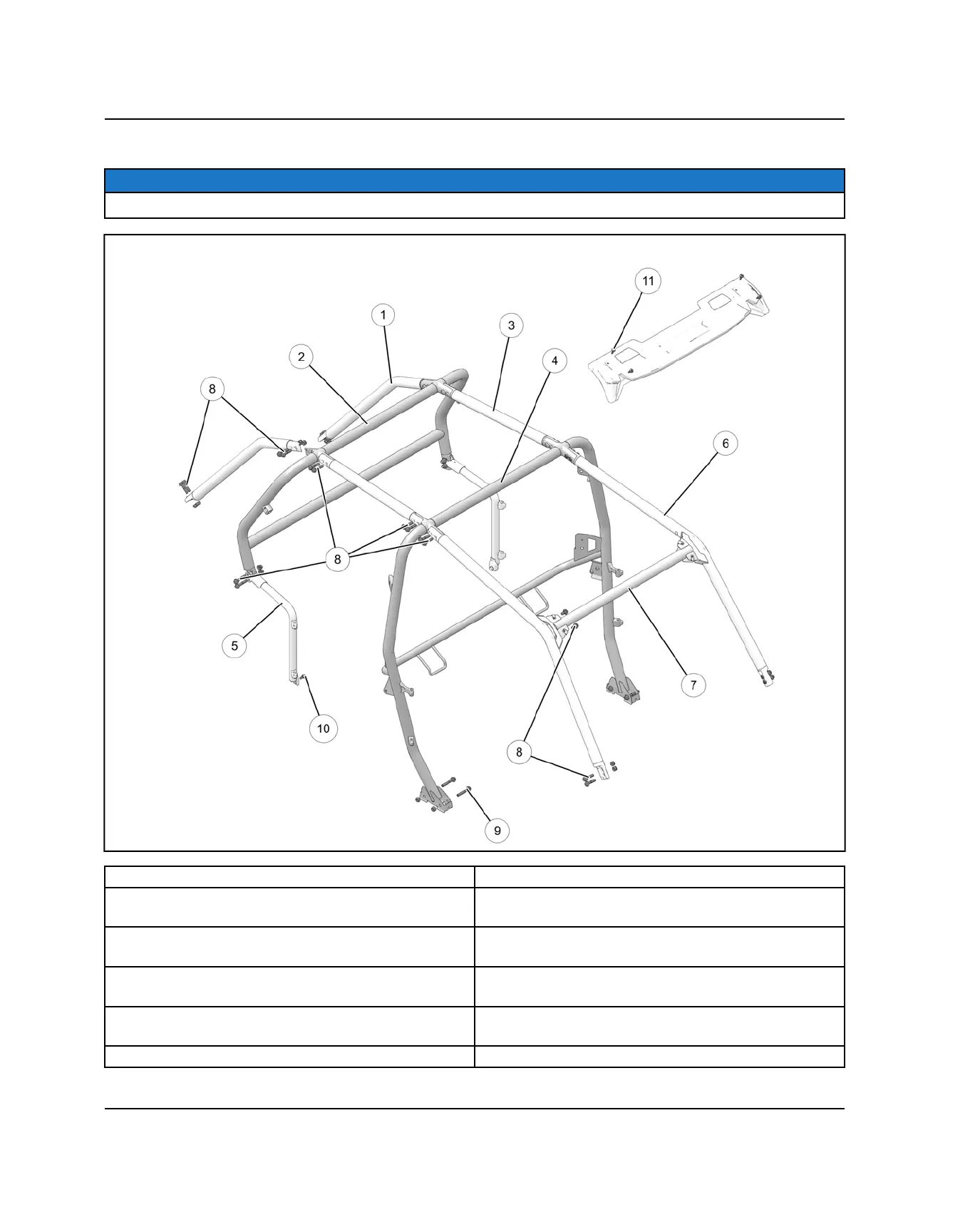

CAB FRAME ASSEMBLY XP 4
NOTE
Finger tighten all components until cab frame is completely assembled on vehicle then tighten to specification.
q
ROPS Rear
u
ROPS Front
w
ROPS Rear Hoop
i
Cab Frame Fasteners
40 ft-lb (54 Nm)
e
ROPS Brace
o
Cab Frame Mid Hoop Mounting Fasteners
17 ft-lb (23 Nm)
r
ROPS Mid Hoop
a
Hip Bolster Bottom Fasteners
14 ft-lb (19 Nm)
t
Hip Bolster
s
Visor Fasteners
8 ft-lb (11 Nm)
y
ROPS Main
