9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
6.5
TRANSMISSION SERVICE

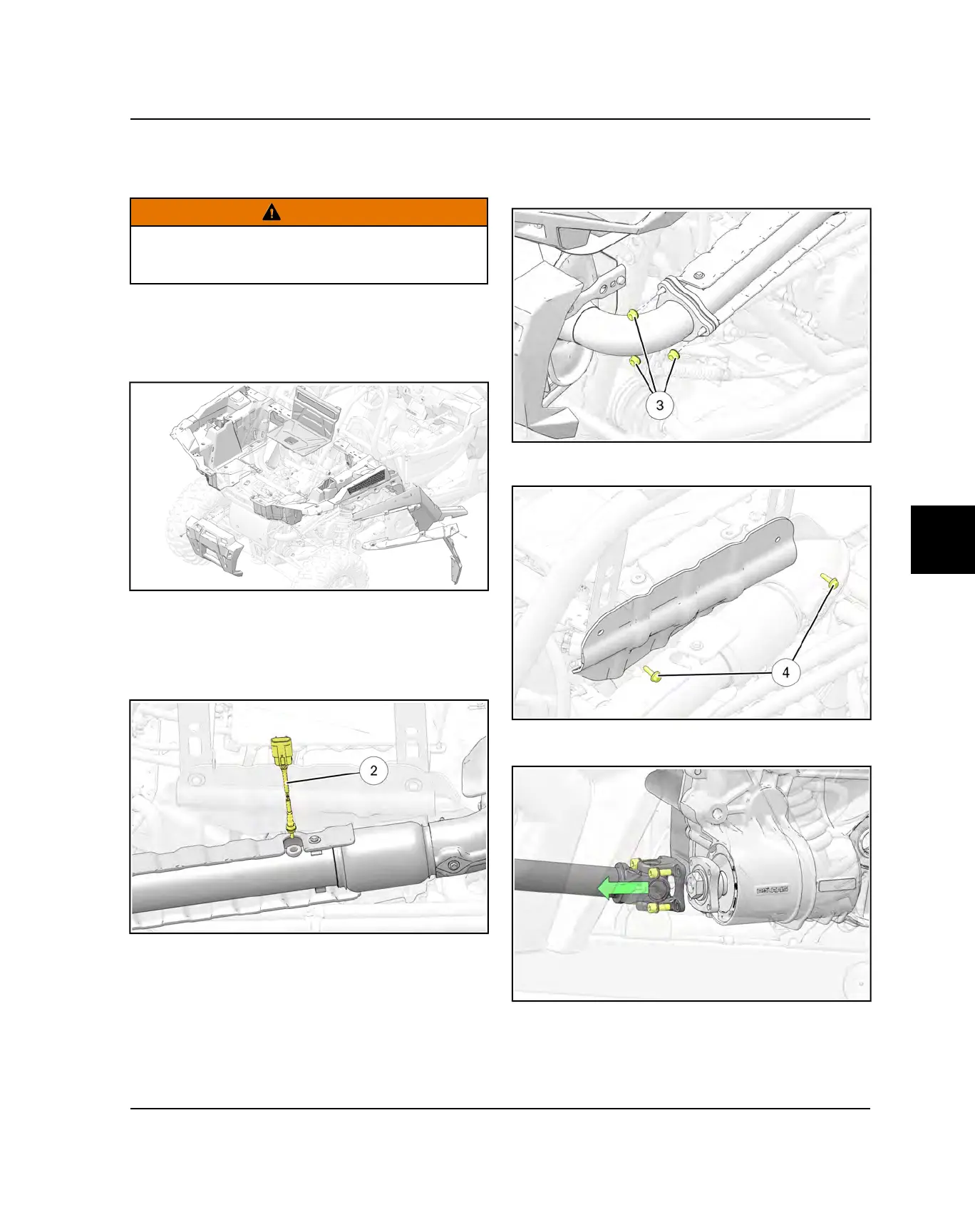

TRANSMISSION REMOVAL
CAUTION
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this
procedure. Always wear eye protection.
1. Disconnect the battery.
2. If internal transmission repair is required, drain the
transmission lubricant (see Chapter 2 – Transmission
Oil Change, page 2.46.
3. Remove rear fender flairs and fenders.
4. Remove rear fascia.
5. Remove rear cab frame.
6. Remove cargo box.
7. Remove cargo box brackets. exhaust shields on
passenger side, wire/hose clamps
q
on driver’s side.
8. Disconnect and remove the oxygen sensor
w
.
9. Remove the three fasteners
e
retaining the muffler to
the exhaust pipe.
10.Remove two fasteners
r
retaining the engine heat
shield above O2 sensor.
11. Disconnect the four fasteners retaining the prop shaft
to the transmission output shaft.
12.Remove both rear half shafts. See Rear Drive Shaft
Removal, page 7.13
TRANSMISSION
