9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
6.7

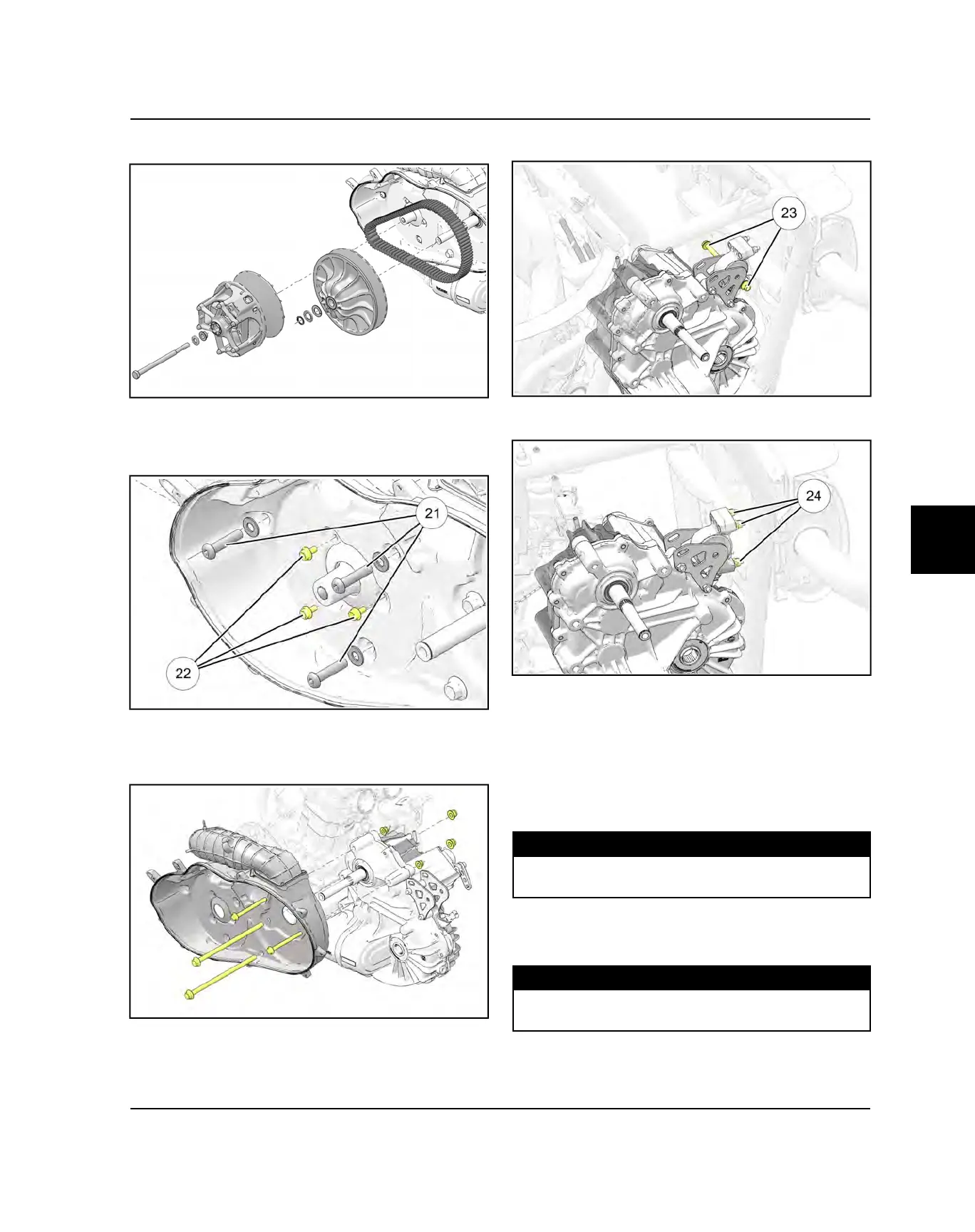

23.Remove secondary clutch, belt and primary clutch.
24.Support the bottom side of the engine with wood
blocks or from the top side with an engine lift.
25.Remove the three allen screws
2!
retaining inner
cover to engine.
26.Remove three bolts
2@
retaining inner cover to engine
(over crank seal).
27.Remove fasteners retaining inner cover to
transmission.
28.Remove fasteners retaining inner cover to engine/
trans joint. Discard PVT inner cover o-ring around the
crankshaft snout.
29.Remove the rear transmission isolator fasteners
2#
.
30.Remove the three fasteners
2 $
retaining the rear
isolator to the frame bracket.
31.Remove the transmission out the driver’s side of the
vehicle.
TRANSMISSION INSTALLATION
1. Install transmission into the chassis through the
driver’s side.
2. Install rear transmission mount to the frame bracket.
Torque fasteners to specification.
TORQUE
Rear Transmission Mount Fasteners:
22 ft-lb (30 Nm)
3. Install transmission isolator bolt through the
transmission bracket and isolator. Torque fasteners to
specification.
TORQUE
Rear Transmission Isolator Fasteners:
33 ft-lb (45 Nm)
TRANSMISSION
