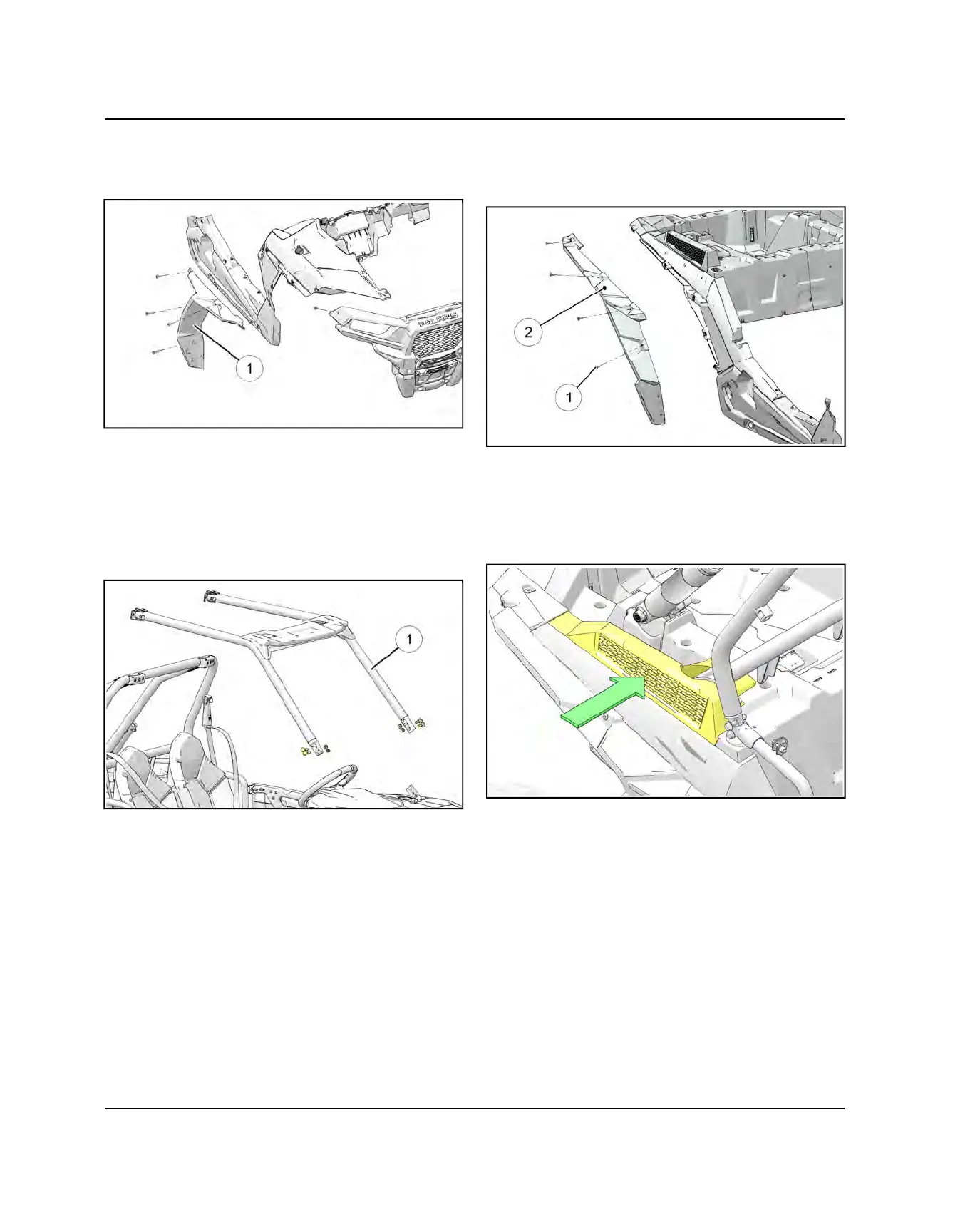

FRONT FENER FLAIR REMOVAL
Remove the six T40 Torx screws and remove fender
flairs
q
from the dash assembly.
FRONT BODY REMOVAL
1. Remove the hood, upper dash and fender flairs.
2. Remove the two T-40 Torx screw that were hidden
beneath the fender flair (one on the outside of the
fender and one on the inside).
3. Remove the front portion of the cab frame assembly.
Refer to Cab Frame Assembly XP, page 10.3
procedure for assembly torque specifications.
4. Remove the front fender.
REAR FENDER / FENDER FLAIR REMOVAL
FENDER FLAIR REMOVAL
1. Remove the three Torx screws
q
.
2. Remove the four plastic rivets on the lower side of the
rear fender flare.
3. Remove the fender flare
w
from the vehicle.
FENDER REMOVAL
1. Remove the PVT and/or Air Intake cover/pre-filter
(engine air intake shown).
2. Remove the four plastic rivets (one of them hidden on
the inside) retaining the rear fender.
3. Remove the one T-40 Torx screw on the top rear of
the fender.
4. Remove the fender from the vehicle.
