9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
3.13

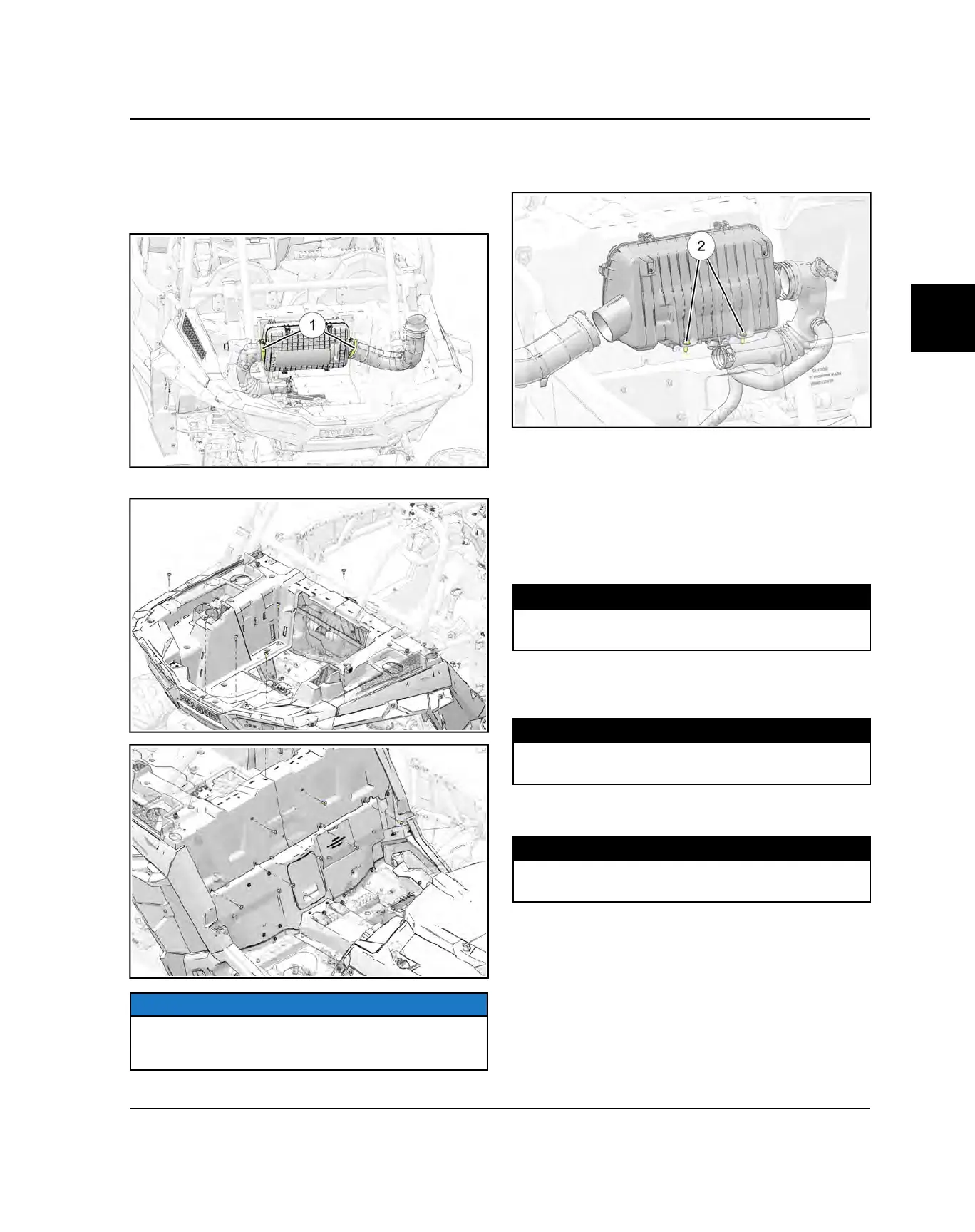

AIR BOX REMOVAL
1. Remove the seats.
2. Remove the engine access panel.
3. Loosen the band clamps
q
retaining the intake hoses
to the air box.
4. Remove the fasteners retaining the cargo box.
NOTE
The cargo box only needs to be lifted up slightly to gain
access to the air box fasteners. The cargo box or cab
frame does not need to be removed.
5. Lift the cargo box nearest to the front of the vehicle so
you can access the lower air box mounting bolts
w
and remove the two bolts.
6. Remove the air box through the cargo box access
panel.
AIR BOX INSTALLATION
1. Install the air box through the cargo box access
panel.
2. Install the intake hoses onto the air box. Tighten hose
clamps to specification.
TORQUE
Intake Hose Clamps:
35 in-lb (4 Nm)
3. Lift the cargo box enough to access the lower air box
mounting points. Install fasteners and torque to
specification.
TORQUE
Lower Air Box Mounting Fasteners:
8 ft-lb (11 Nm)
4. Install the cargo box fasteners previously removed.
Torque fasteners to specification.
TORQUE
Cargo Box Fasteners:
8 ft-lb (11 Nm)
5. Install engine access panel.
6. Install both seats.
ENGINE / COOLING SYSTEM
