9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
8.25

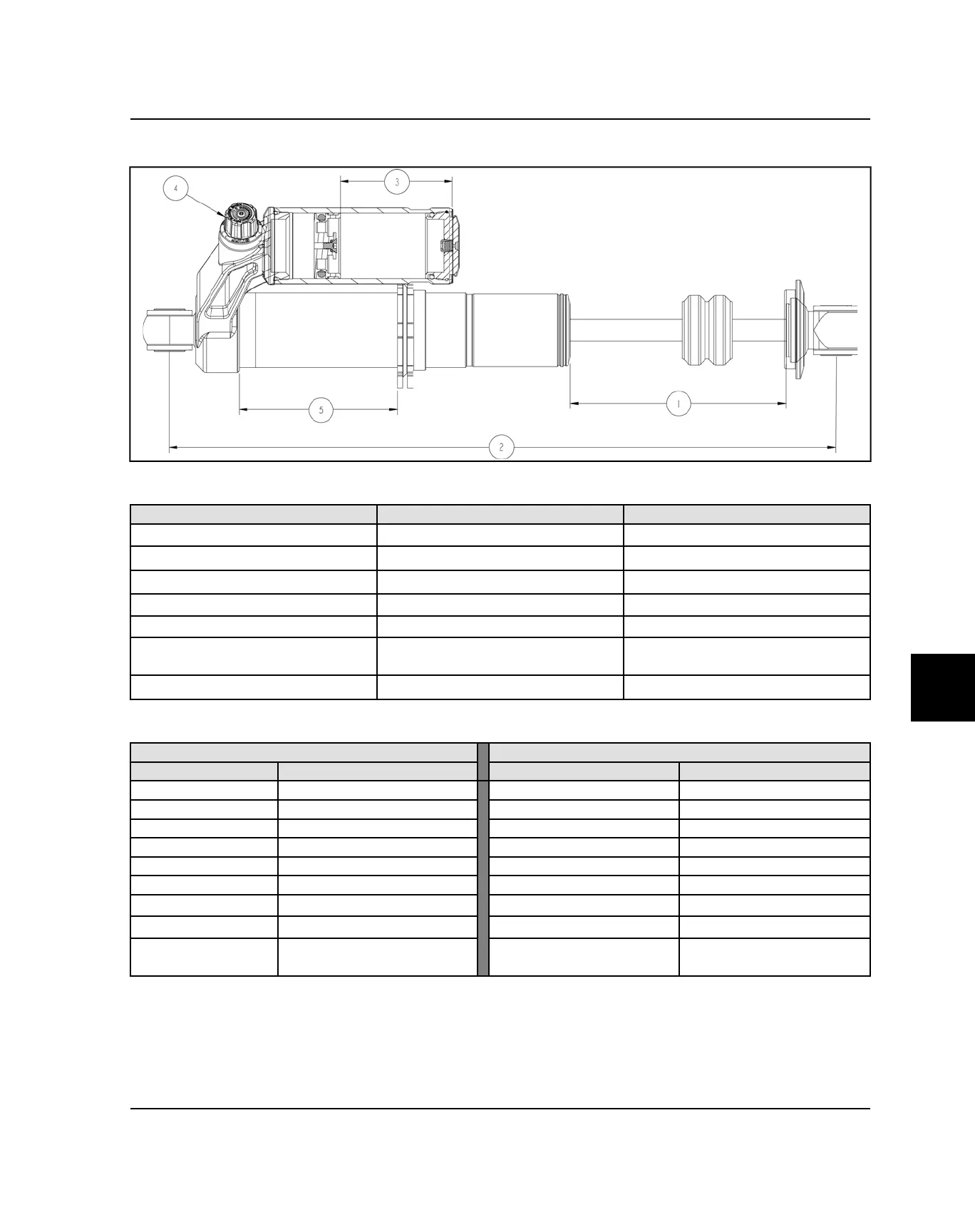

FOX 2.5″ FRONT SHOCK INFORMATION
Front Shock Specifications
RZR XP TURBO RZR XP 4 TURBO
Shock Travel
q
8.44″ (21.44 cm) 8.44″ (21.44 cm)
Extended Length
w
25.09″ (63.73 cm) 25.09″ (63.73 cm)
IFP Depth
e
5.70″ (14.48 cm) 5.70″ (14.48 cm)
Nitrogen Pressure 100 psi (690 kPa) +/- 5% 100 PSI (690 kPa) +/- 5%
Gas Shock Oil
2874124 (qt.) 2874124 (qt.)
Compression Adjustment (factory)
r
12 clicks CCW from full firm setting/
full clockwise
12 clicks CCW from full firm setting/
full clockwise
Spring Adjustment Setting
t
1.90″ (4.83 cm) 1.70″ (4.32 cm)
Front Shock Valving
RZR XP TURBO RZR XP 4 TURBO
COMPRESSION REBOUND COMPRESSION REBOUND
1.600 x 0.006 SB 1.425 x 0.012 1.600 x 0.006 SB 1.425 x 0.012
1.600 x 0.015 1.350 x 0.012 1.600 x 0.015 1.350 x 0.012
1.425 x 0.015 1.250 x 0.012 1.425 x 0.015 1.250 x 0.012
1.350 x 0.015 1.100 x 0.012 1.425 x 0.015 1.100 x 0.012
1.250 x 0.015 0.950 x 0.012 1.350 x 0.015 0.950 x 0.012
1.100 x 0.015 0.800 x 0.012 1.250 x 0.015 0.800 x 0.012
0.950 x 0.015
0.875 x 0.100 (Back Up)
1.100 x 0.015
0.875 x 0.100 (Back Up)
0.800 x 0.015
0.875 x 0.100 (Back Up)
0.900 x 0.015
0.875 x 0.100 (Back Up)
1.570 x 0.128 (Top
Out)
1.570 x 0.128 (Top Out)
