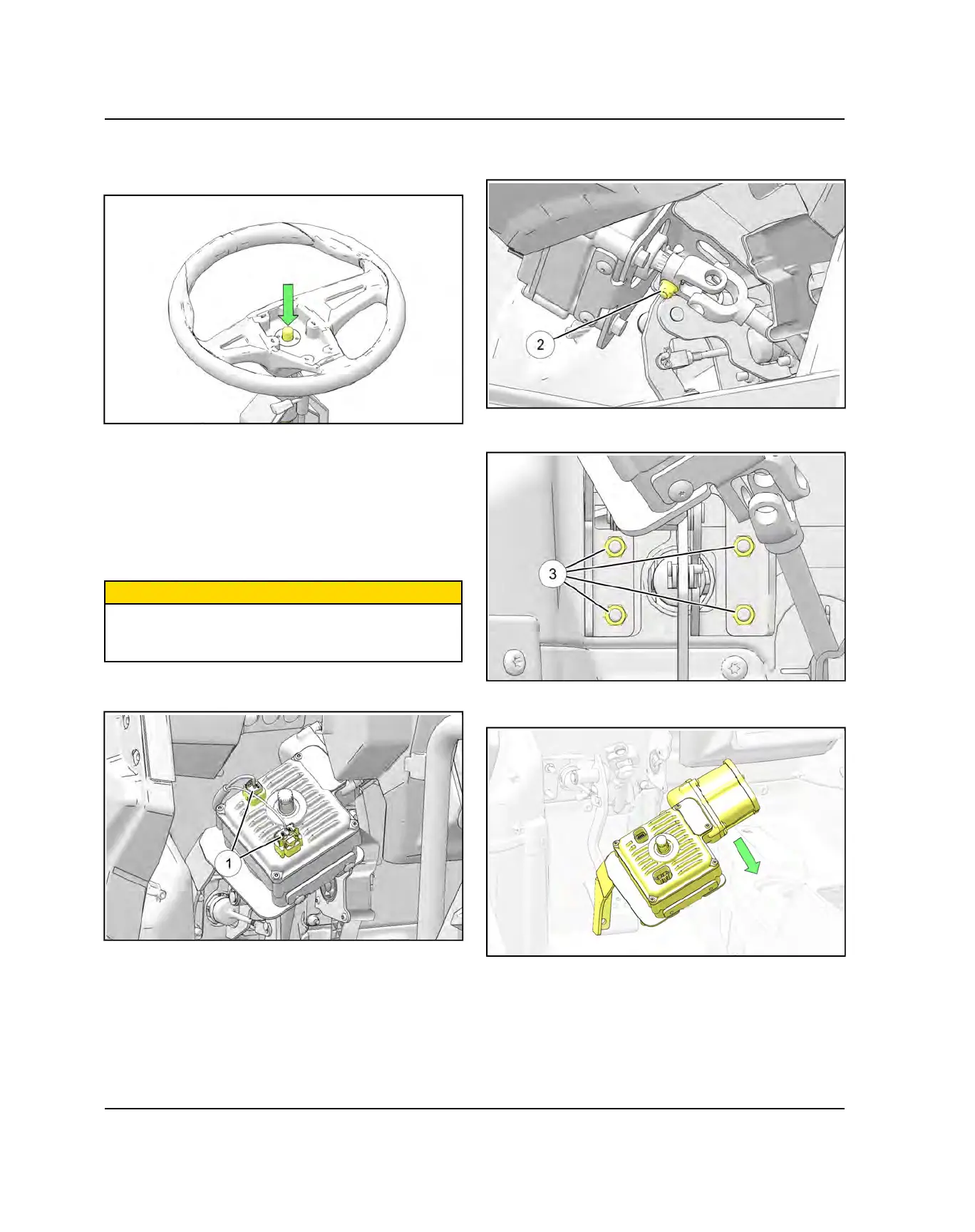

5. Using a large bronze drift and hammer, strike the
steering shaft nut to pop the steering wheel off the
shaft taper.
6. Once the steering wheel pops loose, completely
remove the nut and lift the steering wheel off the
shaft.
POWER STEERING UNIT REMOVAL
1. Remove the upper steering shaft, pivot tube and
steering wheel from the vehicle as an assembly.
Refer to Upper Steering Shaft Removal, page 8.5.
CAUTION
Striking the steering wheel or steering shaft while
installed in the vehicle can permanently damage the
EPS unit and cause a Power Steering Fault.
2. Disconnect the two electrical harnesses
q
from the
power steering unit .
3. Remove the pinch bolt
w
retaining the lower steering
shaft to the power steering unit .
4. While supporting the power steering unit, remove the
four nuts
e
from the mount bracket.
5. Carefully remove the power steering unit and mount
bracket from the vehicle as an assembly.
