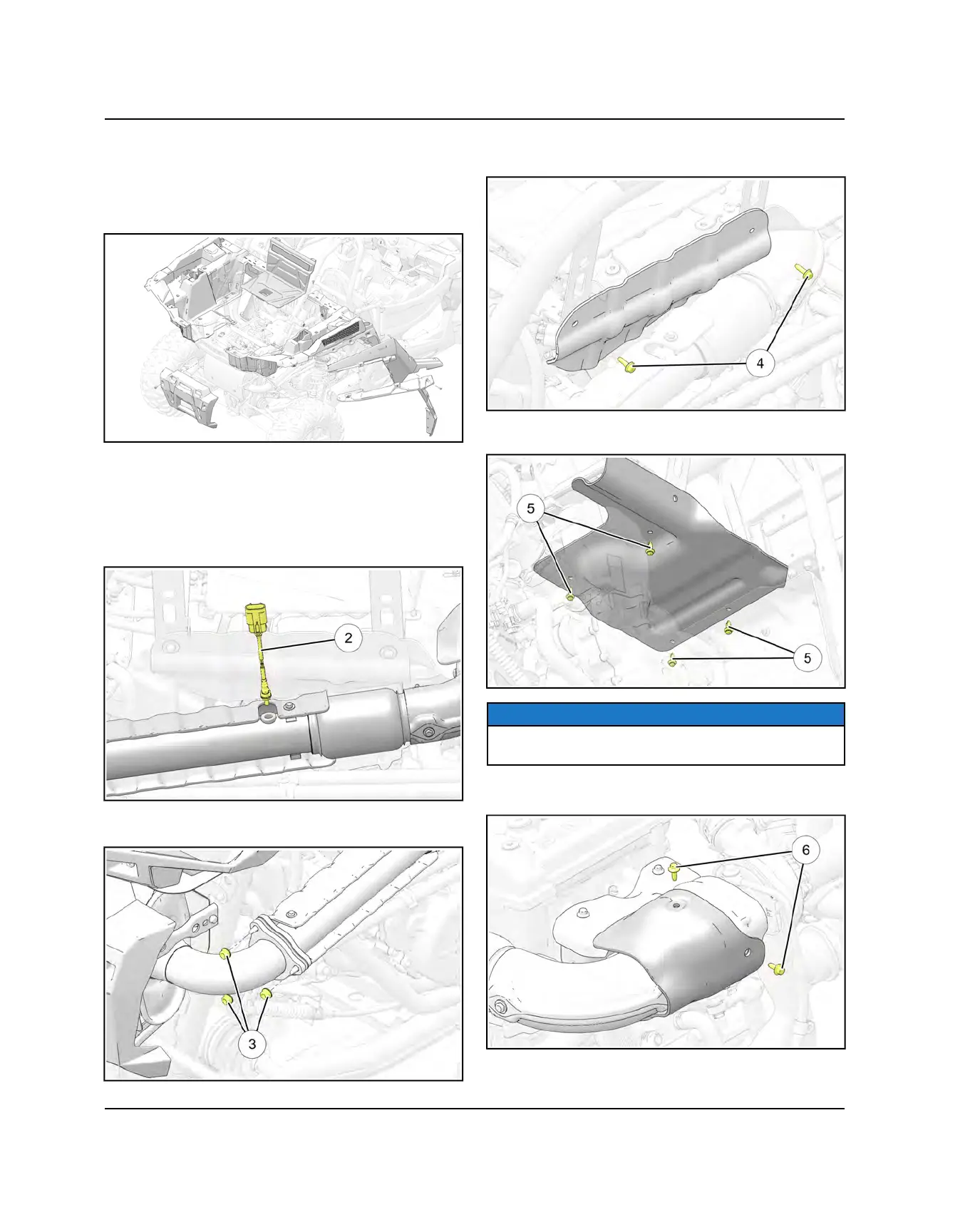

ENGINE REMOVAL
1. Disconnect the battery.
2. Drain coolant and engine oil. SeeEngine Oil and Filter
Change, page 2.29 and Coolant Flush, page 2.37.
3. Remove rear fender flairs and fenders.
4. Remove rear fascia.
5. Remove rear cab frame.
6. Remove cargo box.
7. Remove cargo box brackets. exhaust shields on
passenger side, wire/hose clamps
q
on driver’s side.
8. Disconnect ignition coil.
9. Disconnect and remove the oxygen sensor
w
.
10.Remove the three fasteners
e
retaining the muffler to
the exhaust pipe.
11. Remove two fasteners
r
retaining the engine heat
shield above O2 sensor.
12.Remove the four fasteners
t
retaining the heat
shield above the valve cover.
NOTE
Front fasteners are plastic rivets and rear fasteners are
bolt/washer/nut.
13.Remove the two fasteners
y
retaining the heat shield
to the exhaust pipe / turbo joint.
