MUFFLER REMOVAL

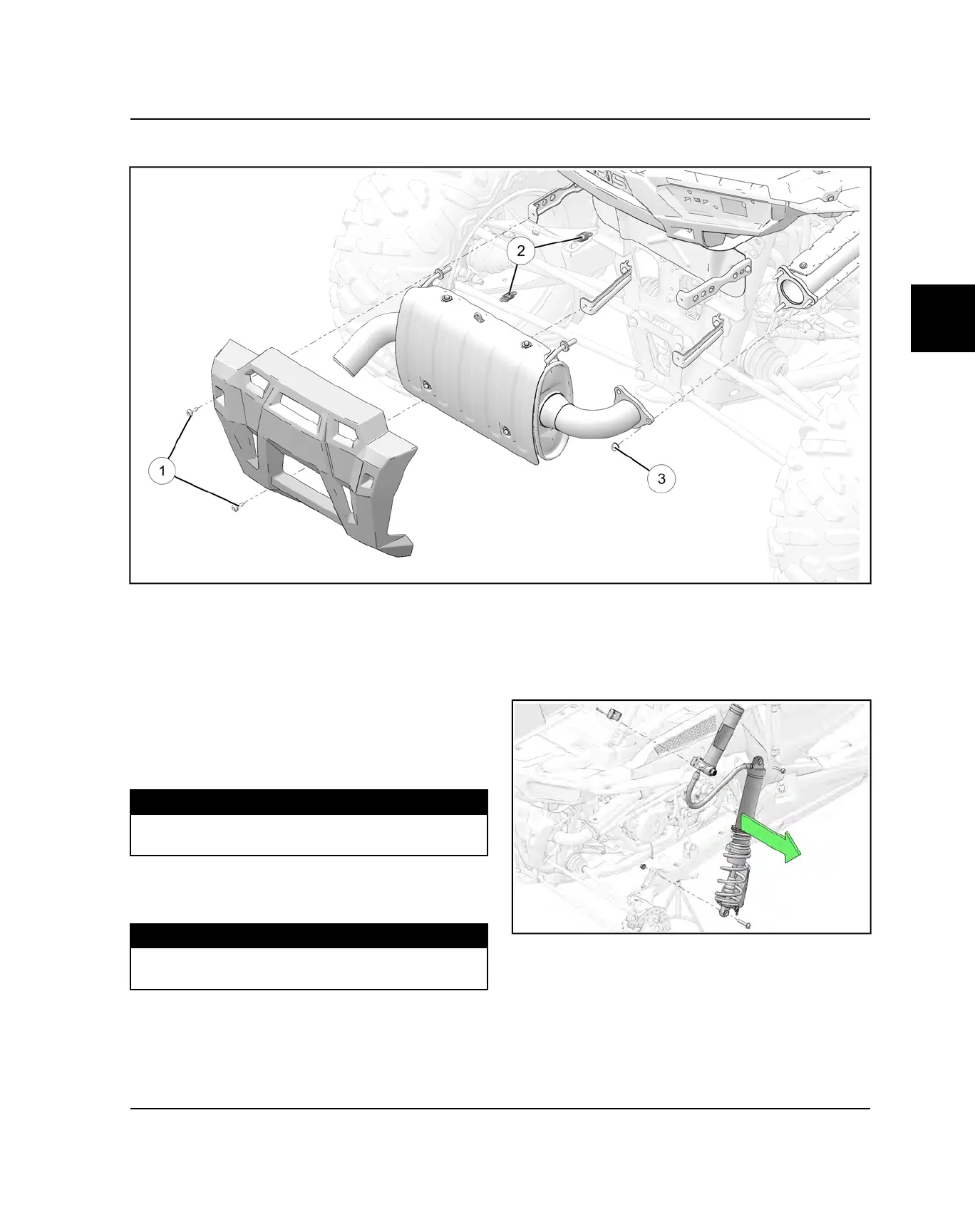

1. Remove the four fasteners
q
retaining the muffler cover / rear fascia .
2. Remove the two muffler springs
w
.
3. Remove the three fasteners
e
retaining the muffler to the exhaust pipe.
4. Pull muffler towards the rear of the vehicle to remove it from the mounting grommets.
MUFFLER INSTALLATION
1. Install the muffler studs into the mounting grommets
on the chassis.
2. Install a new muffler gasket and install the three
fasteners retaining the muffler to the exhaust pipe.
Torque fasteners to specification.
TORQUE
Exhaust Pipe Fasteners:
18 ft-lb (24 Nm)
3. Install the two muffler springs.
4. Install the rear fascia / muffler cover. Torque fasteners
to specification
TORQUE
Rear Fascia / Muffler Cover Screws:
8 ft-lb (11 Nm)
EXHAUST PIPE REMOVAL
1. Lift and secure the vehicle.
2. Remove the right rear shock assembly.
