3.16
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

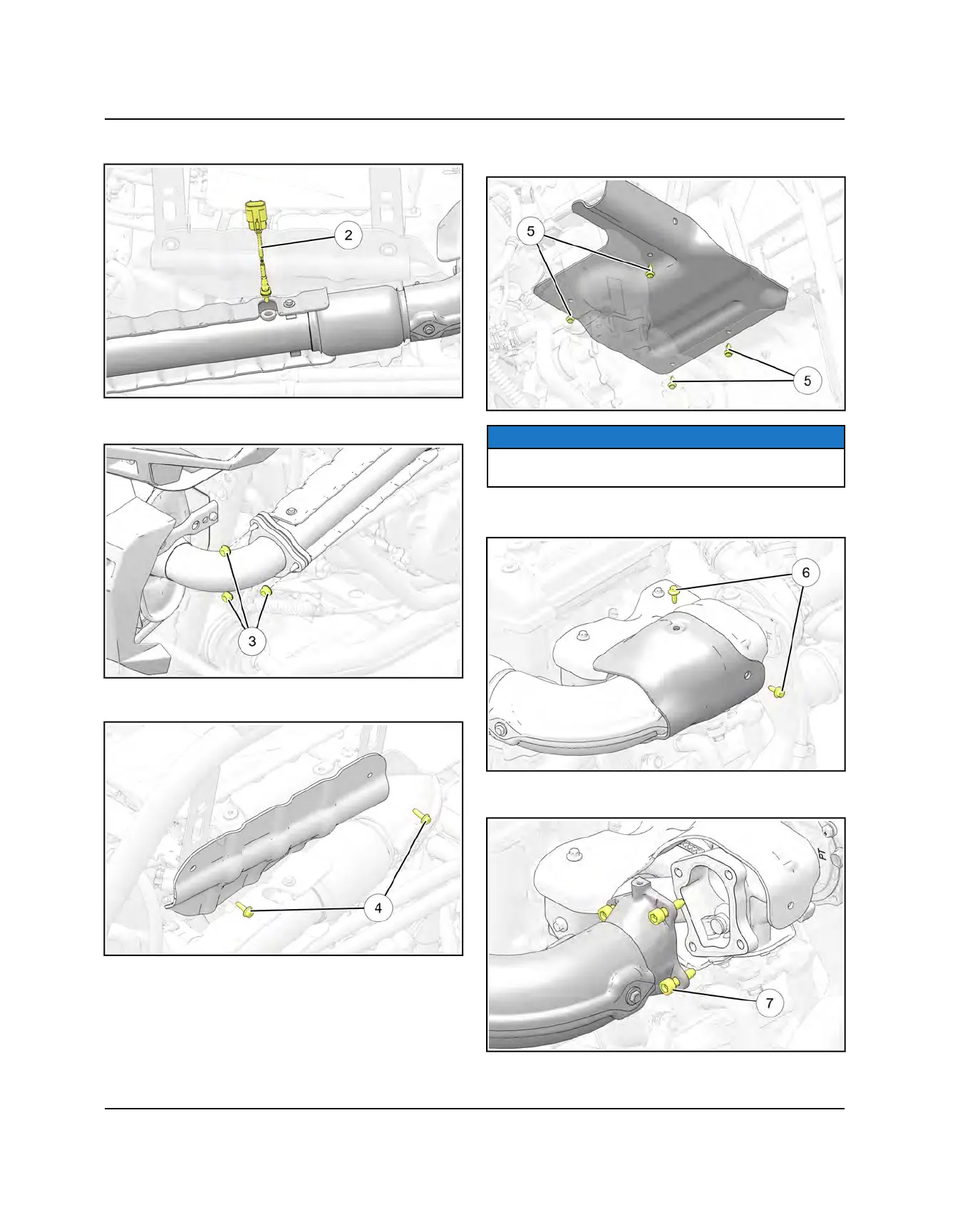

3. Disconnect and remove the oxygen sensor
w
.
4. Remove the three fasteners
e
retaining the muffler to
the exhaust pipe.
5. Remove two fasteners
r
retaining the engine heat
shield above O2 sensor.
6. Remove the four fasteners
t
retaining the heat
shield above the valve cover.
NOTE
Front fasteners are plastic rivets and rear fasteners are
bolt/washer/nut.
7. Remove the two fasteners
y
retaining the heat shield
to the exhaust pipe / turbo joint.
8. Remove the four fasteners
u
retaining the exhaust
pipe to the turbocharger.
9. Remove the exhaust pipe from the chassis.
ENGINE / COOLING SYSTEM
