10
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
10.19

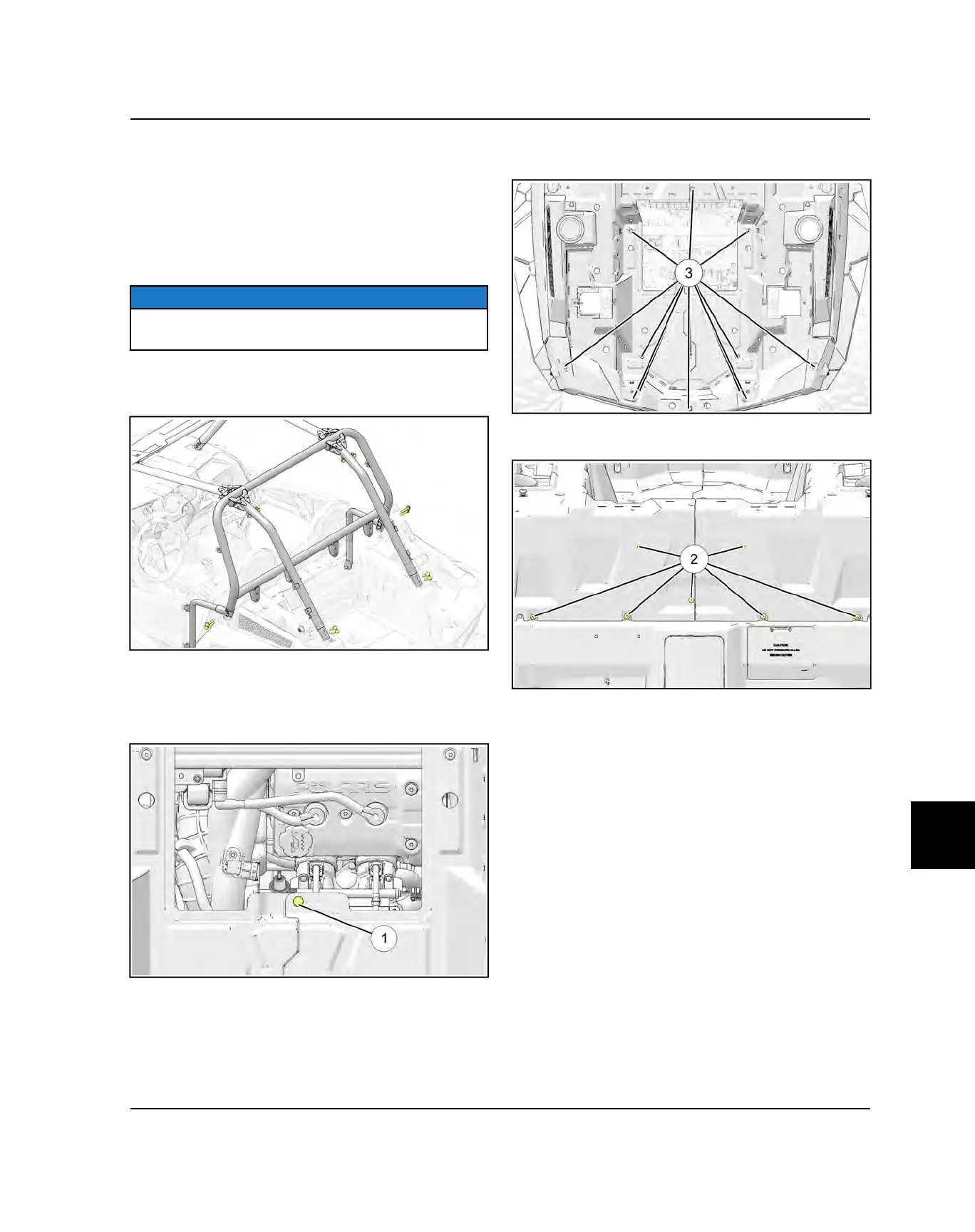

CARGO BOX ASSEMBLY REMOVAL
1. Remove both seats.
2. Remove the PVT pre-filter (driver side) and air intake
pre-filter (passenger side) assembly.
3. Remove the T-25 Torx screw retaining each shock
reservoir hose cover and remove the cover.
4. Loosen the shock reservoir clamps and maneuver the
reservoir through the hole in the box.
NOTE
Do NOT let the reservoir hang by the hose. Use a wire
or string to restrain the reservoir.
5. Remove the four bolts retaining each rear cab frame
and remove it from the vehicle. Remove the bolts
retaining the hip bolsters to the cab frame hoop.
6. Remove the eight fasteners retaining the rear cab
frame to the frame and to the front cab frame.
Remove the rear cab frame from the vehicle.
7. Remove the engine access panel and the panel
locking pin
q
.
8. Remove the 15 Torx fasteners
e
and 2 plastic rivets
in the bed of the cargo box.
9. Remove the seven T-40 Torx screws
w
on the cab
side of cargo box.
10.Remove the cargo box half from the vehicle.
BODY / FRAME
