9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

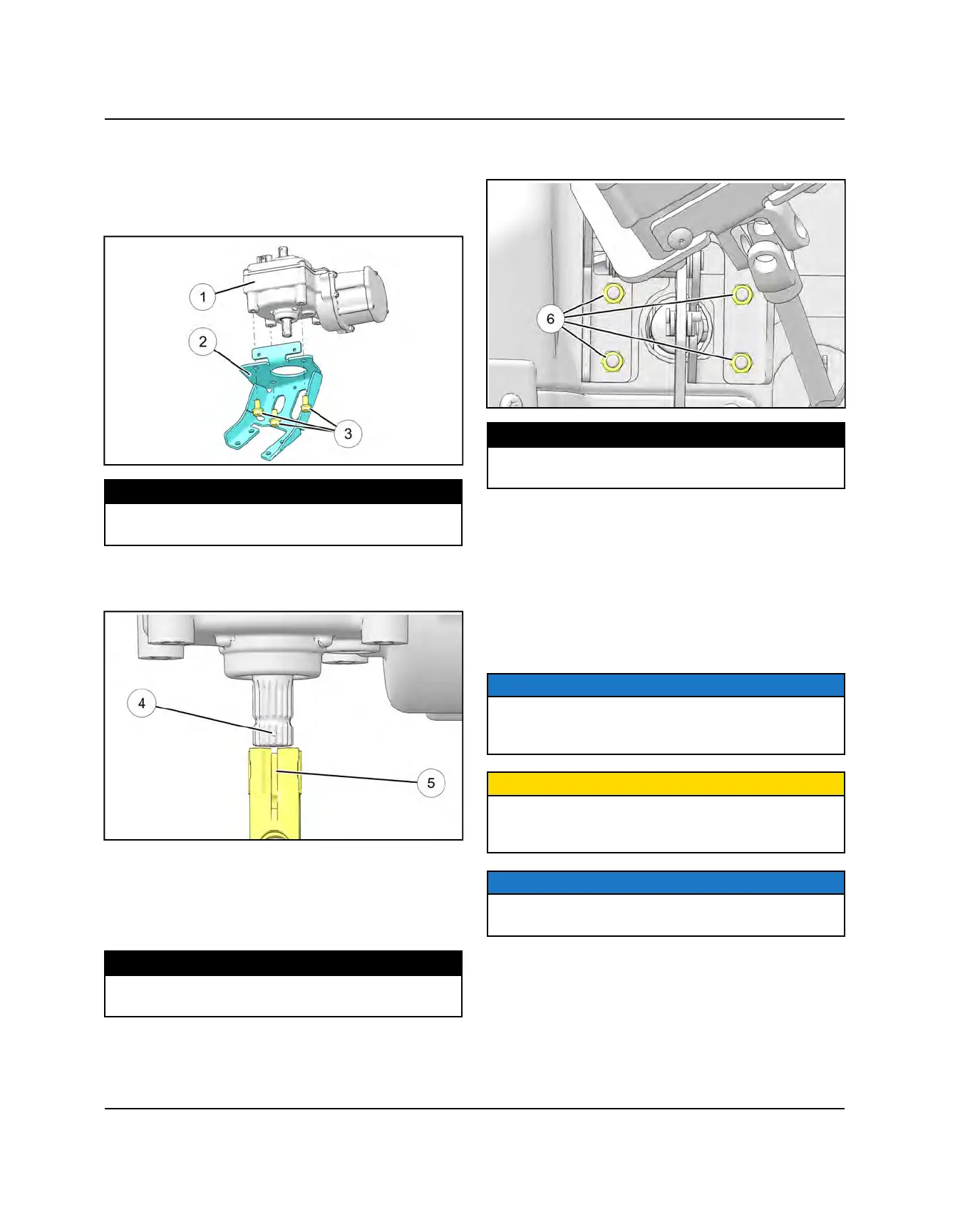

POWER STEERING UNIT INSTALLATION
1. If the power steering unit
q
was removed from the
mount bracket
w
, reinstall it prior to vehicle
installation. Torque the mounting bolts
e
to
specification.
TORQUE
Power Steering Mounting Bolts:
30 ft-lb (41 Nm)
2. Install the power steering unit into the vehicle and
align the skip-tooth spline on the power steering stub
shaft with the opening in the lower steering shaft.
3. Place the power steering mount bracket over the top
of the brake pedal mount studs and finger tighten the
four nuts.
4. Position the lower steering shaft on the power
steering unit stub shaft and install new fasteners.
Torque to specification.
TORQUE
Steering Shaft to EPS Unit Pinch Bolt:
25 ft-lb (34 Nm)
5. Torque the four mount bracket nuts
y
to
specification.
TORQUE
Power Steering Unit Mount Bracket Nuts:
16 ft-lb (22 Nm)
6. Proceed to Upper Steering Shaft Installation, page
8.8.
7. Vehicles equipped with Dynamix suspension having a
steering shaft, EPS unit, steering rack, or tie rod
removed/adjusted/disconnected MUST have Steering
Angle Sensor Centering procedure performed once
everything is reinstalled. Refer to Steering Angle
Sensor Centering (Dynamix), page 11.31.
UPPER STEERING SHAFT INSTALLATION
NOTE
If steering wheel was removed, follow this procedure to
ensure the upper steering shaft is properly positioned
on the power steering stub shaft.
CAUTION
Striking the steering wheel or steering shaft while
installed in the vehicle can permanently damage the
EPS unit and cause a Power Steering Fault.
NOTE
Be sure upper steering shaft hardware is positioned
correctly.
STEERING / SUSPENSION
