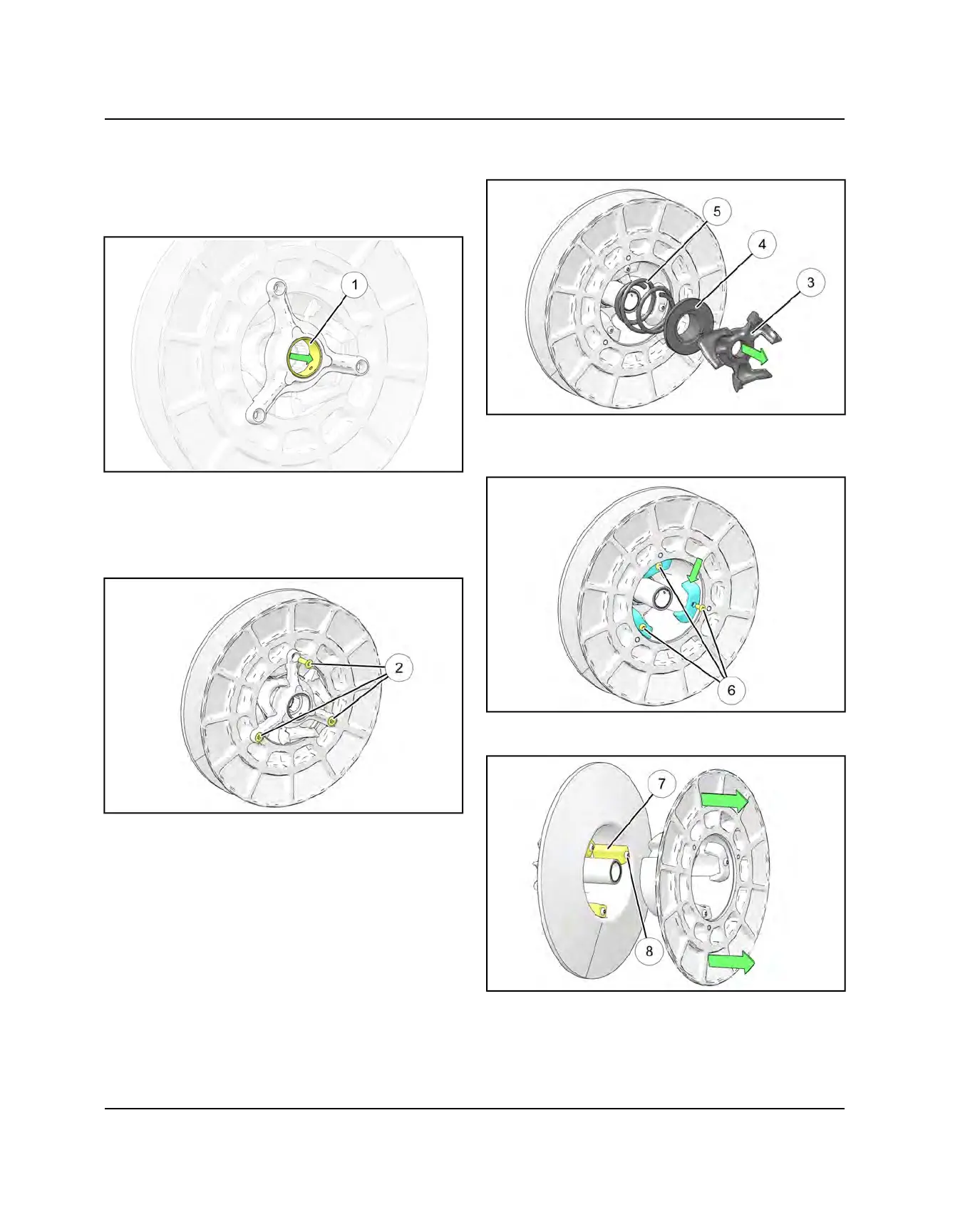

DRIVEN CLUTCH DISASSEMBLY /
INSPECTION
1. Inspect the bearing
q
on the helix cover. The bearing
should not have deep scratches or show excessive
wear.
2. Before taking the clutch apart, be sure to mark the
stationary sheave, moveable sheave, helix and cover
with a reference mark.
3. Place the driven clutch in a clutch compression tool.
4. Remove the three fasteners
w
retaining the driven
clutch cover.
5. Lift and remove the helix
e
, limiter spacer
r
and
spring
t
from the driven clutch.
6. Inspect the buttons surface for wear / cracking. If
replacement is required, remove the fasteners
y
retaining the buttons to the driven clutch.
7. Separate the moveable sheave from the stationary
sheave.
8. Inspect the sliders
u
in the stationary sheave for
wear and cracking. If replacement is required,
remove the fasteners
i
retaining the sliders to the
sheave.
PVT SYSTEM
