7.38
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
WHEEL HUBS

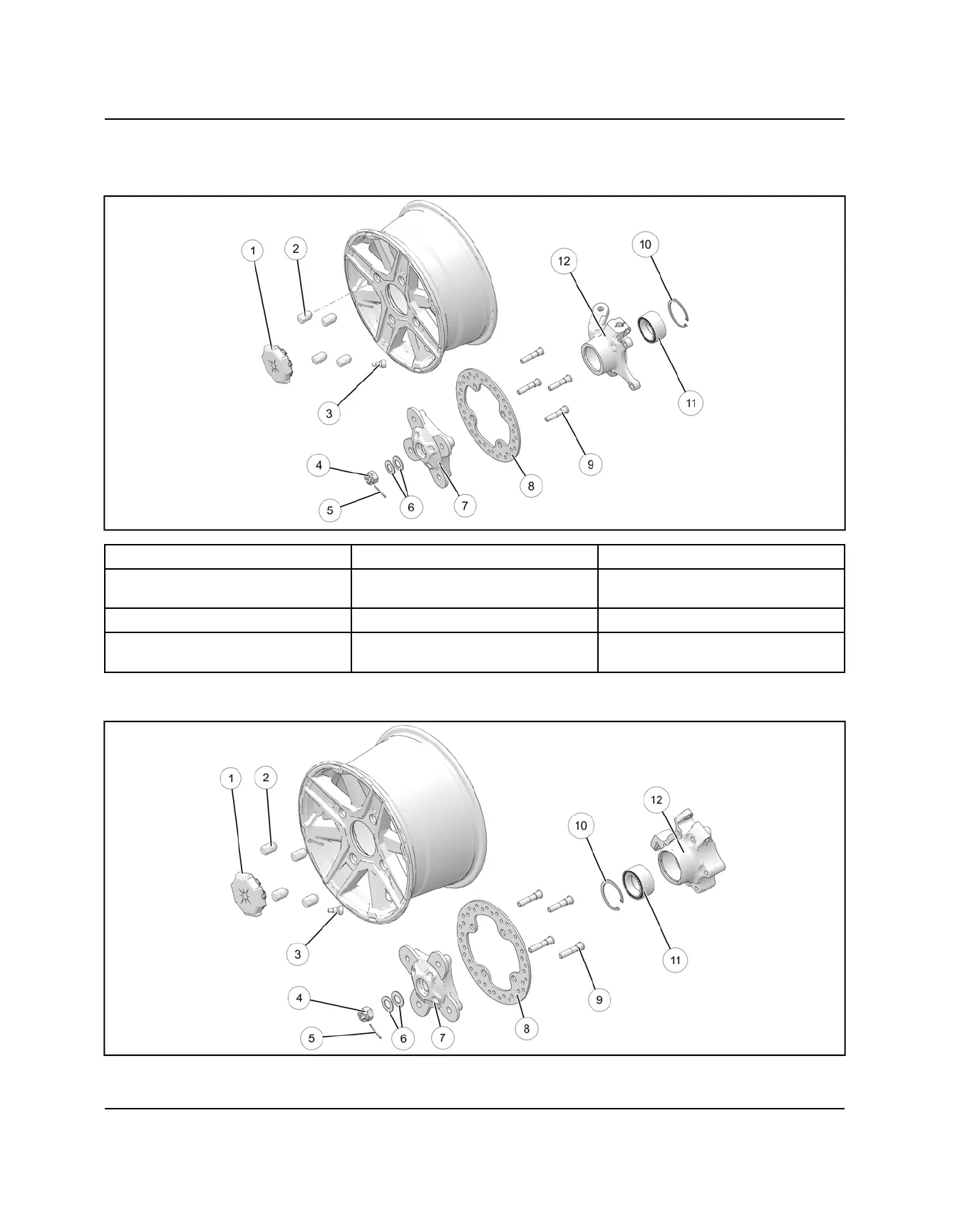

FRONT HUB ASSEMBLY VIEW
q
Wheel Cap
t
Cotter Pin
o
Studs
w
Wheel Lug Nuts
120 ft-lbs (163 Nm)
y
Washers
a
Snap Ring
e
Valve Stem
u
Wheel Hub s
Wheel Bearing
r
Hub Castle Nut
180 ft-lbs (244 Nm)
i
Brake Disc d
Bearing Carrier
REAR HUB ASSEMBLY VIEW
FINAL DRIVE
