8.56
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

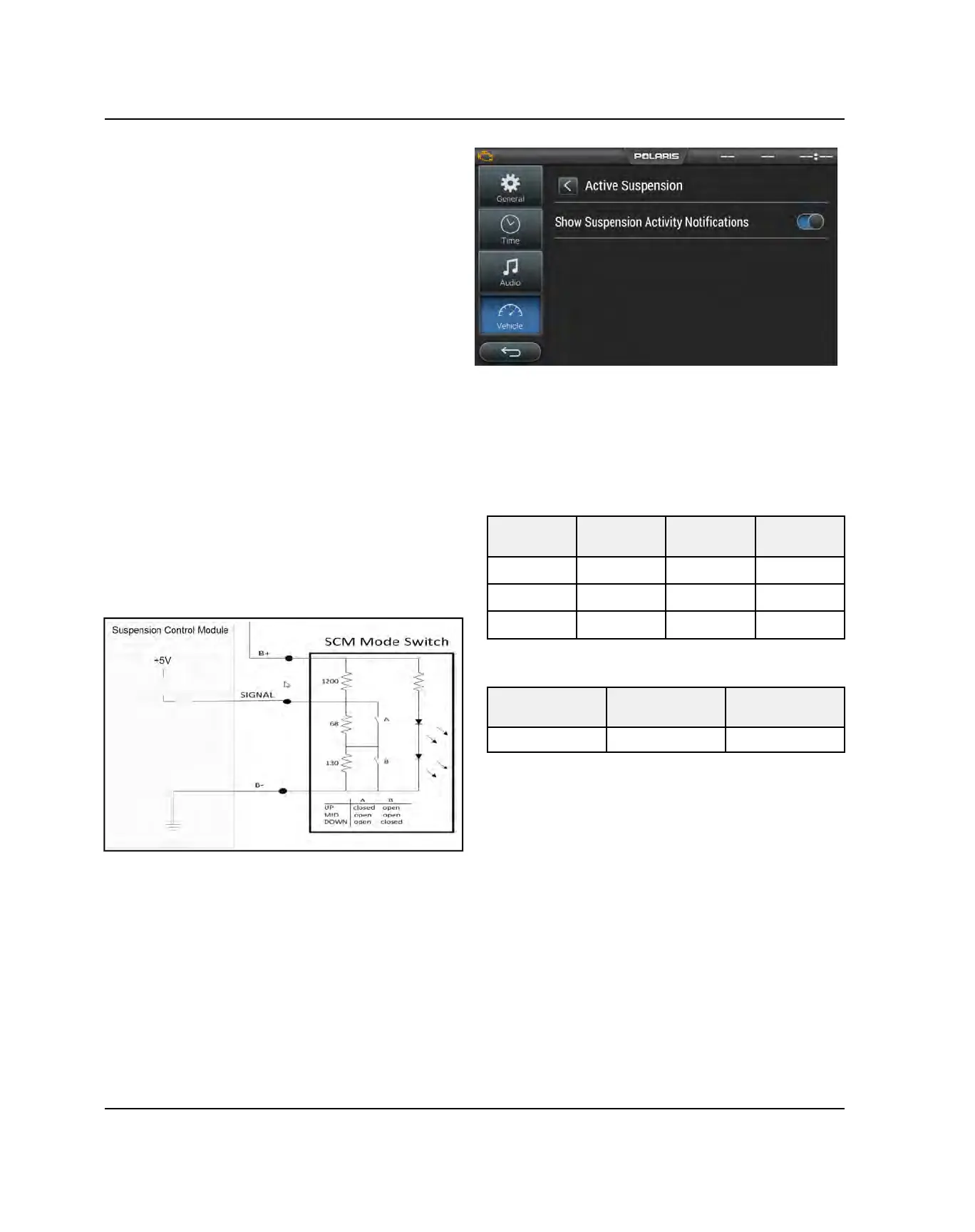

Suspension activity notifications can be turned enabled/
disabled from the vehicle the setting menu.
PROCESSING CAPABILITY
DYNAMIX™ Active Suspension controls current to the shock valve 1000 times per second, performs vehicle dynamics
calculations 200 times per second, and can actuate a shock from soft to firm approximately 20 times per second.
SUSPENSION MODE SWITCH (DYNAMIX
MODELS)
For more information on the Dynamix suspension
system, refer to the Steering / Suspension chapter -
Dynamix Overview, page 8.52
SWITCH
POSITION
CONTACT
A
CONTACT
B
PINS 1 TO
6
Comfort Closed
Open
130 Ω
Sport Open Open
198 Ω
Firm
Open
Closed 68 Ω
The following resistance tests can be performed on the
mode switch regardless of what position the switch is in:
SWITCH
POSITION
PINS 1 TO 7 PINS 6 TO 7
All Positions 4800 Ω 1200 Ω
STEERING / SUSPENSION
