4.16
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
FUEL TANK / PUMP

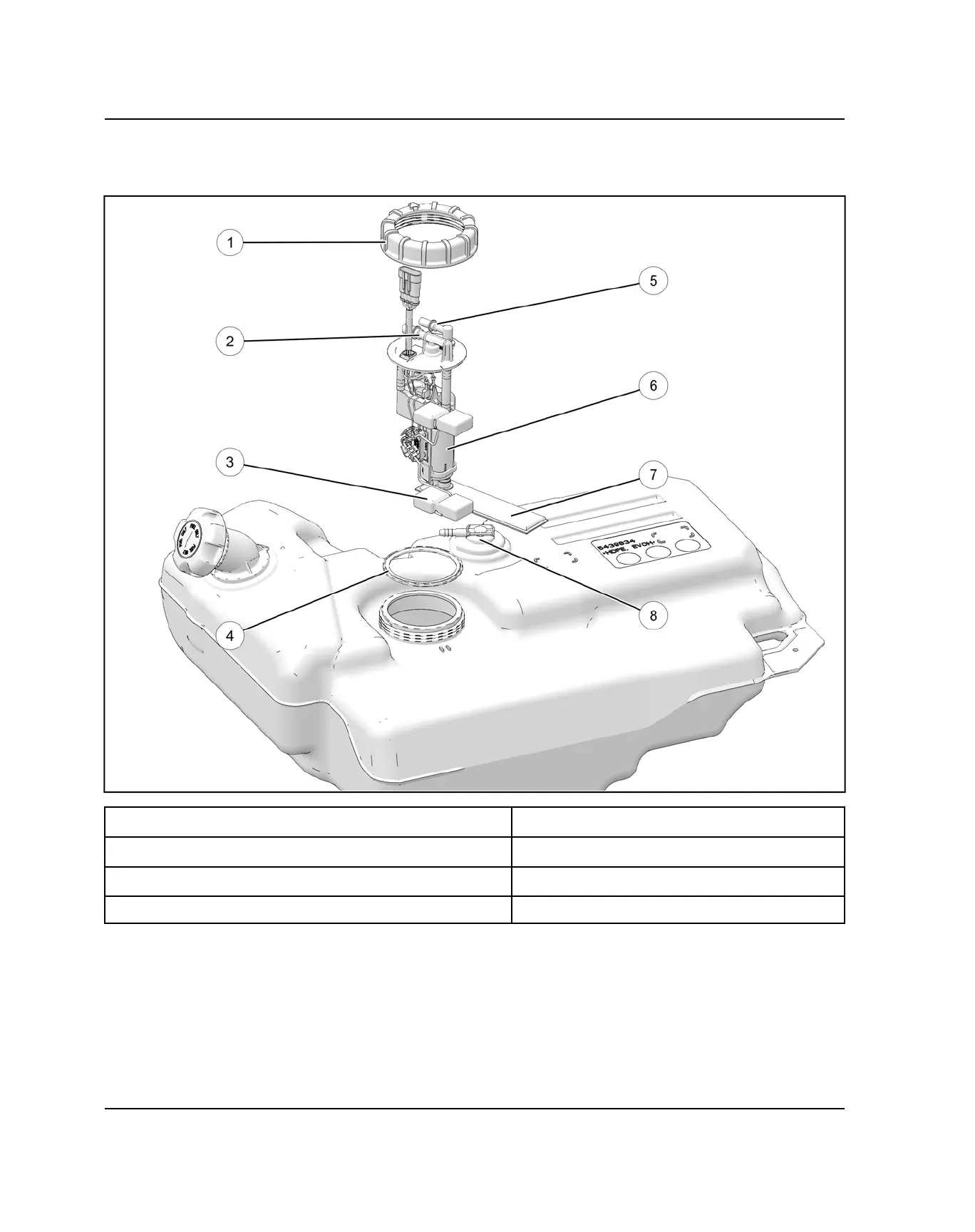

FUEL TANK ASSEMBLY VIEW
q
PFA Nut 70 ft-lbs (95 Nm)
t
Fuel Return
w
Fuel Supply
y
Fuel Pump
e
Fuel Sender Float
u
Fuel Pickup Filter (not serviceable)
r
PFA Gasket
i
Fuel Tank Vent
