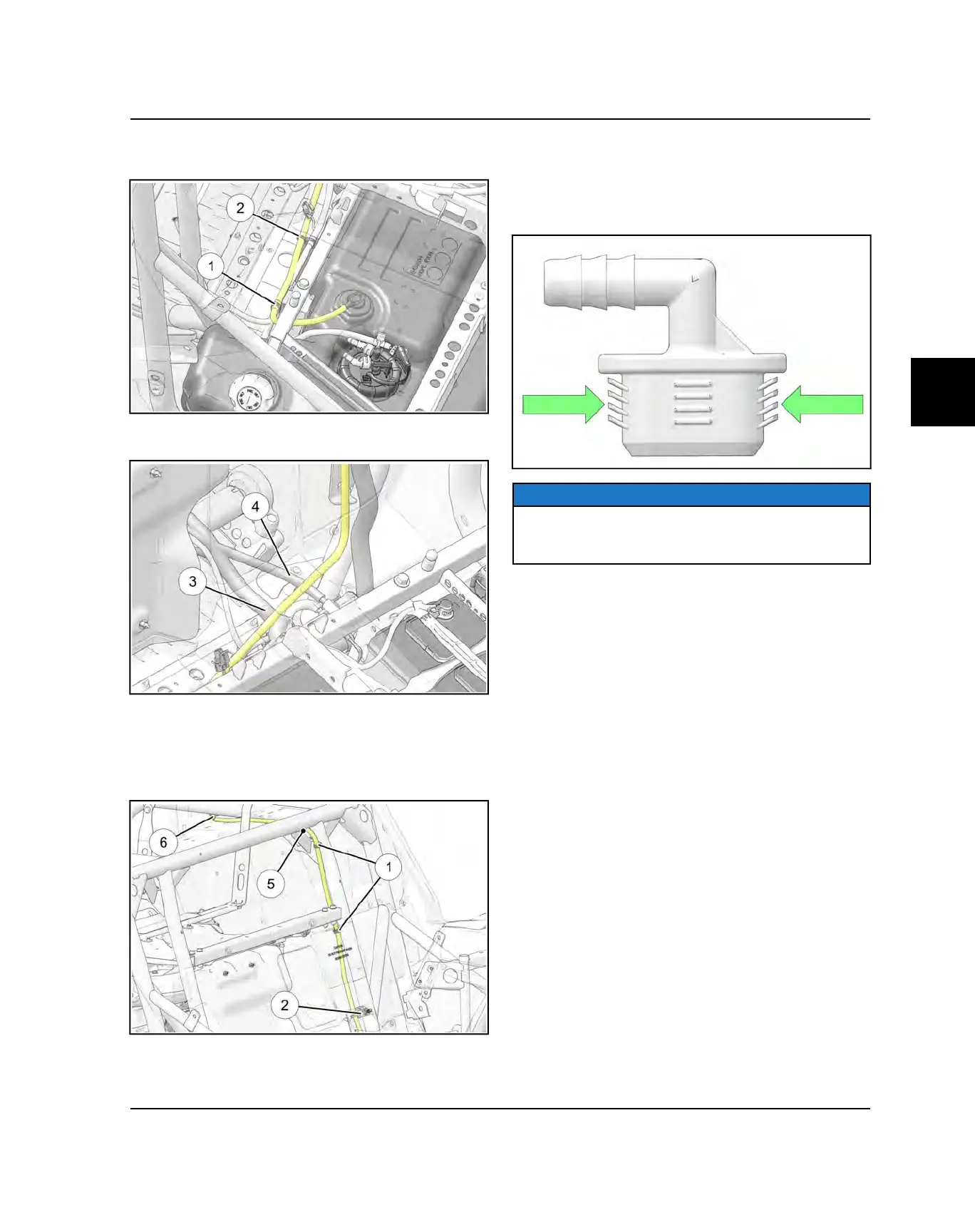

1. Retain the fuel vent line behind the fuel tank with a
hinge clip
q
and a panduit strap
w
.
2. Route the fuel vent line OVER the electrical harness
e
and OVER the starter solenoid cables
r
.
3. Route the fuel vent line through the panduit strap
w
to the right side of the access panel. Retain the vent
line in the two hinge clips
q
on the frame.
4. Feed the vent line through the shock mount bracket
opening
t
and attach the vent line to the fitting in the
frame
y
.
VENT LINE TERMINATION FITTING
This fitting should be inspected and tested using a Mity
Vac™ to ensure proper venting. Connect the Mity Vac to
the fitting and give it 5 pumps. The gauge should return
to 0 immediately or there is an obstruction.
NOTE
If the vent line fitting is removed from the frame, it must
be replaced. The ears on the clip (arrows) will not hold
properly once it is removed.
