Polaris RZR XP Turbo - Exhaust Assembly View

3.14
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

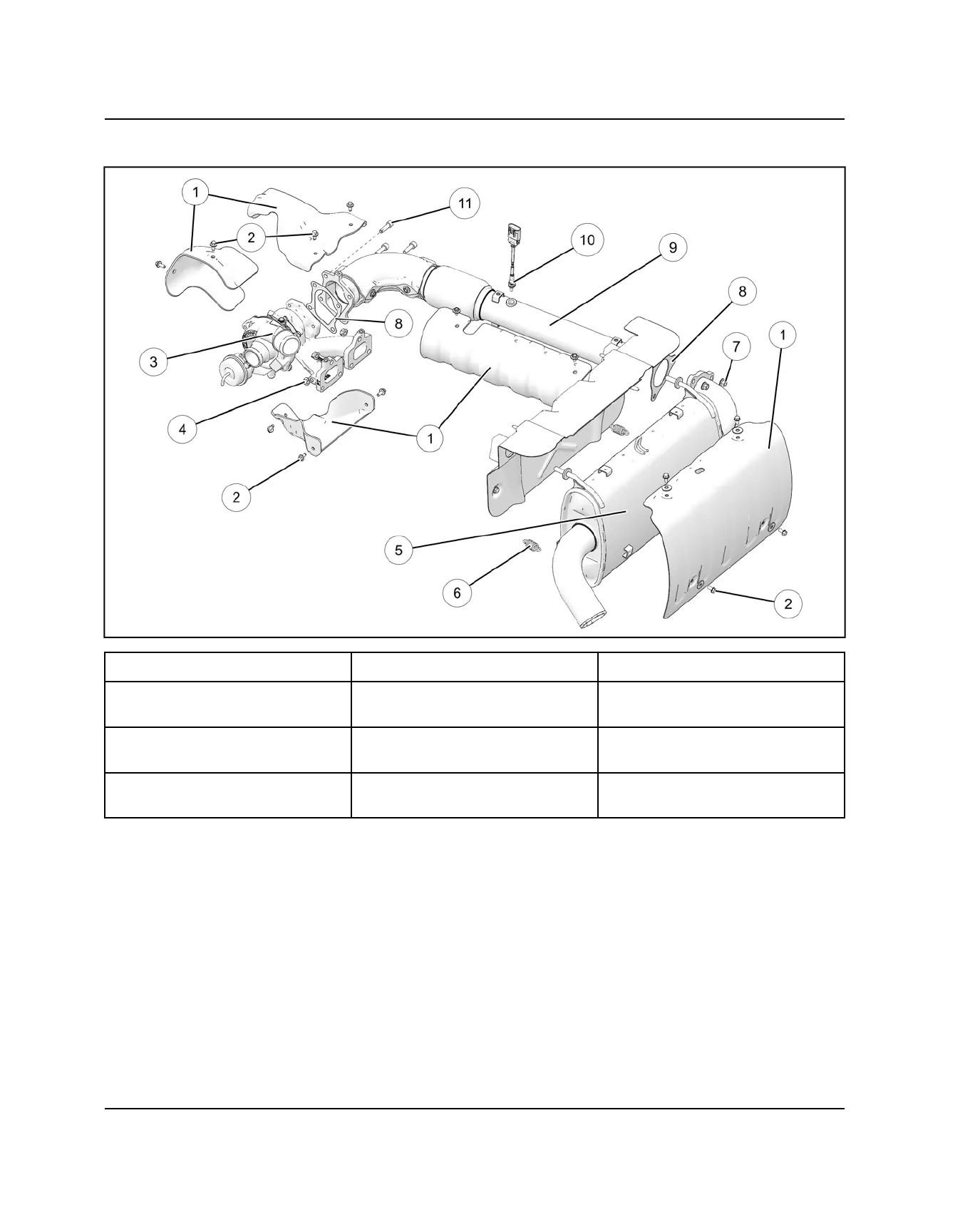

EXHAUST ASSEMBLY VIEW
q
Heat Shield
t
Muffler
o
Exhaust Pipe
w
Heat Shield Fasteners
8 ft-lb (11 Nm)
y
Muffler Spring
a
Oxygen Sensor
13 ft-lb (18 Nm)
e
Turbo / Head Pipe Assembly
u
Exhaust Pipe Nuts
18 ft-lb (24 Nm)
s
Exhaust Pipe Fasteners
18 ft-lb (24 Nm)
r
Head Pipe Fasteners
18 ft-lb (24 Nm)
i
Exhaust Gasket
ENGINE / COOLING SYSTEM
