BRAKE SYSTEM OVERVIEW

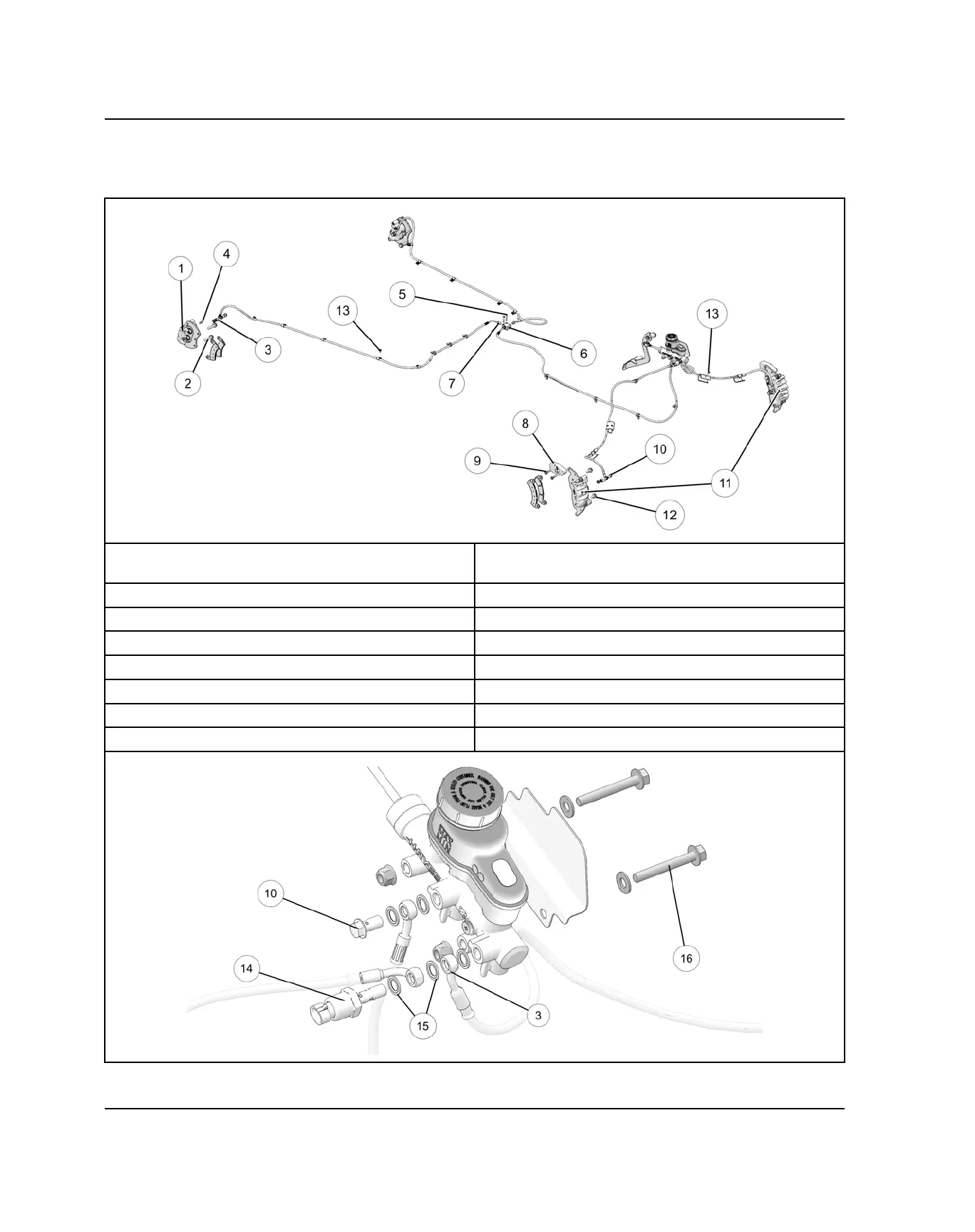

BRAKE SYSTEM VIEW
q
Rear Brake Caliper
o
Scraper Bolts
7 ft-lb (11 Nm)
w
Rear Caliper Bolts 46 ft-lbs (62 Nm)
a
Banjo Bolt 15 ft-lbs (20 Nm)
e
Banjo Fitting
s
Front Brake Caliper
r
Brake Bleeder Screw 48 in-lb (5 Nm)
d
Front Caliper Bolts 30 ft-lbs (42 Nm)
t
Brake Junction Block Fasteners 35 in-lb (4 Nm)
f
Brake Line Retainer 35 in-lb (4 Nm)
y
Brake Junction Block g
Brake Pressure Switch 15 ft-lbs (20 Nm)
u
Brake Line Fitting 15 ft-lbs (20 Nm)
h
Sealing Washer
i
Brake Disc Scraper
j
Master Cylinder Mounting Bolts 23 ft-lbs (31 Nm)
