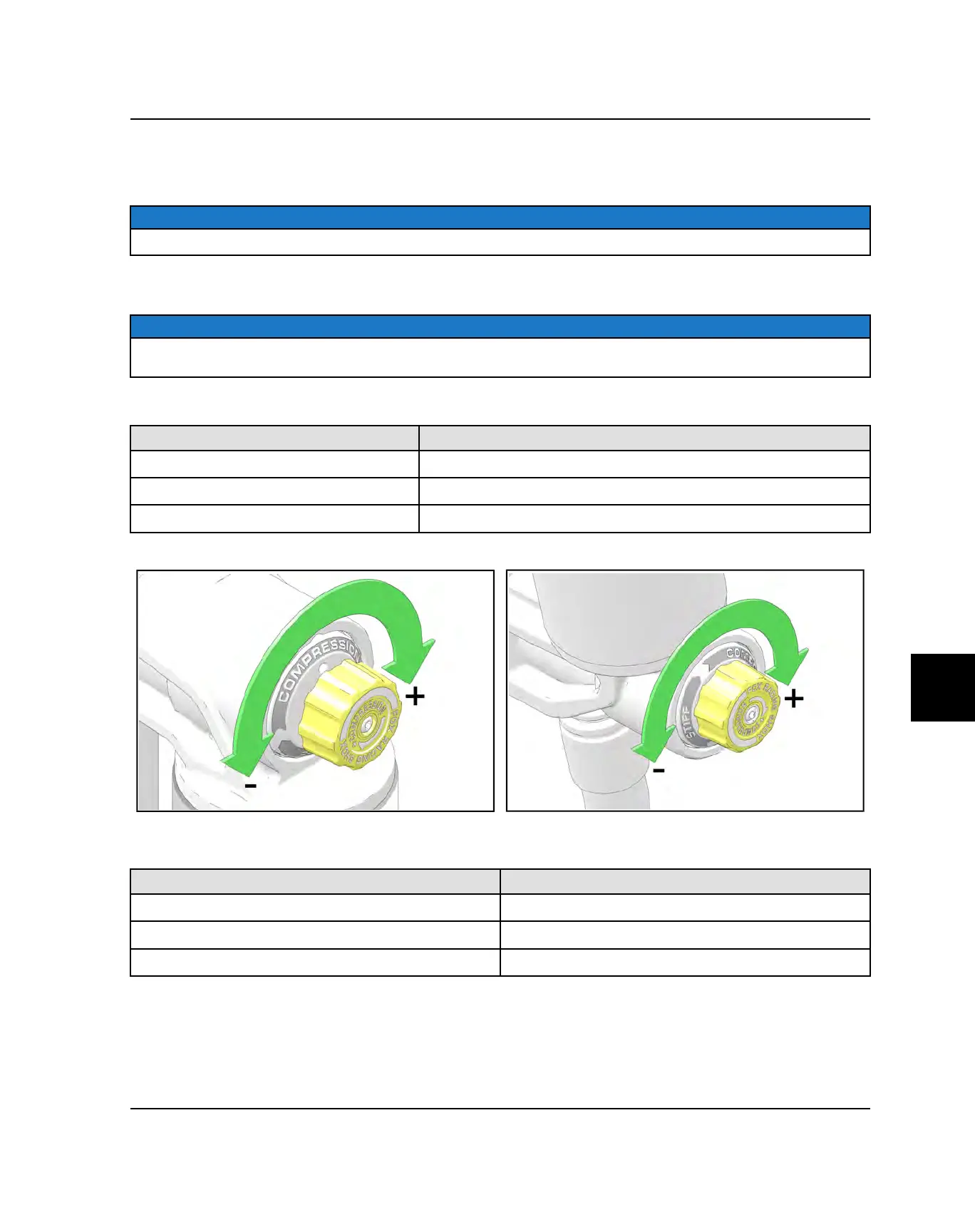

SHOCK COMPRESSION ADJUSTMENT (FOX®)
The compression damping adjustment is located on the shock ‘Piggyback’ reservoir of each shock. Damping
adjustments can be made without using any tools.
NOTE
When the adjuster knob is turned counter-clockwise until it stops, the damping is in the fully open position (softest).
Turn the adjuster knob clockwise to increase compression damping. Turn the adjuster knob counter-clockwise to
decrease compression damping.
NOTE
The recommended factory setting for the front and rear shocks are provided in the following compression adjustment
tables.
FOX 2.5″ Front Shock
SETTING COMPRESSION DAMPING
Softest
Full counter-clockwise position
Factory 12 clicks CCW from full firm setting/full clockwise
Firmest
Full clockwise position
FRONT
REAR
FOX 3.0″ Rear Shock
SETTING COMPRESSION DAMPING
Softest
Full counter-clockwise position
Factory 12 clicks CCW from full firm setting/full clockwise
Firmest
Full clockwise position
The rear shock adjuster can be found on the remote reservoir. Clockwise will increase damping and counter-clockwise
will decrease damping.
