Polaris RZR XP Turbo User Manual

3
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
3.43

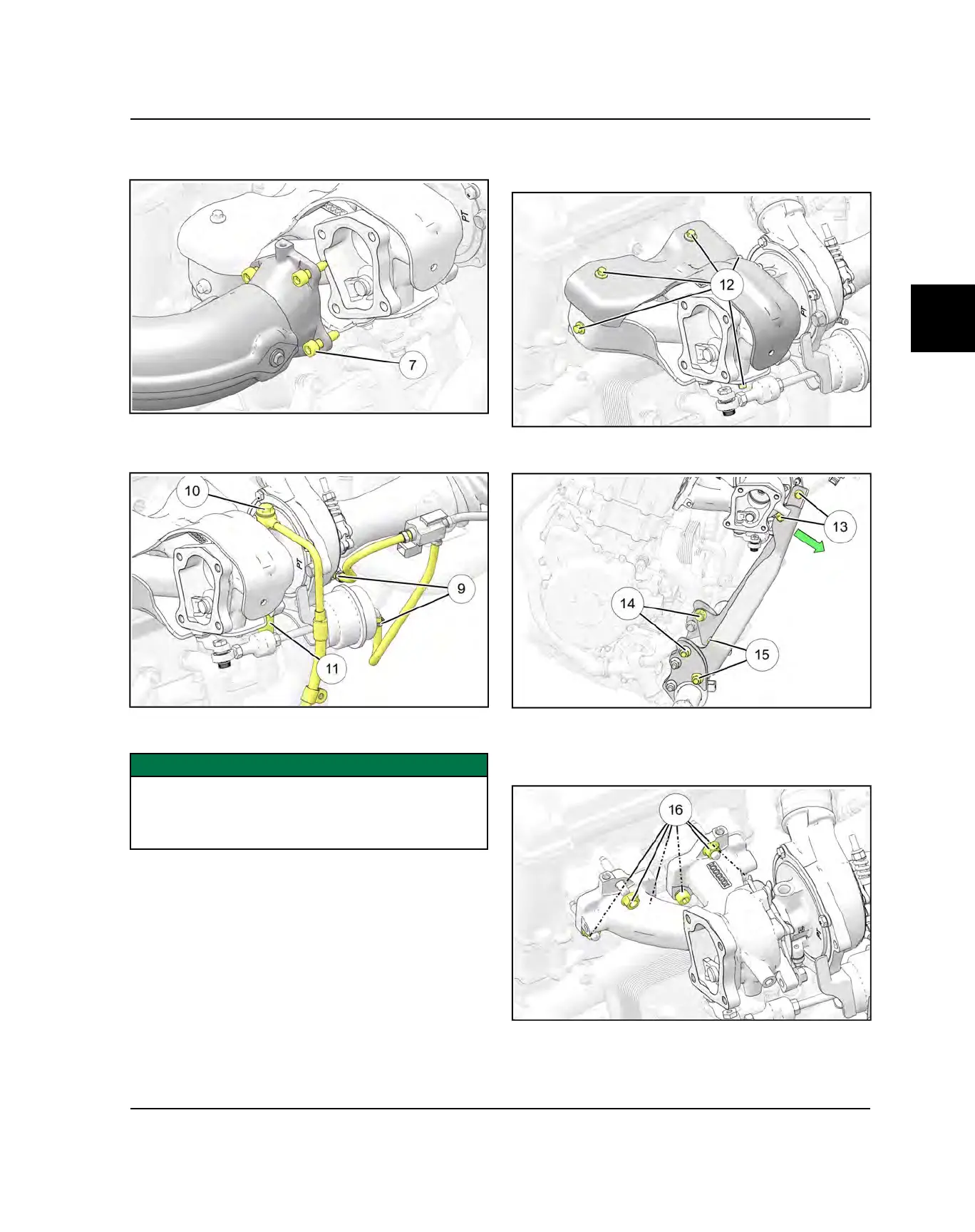

14.Remove the four fasteners
u
retaining the exhaust
pipe to the turbocharger.
15.Remove the exhaust pipe from the chassis.
16.Remove the two hoses
o
from the turbo going to the
boost control valve.
17.Remove the banjo bolt
a
retaining the oil inlet hose
and remove the oil drain hose
s
.
IMPORTANT
The oil line sealing washers MUST be replace any time
the oil line/fitting is removed. Use only the
recommended washers shown in the Polaris Electronic
Parts Catalog.
18.Remove the fasteners
d
retaining the heat shields to
the head pipe / turbo assembly and remove the
shields.
19.Remove the fasteners
f
retaining the turbo to the
mounting bracket.
20.Remove the lower turbo bracket fasteners
g
and
remove the bracket from the vehicle.
21.Remove the six fasteners
j
retaining the head pipe
to the cylinder head.
22.Slide the head pipe off the studs and remove the
head pipe/turbo from the vehicle.
ENGINE / COOLING SYSTEM
